2003 Suzuki VZ800 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2003 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

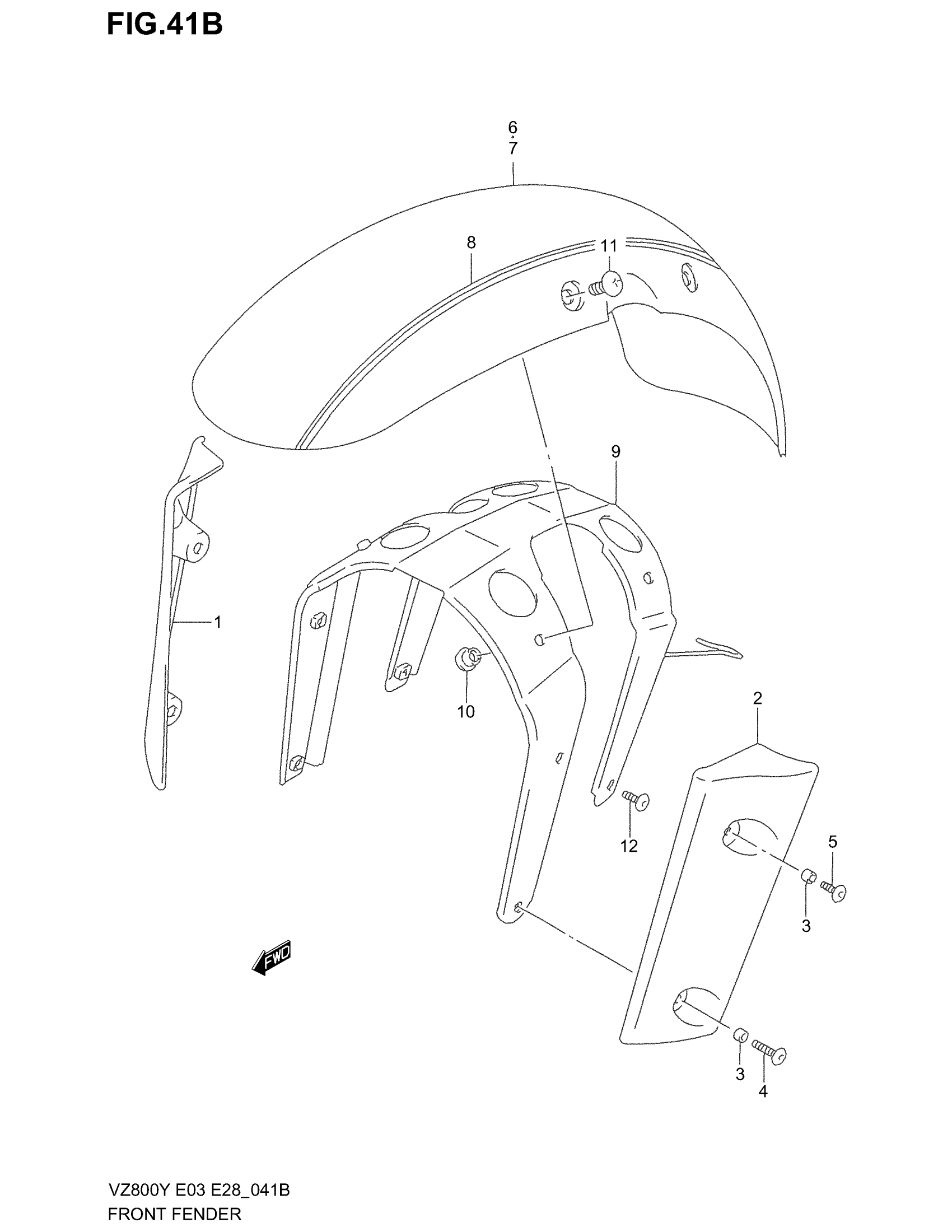

2003 Suzuki VZ800 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,FR FORK S This part replaces 51881-48E00.

51881-48E01

1
Out of stock

2

COVER,FRONT FOR This part replaces 51882-48E00.

51882-48E01

1
Out of stock

3

SPACER (6.1X8X3.5)

09180-06245

4
Out of stock

4

SCREW, LOWER (6X20)

09139-06028

2

$3.58

In stock

5

SCREW, UPPER (6X12)

09139-06027

2
Out of stock

6

FENDER, FRONT (BLACK) This part replaces 53111-48E00-33J.

53111-48E10-33J

1
Out of stock

7

FENDER, FRONT

53110-48E80-BP8

1
Out of stock

7

FENDER, FRONT | E28; Includes Item(s) 8 - 8

53110-48E80-M9U

—
Out of stock

8

TAPE SET, FRONT FENDER

68150-48E30-BU3

1
Out of stock

8

TAPE SET, FRONT FENDER | E28

68150-48E30-BU2

—
Out of stock

9

BRACE, FRONT FENDER | Includes Item(s) 10

53120-48E00

1
Out of stock

10

NUT

53122-33D00

4
Out of stock

11

SCREW (6X12)

09139-06027

4
Out of stock

12

SCREW (6X16)

09139-06030

2
Out of stock
← Front Fender Label →
