2003 Suzuki VZ800 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2003 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

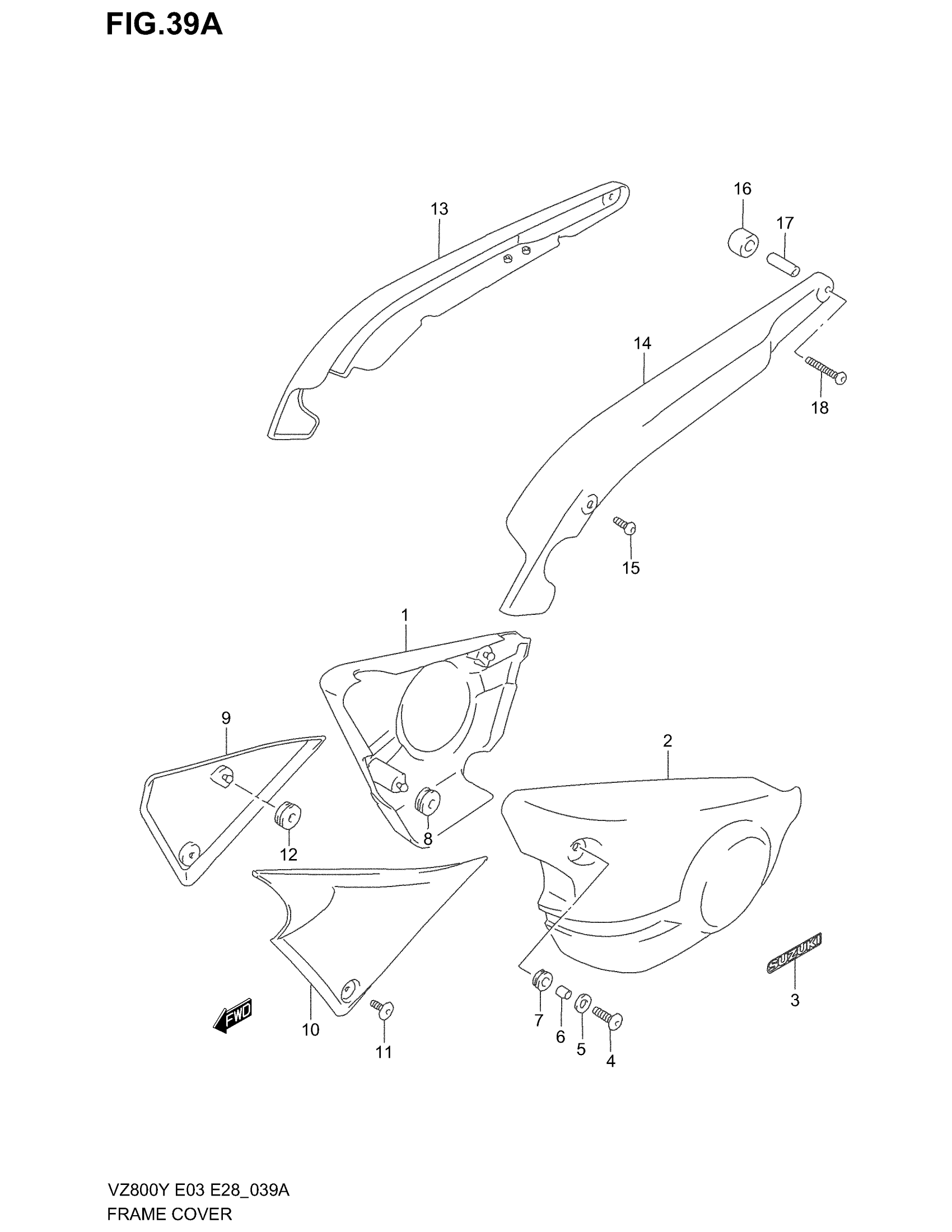

2003 Suzuki VZ800 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH

47111-48E41

1
Out of stock

1

COVER, FRAME RH | E33

47111-48E61

1
Out of stock

2

COVER, FRAME LH

47211-48E30

1
Out of stock

3

EMBLEM,"SUZUKI" This part replaces 68271-34A00-20G.

68271-34A01-20G

2
Out of stock

4

SCREW (6X16)

09139-06030

2
Out of stock

5

WASHER (6.5X18X1.0)

09160-06028

2
Out of stock

6

SPACER (6.5X9X9)

09180-06263

2
Out of stock

7

CUSHION

09320-09016

2
Out of stock

8

CUSHION

09320-08018

4
Out of stock

9

COVER, FRAME HEAD RH

47511-48E00

1
Out of stock

10

COVER, FRAME HEAD LH

47521-48E00

1
Out of stock

11

SCREW (6X16)

09139-06039

2
Out of stock

12

CUSHION

09320-08018

2
Out of stock

13

COVER, FRAME REAR RH

47120-48E00

1
Out of stock

14

COVER, FRAME REAR LH

47220-48E00

1
Out of stock

15

BOLT, FRONT

09106-08140

2
Out of stock

16

CUSHION, REAR

47129-48E00

2
Out of stock

17

SPACER

09180-08197

2
Out of stock

18

BOLT This part replaces 09106-08141.

09106-08156

2
Out of stock
