2003 Suzuki VZ800 Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2003 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

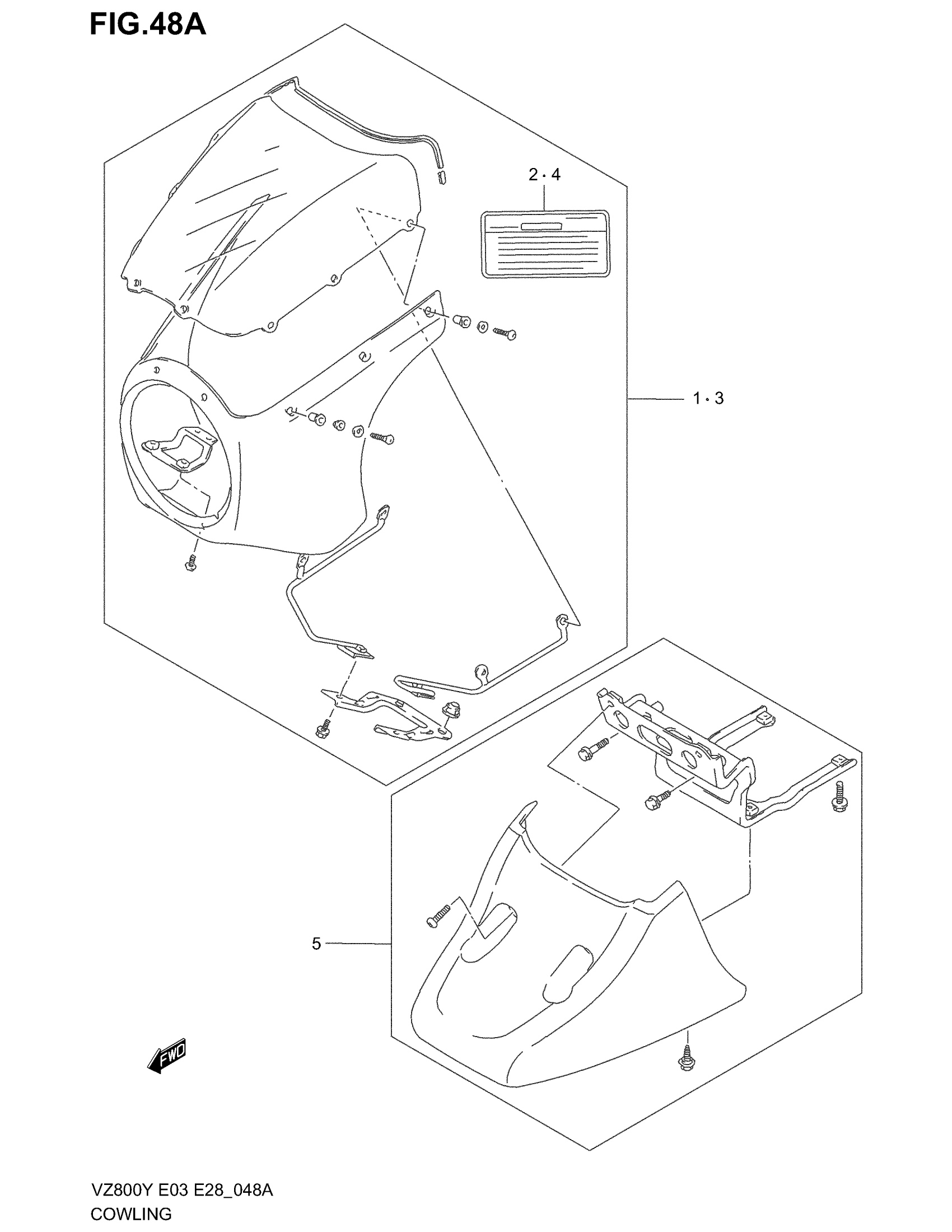

2003 Suzuki VZ800 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING SET, BODY (BLACK) | MODEL X FOR E9N This part replaces 94400-48822-019.

94400-48823-33J

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL X FOR G7U; Includes Item(s) 2 - 2 This part replaces 94400-48822-Y0W.

94400-48821-Y0W

1
Out of stock

2

LABEL,SCREEN | MODEL X This part replaces 68612-48B00.

68922-14F01

1
Out of stock

2

LABEL, SCREEN | MODEL X This part replaces 68612-48B10.

68922-14F30

1
Out of stock

2

LABEL, SCREEN (GERMAN) | MODEL X This part replaces 68612-48B20.

68922-14F20

1
Out of stock

3

COWLING SET, BODY (BLACK) | MODEL Y FOR 33J

94400-48823-33J

1
Out of stock

3

COWLING SET, BODY (BLUE) | MODEL Y FOR BP8

94400-48823-YC2

1
Out of stock

3

COWLING SET, BODY (RED) | MODEL Y E28 FOR M9U; Includes Item(s) 4 - 4

94400-48823-19A

—
Out of stock

4

LABEL,SCREEN | MODEL Y This part replaces 68922-14F00.

68922-14F01

1
Out of stock

4

LABEL, SCREEN (FRANCH) | MODEL Y

68922-14F30

1
Out of stock

4

LABEL, SCREEN (GERMAN) | MODEL Y

68922-14F20

1
Out of stock

5

COWLING SET, UNDER (BLACK) | MODEL X FOR E9N This part replaces 94490-48840-019.

94490-48840-33J

1
Out of stock

5

NO DESCRIPTION AVAILABLE | MODEL X FOR G7U This part replaces 94490-48840-Y0W.

94490-48821-Y0W

1
Out of stock

5

COWLING SET, UNDER (BLACK) | MODEL Y FOR 33J

94490-48840-33J

1
Out of stock

5

COWLING SET, UNDER (BLUE) | MODEL Y FOR BP8

94490-48840-YC2

1
Out of stock

5

COWLING SET, UNDER (RED) | MODEL Y E28 FOR M9U

94490-48840-19A

—
Out of stock
