2003 Suzuki VZ800 Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2003 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

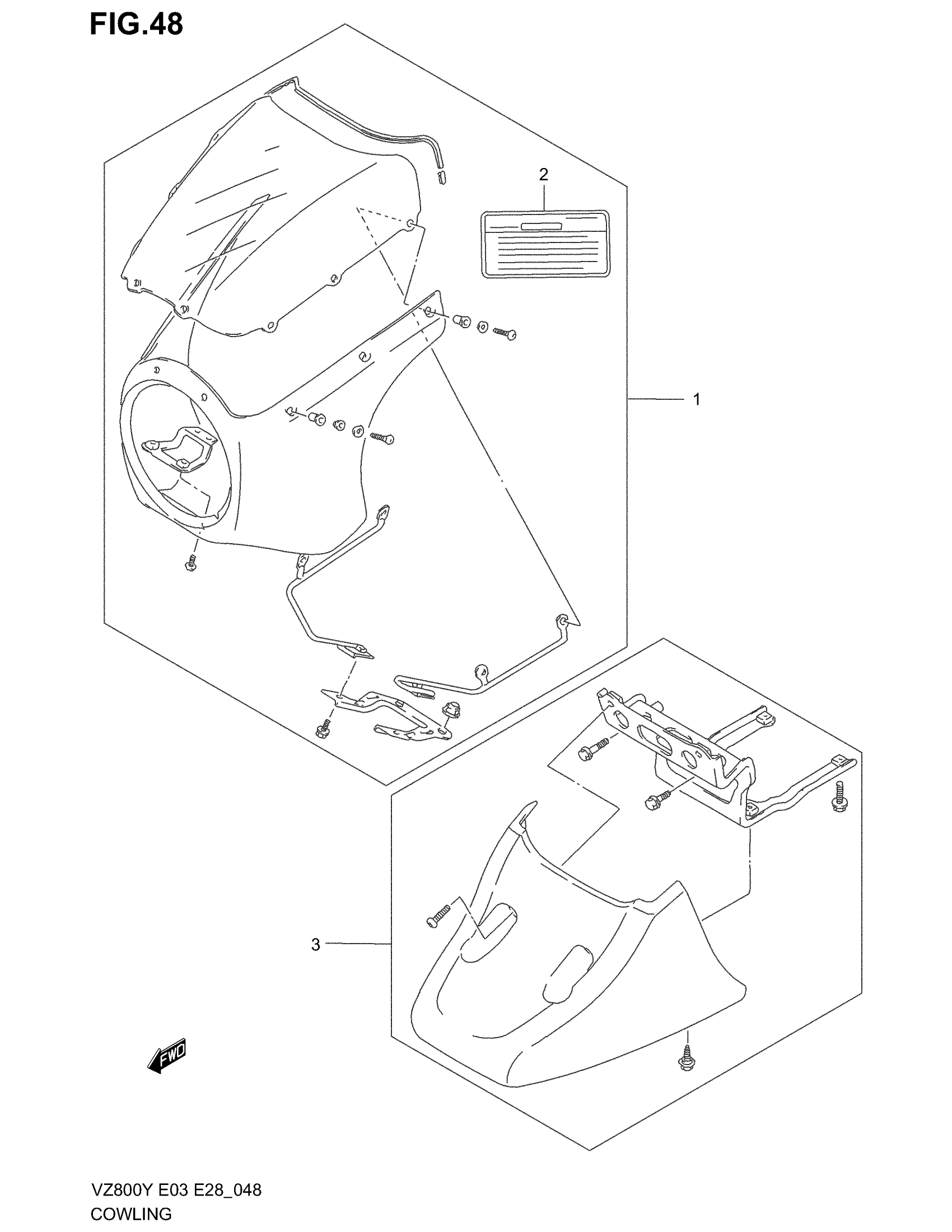

2003 Suzuki VZ800 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL V FOR E9N This part replaces 94400-48820-Y98.

94400-48821-Y98

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL V FOR G9Y This part replaces 94400-48820-Y0W.

94400-48821-Y0W

1
Out of stock

1

COWLING SET, BODY (MAROON) | MODEL W FOR J8K

94400-48821-Y4M

1
Out of stock

1

COWLING SET, BODY (WHITE) | MODEL W FOR J4M; Includes Item(s) 2 - 2

94400-48821-10R

1
Out of stock

2

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

1
Out of stock

2

LABEL, SCREEN This part replaces 68612-48B10.

68922-14F30

1
Out of stock

2

LABEL, SCREEN (GERMAN) This part replaces 68612-48B20.

68922-14F20

1
Out of stock

3

NO DESCRIPTION AVAILABLE | MODEL V FOR E9N This part replaces 94490-48820-Y98.

94490-48821-Y98

1
Out of stock

3

NO DESCRIPTION AVAILABLE | MODEL V FOR G9Y This part replaces 94490-48820-Y0W.

94490-48821-Y0W

1
Out of stock

3

NO DESCRIPTION AVAILABLE | MODEL W FOR J8K This part replaces 94490-48821-Y4M.

94490-48840-Y4M

1
Out of stock

3

COWLING SET, UNDER (WHITE) | MODEL W FOR J4M

94490-48821-10R

1
Out of stock
