2003 Suzuki VZ800 Frame Diagram

← All diagrams

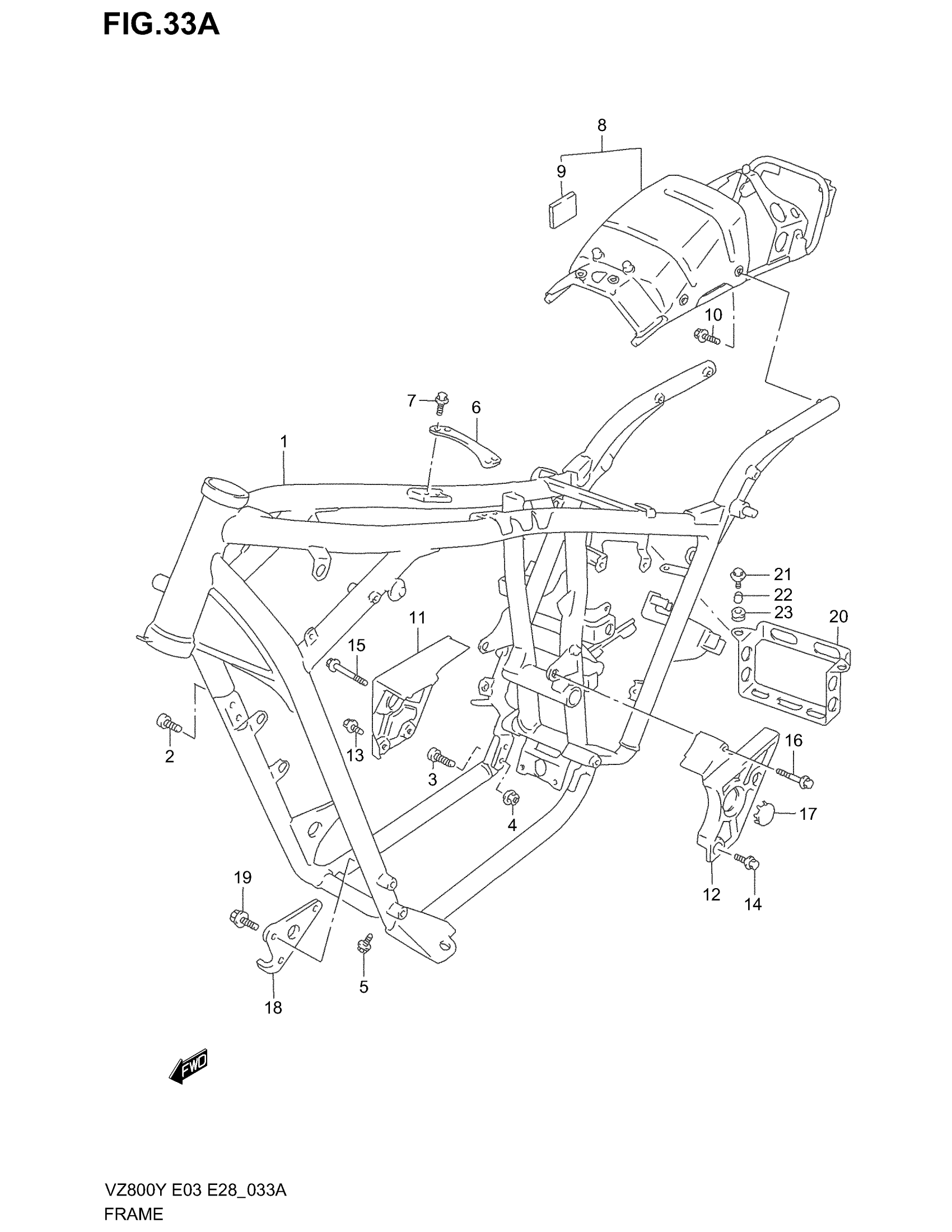

Find the part on the Frame diagram for your 2003 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki VZ800 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (BLACK)

41100-48EA0-019

1
Out of stock

2

BOLT This part replaces 07130-10253.

07130-1025B

2
Out of stock

3

BOLT This part replaces 07130-10353.

07130-1035B

2
Out of stock

4

NUT This part replaces 08319-31103.

08319-3110A

2
Out of stock

5

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

2
Out of stock

6

PLATE, FRAME BODY

41999-48E00

1
Out of stock

7

BOLT

09106-08140

4
Out of stock

8

BRACE, REAR FRAME | Includes Item(s) 9

41501-48E00

1
Out of stock

9

CUSHION

13719-84150

2
Out of stock

10

BOLT This part replaces 01551-08203.

01551-0820A

4
Out of stock

11

COVER, PIVOT RH

41961-48E10

1
Out of stock

12

COVER, PIVOT LH

41962-48E10

1
Out of stock

13

BOLT, PIVOT COVER DUMMY

09106-08128

2
Out of stock

14

BOLT, PIVOT COVER

41964-48E00

2
Out of stock

15

BOLT, PIVOT COVER FRONT RH

09106-08128

1
Out of stock

16

BOLT, PIVOT COVER UPPER LH

41965-48E00

1
Out of stock

17

CAP, PIVOT COVER

61222-38A01

1
Out of stock

18

PLATE, ENGINE MOUNT LH

41921-48E00

1
Out of stock

19

BOLT This part replaces 01580-10303.

01580-1030A

2
Out of stock

20

HOLDER, BATTERY

41540-48E00

1
Out of stock

21

BOLT (6X16)

09116-06006

2
Out of stock

22

SPACER

09180-06261

2
Out of stock

23

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

2
Out of stock
