2003 Suzuki VZ800 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2003 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

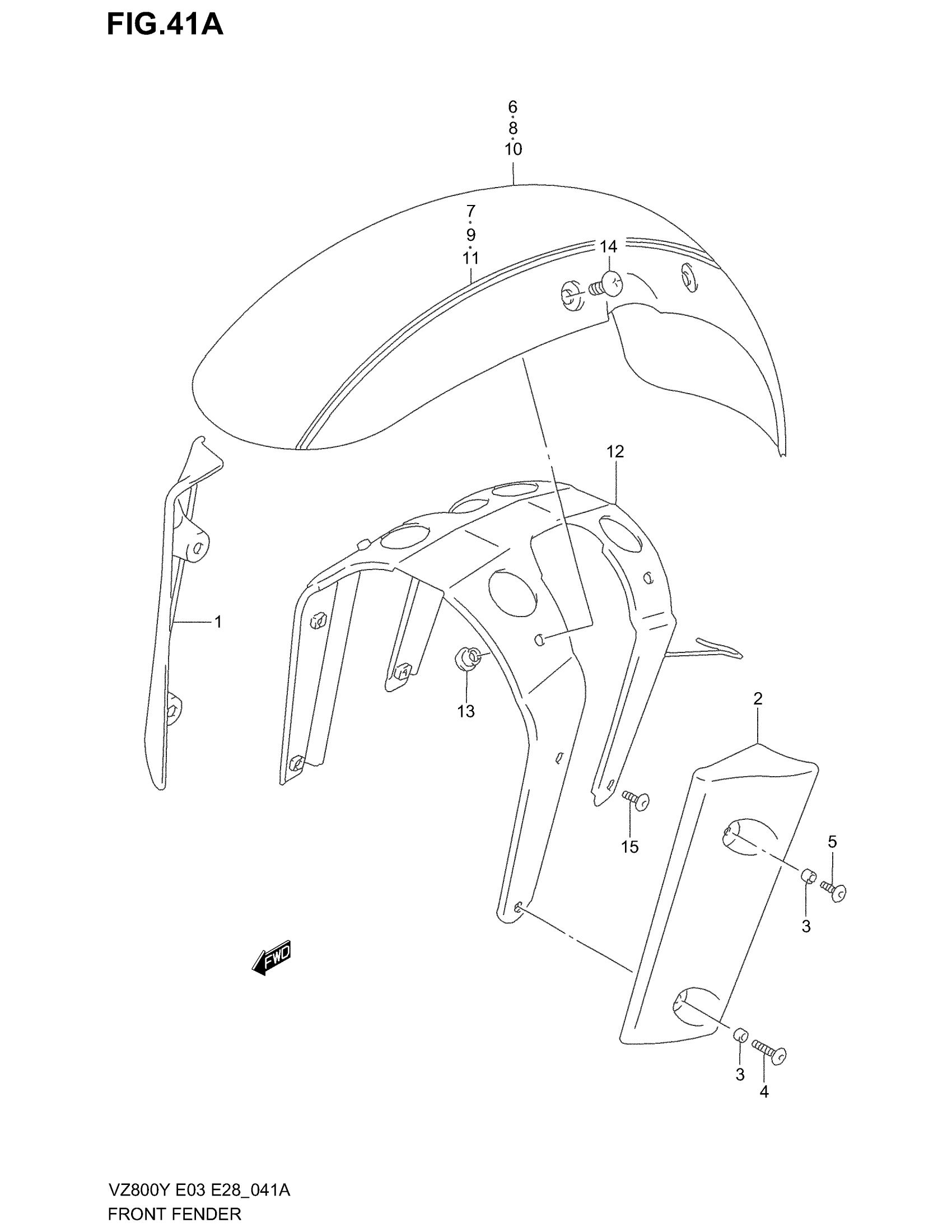

2003 Suzuki VZ800 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$94.97

In stock

2

COVER,FRONT FOR This part replaces 51882-48E00.

51882-48E01

1
Out of stock

3

SPACER (6.1X8X3.5)

09180-06245

4

$2.54

In stock

4

SCREW, LOWER (6X20)

09139-06028

2
Out of stock

5

SCREW, UPPER (6X12)

09139-06027

2

$2.31

In stock

6

FENDER, FRONT | MODEL W; Includes Item(s) 7 This part replaces 53110-48E30-J8K.

53110-48E50-J8K

1
Out of stock

7

TAPE SET, FRONT FENDER | MODEL W FOR J8K

68150-48E10-J9G

1
Out of stock

8

NO DESCRIPTION AVAILABLE | MODEL W; Includes Item(s) 9 This part replaces 53110-48E40-J4M.

53110-48E60-J4M

1
Out of stock

9

TAPE SET, FRONT FENDER | MODEL W FOR J4M

68150-48E20-J6F

1
Out of stock

10

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 53110-48E70-E9N.

53110-48E80-E9N

1
Out of stock

10

NO DESCRIPTION AVAILABLE | MODEL X; Includes Item(s) 11 - 11 This part replaces 53110-48E70-G7U.

53110-48E80-G7U

1
Out of stock

11

TAPE SET, FRONT FENDER | MODEL X FOR E9N

68150-48E30-H0G

1
Out of stock

11

TAPE SET, FRONT FENDER | MODEL X FOR G7U

68150-48E30-M1Z

1
Out of stock

12

BRACE, FRONT FENDER | Includes Item(s) 13

53120-48E00

1
Out of stock

13

NUT

53122-33D00

4
Out of stock

14

SCREW (6X12)

09139-06027

4

$2.31

In stock

15

SCREW (6X16)

09139-06030

2

$3.58

In stock
