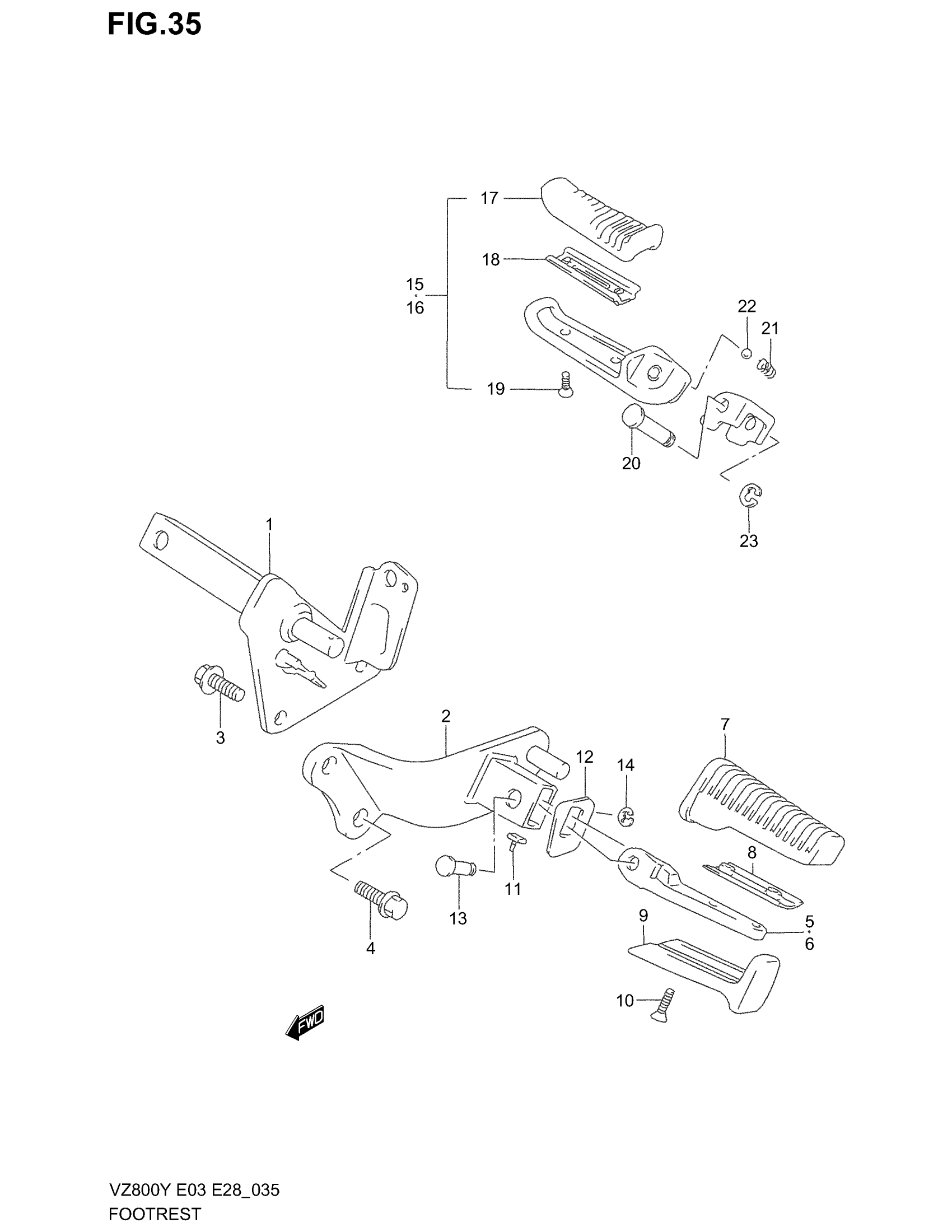

Suzuki VZ800 (2003) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH | MODEL V/W

43510-48E10

Unavailable

1

BRACKET, FRONT FOOTREST RH | MODEL X/Y/K1/K2/K3

43510-48E20

$171.78

2

BRACKET, FRONT FOOTREST LH | MODEL V/W

43520-48E10

Unavailable

2

BRACKET, FRONT FOOTREST LH | MODEL X/Y/K1/K2/K3

43520-48E20

$171.78

3

BOLT | MODEL V/W

01580-10307

$5.83

4

BOLT | MODEL V/W

01580-10357

$5.83

4

BOLT | MODEL X/Y/K1/K2/K3 This part replaces 01580-10353.

01580-1035A

$5.17

5

BAR, FRONT FOOTREST RH

43531-48E00

$70.32

6

BAR, FRONT FOOTREST LH

43541-48E00

$70.32

7

RUBBER,FR FOOTR This part replaces 43551-38B00.

43551-38B01

$14.85

8

PLATE, RUBBER STOPPER

43580-38B10

$14.18

9

COVER, FRONT FOOTREST

43585-38B11

Unavailable

10

SCREW

09127-05018

Unavailable

11

CUSHION,FR FOOT This part replaces 43571-48E00.

43571-48E01

$3.35

12

WASHER, FRONT FOOTREST

43546-38B01

$7.07

13

PIN

09208-08011

$2.80

14

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

15

FOOTREST ASSY, PILLION RH | MODEL V/W/X

43600-48E10

$134.93

15

FOOTREST ASSY,P | MODEL Y/K1/K2/K3 This part replaces 43600-38E00.

43600-38E01

$84.85

16

FOOTREST ASSY, PILLION LH | MODEL V/W/X

43700-48E10

Unavailable

16

FOOTREST ASSY,P | MODEL Y/K1/K2/K3; Includes Item(s) 17 - 19 This part replaces 43700-38E00.

43700-38E01

$73.83

17

RUBBER,PILLION This part replaces 43612-38A00.

43612-38A10

$9.67

18

PLATE, RUBBER STOP

43632-38A00

$8.32

19

SCREW

09127-05017

$3.00

20

PIN

09208-08011

$2.80

21

SPRING

09440-05005

$1.45

22

BALL

06111-07004

$1.22

23

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43
