1993 Suzuki VX800 Oil Pump-Fuel Pump Diagram

← All diagrams

Find the part on the Oil Pump-Fuel Pump diagram for your 1993 Suzuki VX800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

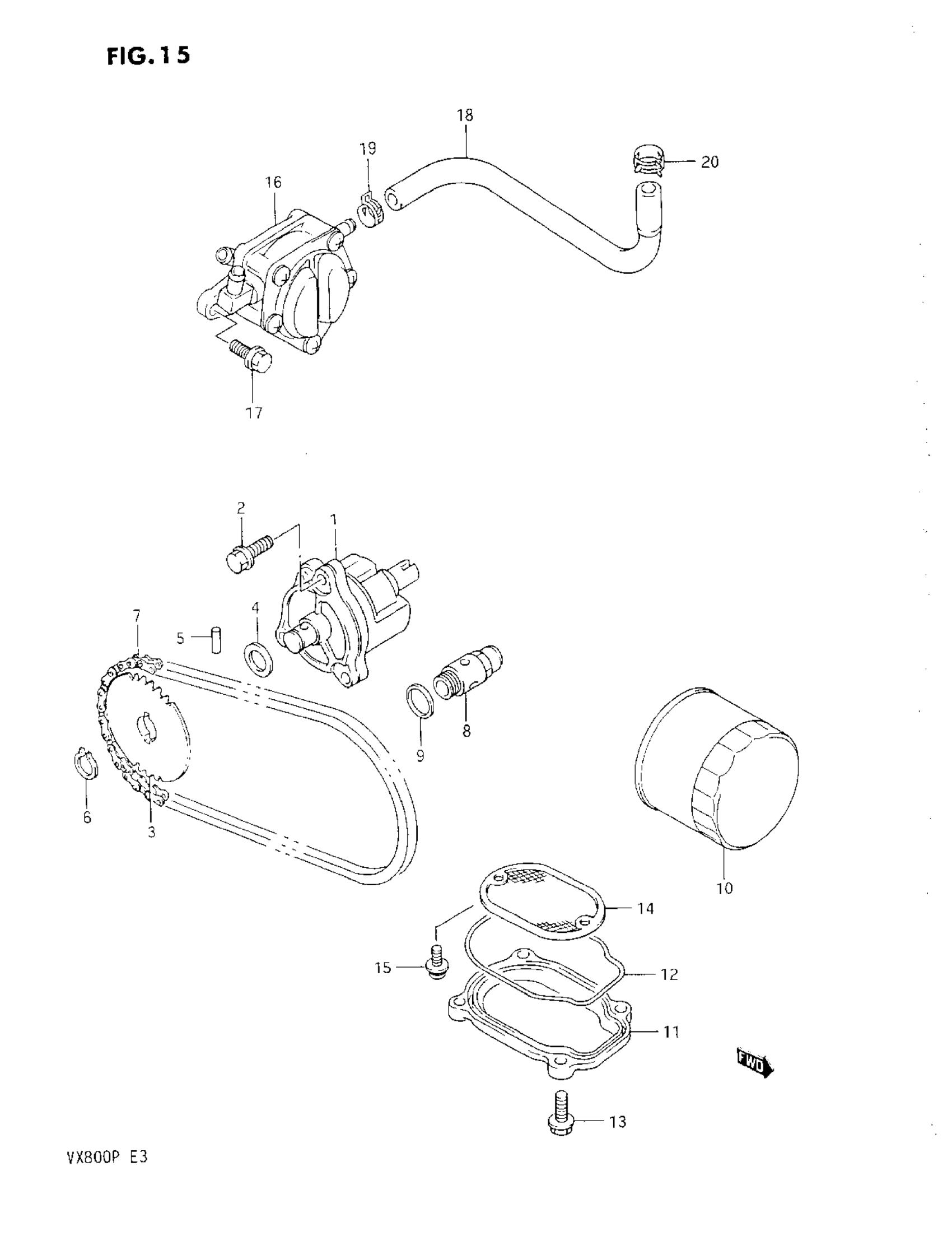

1993 Suzuki VX800 Oil Pump-Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, OIL

16400-38A01

1

$250.27

In stock

2

BOLT This part replaces 01517-06257.

01550-06257

3
Out of stock

3

SPROCKET, OIL PUMP DRIVEN

16331-38A00

1
Out of stock

4

WASHER

08221-12205

1

$2.50

In stock

5

PIN

09261-05006

1

$1.83

In stock

6

CIRCLIP This part replaces 08331-31126.

08331-3112A

1
Out of stock

7

CHAIN, OIL PUMP DRIVE

16310-38A00

1

$38.30

In stock

8

VALVE ASSY, OIL RELIEF

16440-24A01

1
Out of stock

9

GASKET

09168-16002

1
Out of stock

10

FILTER, ENGINE OIL | MODEL L This part replaces 16510-06B00.

16510-07J00

1
Out of stock

10

FILTER, ENGINE OIL | MODEL M/N/P This part replaces 16510-06B01.

16510-07J00

1
Out of stock

11

CAP, OIL STRAINER

16523-38A00

1

$35.78

In stock

12

O-RING

16528-38A00

1

$13.27

In stock

13

4

$2.43

In stock

14

STRAINER, OIL

16520-38A00

1

$9.17

In stock

15

SCREW This part replaces 02112-75126.

02112-7512A

2
Out of stock

16

PUMP ASSY,FUEL | MODEL L/M/N This part replaces 15100-45C00.

15100-45C11

1
Out of stock

16

PUMP ASSY,FUEL | MODEL P This part replaces 15100-45C10.

15100-45C11

1
Out of stock

17

BOLT This part replaces 01517-06164.

01550-0616A

2
Out of stock

18

1

$28.05

In stock

19

CLIP (ID:10.5,H:8)

09401-10409

1
Out of stock

20

1

$2.36

In stock
