1993 Suzuki VX800 Fuel Cock Diagram

← All diagrams

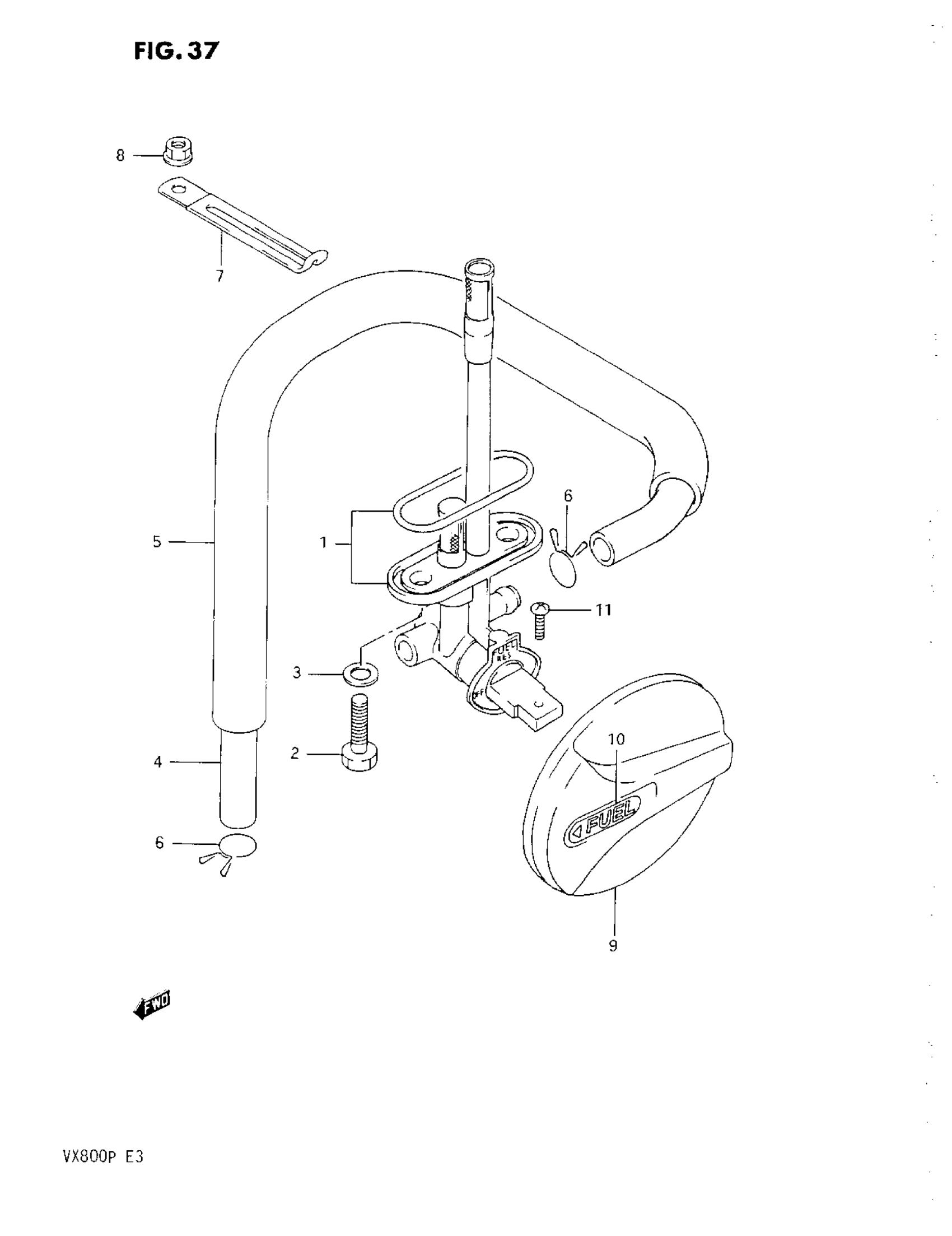

Find the part on the Fuel Cock diagram for your 1993 Suzuki VX800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki VX800 Fuel Cock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COCK SET, FUEL | MODEL L/M

44300-45810

1
Out of stock

1

COCK ASSY, FUEL | MODEL N/P

44300-45C10

1
Out of stock

2

BOLT This part replaces 09128-06006.

09128-06057

2
Out of stock

3

GASKET

09168-06026

2
Out of stock

4

HOSE,7X11X600 This part replaces 09354-70113-600.

44421-32ER0

1
Out of stock

5

PROTECTORM,FUEL | MODEL L/M This part replaces 44461-45C00.

44461-24D00

1
Out of stock

5

PROTECTORM,FUEL | MODEL N/P This part replaces 44461-45C01.

44461-24D00

1
Out of stock

6

CLIP | MODEL L/M/N

09401-12403

2
Out of stock

6

CLIP (ID:10.5,H:8) | MODEL P

09401-10409

2
Out of stock

7

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

1
Out of stock

8

NUT This part replaces 09159-06017.

08319-31067

1
Out of stock

9

LEVER,FUEL COCK | MODEL L This part replaces 58481-49302-24D.

58481-49302

1
Out of stock

9

LEVER,FUEL COCK | MODEL L This part replaces 58481-49302-24V.

58481-49302

1
Out of stock

9

LEVER, FUEL COC | MODEL M This part replaces 58481-49302-0FP.

58481-49302-019

1
Out of stock

9

LEVER, FUEL COC | MODEL M This part replaces 58481-49302-19A.

58481-49302-019

1
Out of stock

9

LEVER, FUEL COCK (BLACK) | MODEL M/P

58481-49302-33J

1
Out of stock

9

LEVER, FUEL COCK (PURPLE) | MODEL N

58481-49302-1HU

1
Out of stock

9

LEVER,FUEL COCK | MODEL P This part replaces 58481-49302-22U.

58481-49302

1
Out of stock

10

LABEL, LEVER

44395-45C00

1
Out of stock

11

1

$2.50

In stock
