1993 Suzuki VX800 AIR Cleaner Diagram

← All diagrams

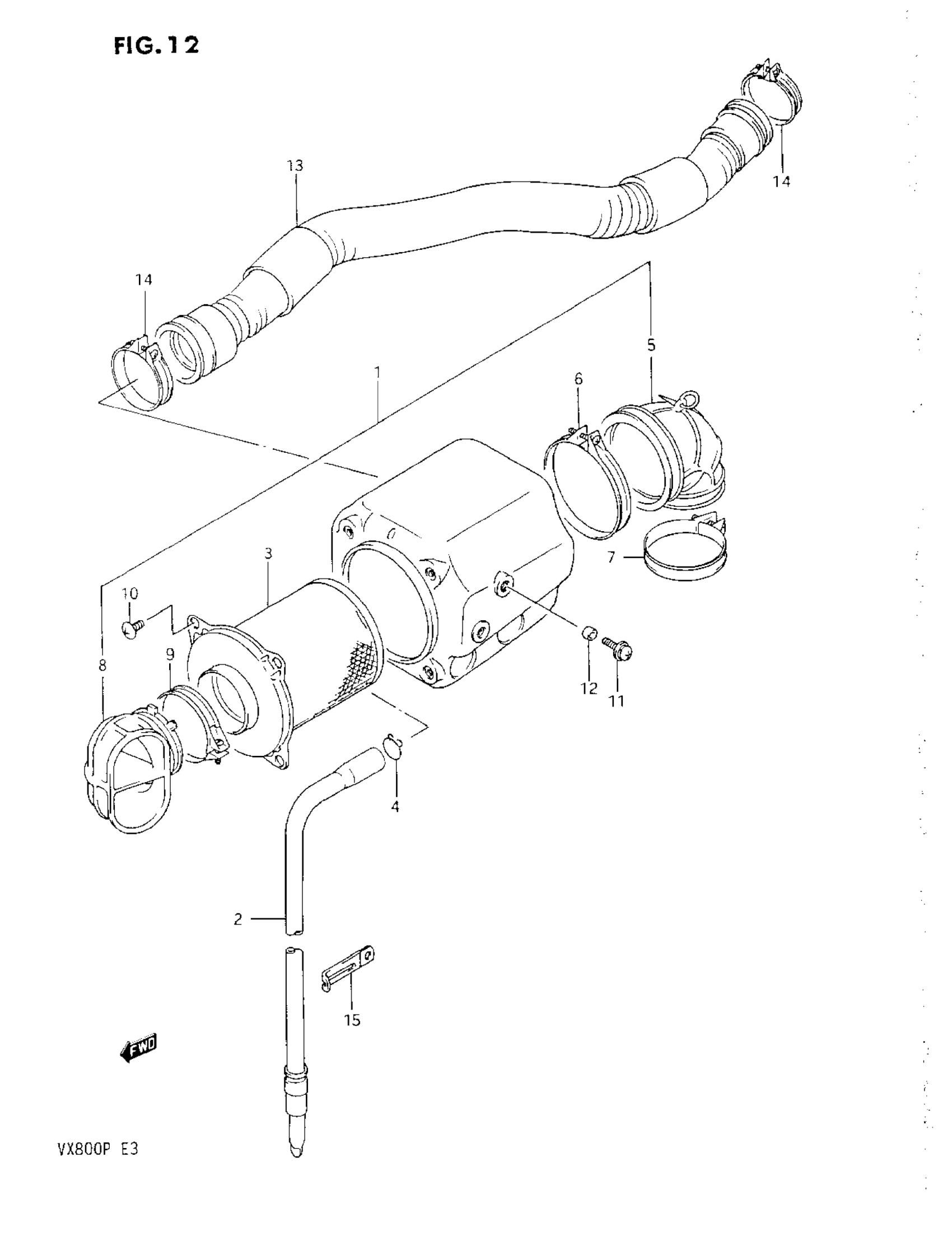

Find the part on the AIR Cleaner diagram for your 1993 Suzuki VX800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki VX800 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR FRONT

13700-45C20

1
Out of stock

2

TUBE, DRAIN

13870-11714

1
Out of stock

3

FILTER ASSY, AIR

13780-45C20

1
Out of stock

4

CLIP This part replaces 13824-00A00.

09401-13409

1
Out of stock

5

TUBE OUTLET This part replaces 13881-38B00.

13881-38B01

1
Out of stock

6

CLAMP This part replaces 09402-72207.

09402-72203

1
Out of stock

7

CLAMP

09402-58208

1
Out of stock

8

TUBE, INLET

13891-45C00

1
Out of stock

9

CLAMP This part replaces 09402-56208.

09402-56901

1
Out of stock

10

SCREW

02142-05087

4
Out of stock

11

SCREW This part replaces 02112-76168.

02112-7616A

2
Out of stock

12

SPACER

09180-06092

2
Out of stock

13

HOSE, AIR CLEANER

13730-45C00

1
Out of stock

14

CLAMP

09402-42208

2
Out of stock

15

CLAMP This part replaces 09404-06402.

09404-06039

1
Out of stock
