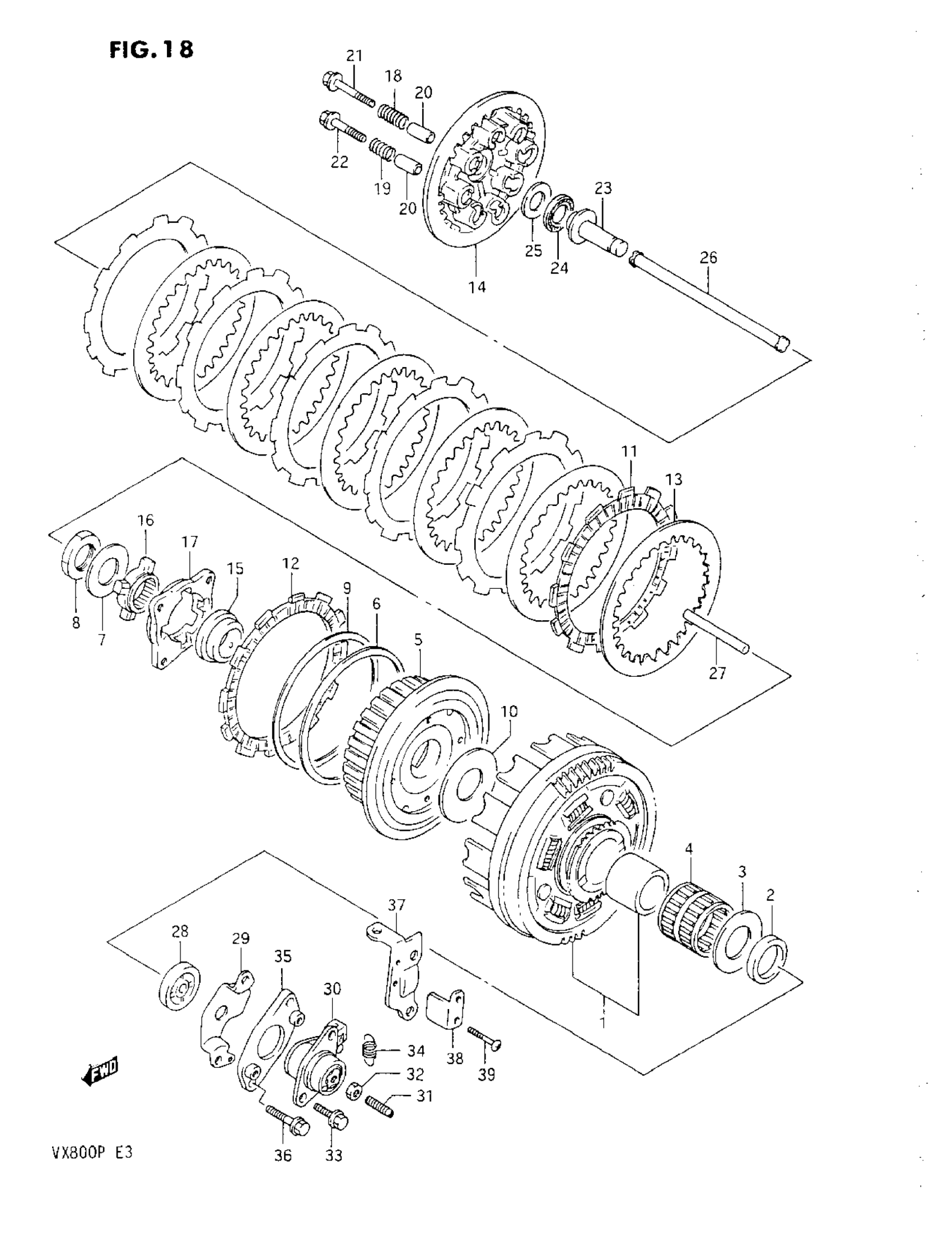

Suzuki VX800 (1993) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:71)

21200-38812

Unavailable

2

SPACER, INNER

09180-25077

$14.72

3

WASHER (25X50X2.5)

09160-25055

$9.37

4

BEARING (35X40X35.8)

09263-35017

$37.12

5

HUB, SLEEVE

21410-45C03

$260.50

6

SEAT, WAVE WASHER

21471-37400

$8.95

7

WASHER, WAVE

09164-22008

$8.96

8

NUT

09140-22011

Unavailable

9

WASHER

09164-00004

$10.39

10

WASHER

09160-25065

$20.32

11

PLATE, DRIVE NO.1

21441-37400

$16.59

12

PLATE, CLUTCH DRIVE NO.2

21442-37401

$17.09

13

PLATE, DRIVEN

21451-14A00

$8.71

14

DISC, PRESSURE

21462-45C00

Unavailable

15

SPACER, SLEEVE HUB

21413-45C00

Unavailable

16

CAM, CLUTCH NO.1 This part replaces 21611-45C01.

21611-45C02

Unavailable

17

CAM, CLUTCH NO.2 This part replaces 21613-45C01.

21613-45C02

$150.83

18

SPRING

09440-14038

$4.31

19

SPRING, NO.2

09440-14039

$6.15

20

SPACER (6.1X9X24.1) This part replaces 09180-06192.

09180-06276

$5.52

21

BOLT (6X40)

09116-06135

$2.87

22

BOLT (6X32.5)

09116-06148

$2.90

23

PIECE, PUSH

23121-38A10

Unavailable

24

BEARING (15X28X2)

09263-15003

$7.49

25

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.52

26

ROD, PUSH RH

23110-27A00

$19.86

27

ROD, PUSH LH

23111-45C00

$19.60

28

OIL SEAL

09285-06017

$10.48

29

RETAINER,CL PUSH ROD OIL SEAL

23117-45C00

Unavailable

30

SCREW ASSY, CLUTCH RELEASE

23200-45C00

Unavailable

31

SCREW

09134-06010

$2.81

32

.NUT This part replaces 08310-22067.

08310-00067

$1.83

33

BOLT

01517-06166

Unavailable

34

SPRING

09443-09024

Unavailable

35

PLATE, CLUTCH RELEASE SCREW

23130-45C00

$29.67

36

BOLT This part replaces 01517-06256.

01550-0625A

$1.97

37

GUIDE, CLUTCH CABLE

23281-45C01

Unavailable

38

PLATE

23282-45C00

Unavailable

39

SCREW,5X8 This part replaces 09125-05072.

09125-05072-XC0

$2.35
