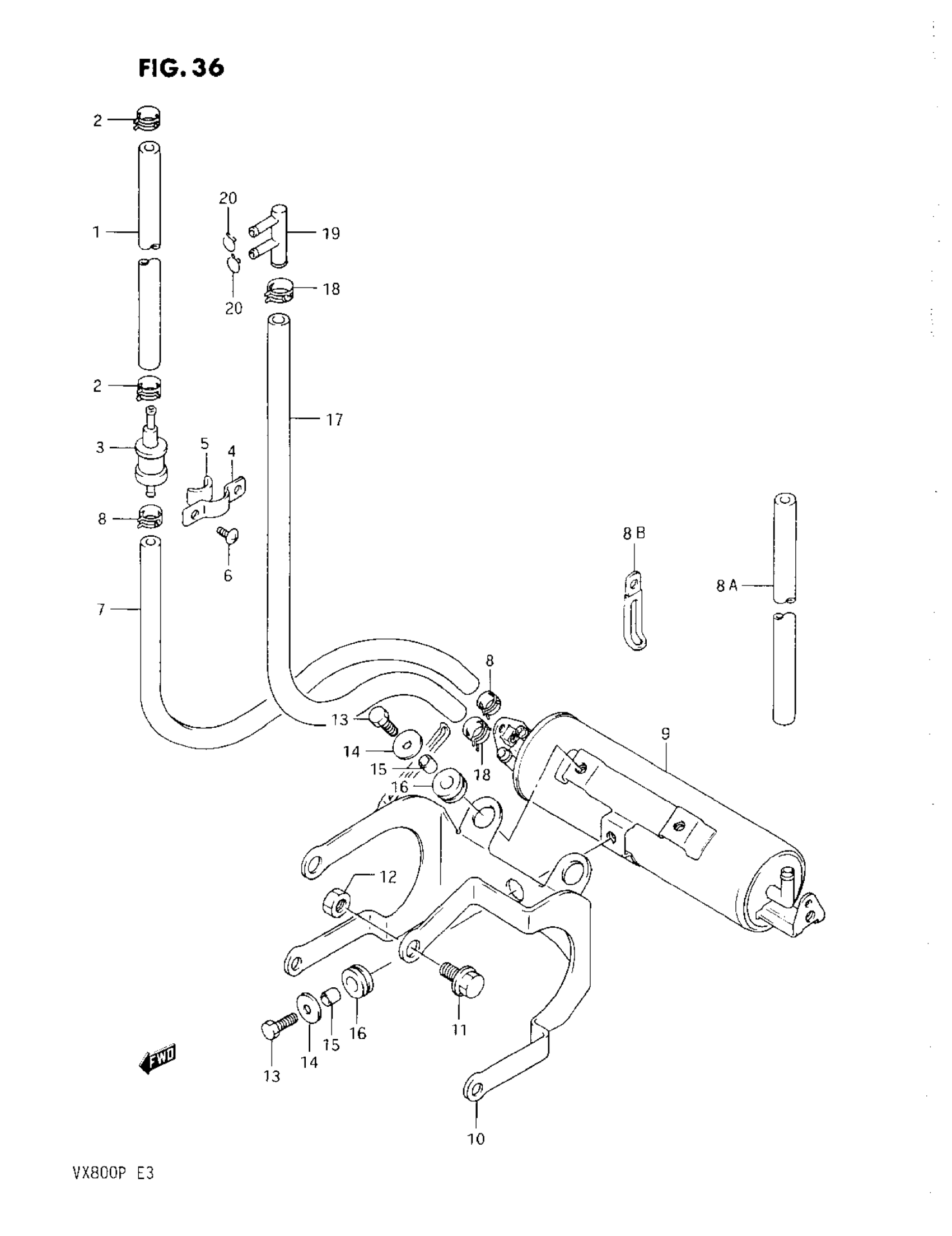

Suzuki VX800 (1993) CANISTER (FOR CALIFORNIA) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE | L:300->230 This part replaces 09358-54116-300.

09355-54115-600

$12.71

2

CLIP This part replaces 09401-11410.

09401-11413

$2.24

3

VALVE, FUEL TANK BREATHER

44240-38A00

$69.02

4

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$5.10

5

CUSHION (10X30X2)

44894-24A00

$1.78

6

SCREW This part replaces 02142-04105.

02142-0410A

$1.22

7

HOSE, TANK & BREATHER VALVE | L:600->400 This part replaces 09358-54116-600.

09355-54115-600

$12.71

8

CLIP This part replaces 09401-11410.

09401-11413

$2.24

8

HOSE(7X11X2000) This part replaces 09352-70113-00A.

09352-70119-00B

$32.52

8

CLAMP This part replaces 09404-06402.

09404-06039

$1.73

9

CANISTER

17210-38B00

Unavailable

10

PLATE, CANISTER FITTING

44870-45C00

Unavailable

11

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.31

12

NUT This part replaces 08316-16105.

08316-1010B

$2.65

13

BOLT, CANISTER | MODEL L/M/N This part replaces 01107-06167.

01500-06167

$1.97

13

BOLT (6X16) | MODEL P This part replaces 09116-06007.

09116-06168

$2.50

14

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

15

SPACER This part replaces 09180-06152.

09180-06262

$2.64

16

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.07

17

HOSE,7X11X600 This part replaces 09354-70113-600.

44421-32ER0

$11.22

18

CLIP This part replaces 09401-12406.

09401-11415

$2.24

19

SEPARATOR, VALVE

09367-06004

Unavailable

20

CLIP This part replaces 09401-08407.

09401-08411

$1.77
