1993 Suzuki VX800 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1993 Suzuki VX800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

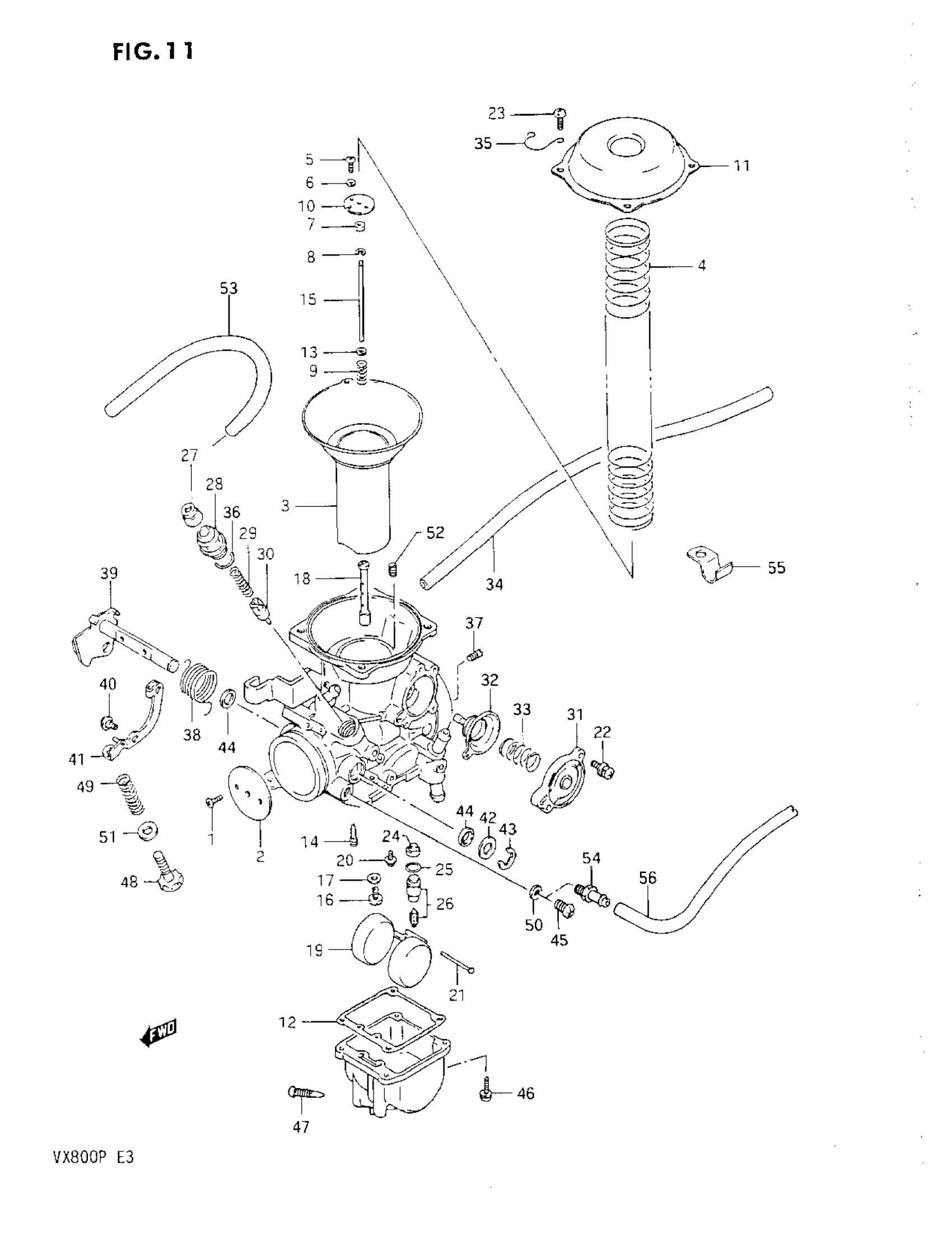

1993 Suzuki VX800 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY, REAR

13220-45C10

1
Out of stock

1

CARBURETOR ASSY, REAR | CALIFORNIA ONLY

13220-45C20

1
Out of stock

1

SCREW

13604-44080

2
Out of stock

2

VALVE, THROTTLE (125)

13551-05A10

1
Out of stock

3

DIAPHRAGM ASSY

13500-38A10

1

$219.28

In stock

4

SPRING

13503-38B00

1

$14.18

In stock

5

SCREW This part replaces 02112-03066.

02112-0306B

2
Out of stock

6

2

$1.78

In stock

7

RING

13387-47010

1

$7.41

In stock

8

E RING

13394-10010

1

$4.76

In stock

9

SPRING

13388-44030

1

$9.17

In stock

10

PLATE

13389-37400

1

$7.98

In stock

11

COVER

13502-45C00

1
Out of stock

12

GASKET

13251-38A10

1

$7.88

In stock

13

WASHER

13382-44030

1

$3.81

In stock

14

JET, PILOT (45)

09492-45016

1

$9.56

In stock

15

NEEDLE, JET (5F69-1)

13383-45C30

1
Out of stock

16

JET, MAIN (132.5)

09491-26012

1

$12.15

In stock

17

1

$2.92

In stock

18

JET, NEEDLE (P-7)

09494-00689

1
Out of stock

19

FLOAT

13252-23010

1

$20.58

In stock

20

SCREW

13602-05A10

1

$3.55

In stock

21

PIN

13254-92311

1

$2.41

In stock

22

SCREW

13602-19B50

2

$3.42

In stock

23

SCREW

02112-04087

4

$1.20

In stock

24

1

$10.26

In stock

25

1

$5.97

In stock

26

VALVE ASSY, NEEDLE

13370-38B00

1

$59.57

In stock

27

1

$4.91

In stock

28

HOLDER, GUIDE

13418-43410

1

$7.20

In stock

29

SPRING

13417-22010

1

$3.55

In stock

30

PLUNGER ASSY

13411-01400

1

$13.27

In stock

31

COVER

13484-45C00

1

$22.25

In stock

32

1

$53.07

In stock

33

1

$6.28

In stock

34

1

$9.88

In stock

35

CLIP

13692-02500

1

$9.50

In stock

36

.O RING (16) This part replaces 13278-47090.

13278-47091

1
Out of stock

37

JET, PILOT AIR (65)

09492-65005

1

$12.38

In stock

38

SPRING

13573-38B10

1
Out of stock

39

SHAFT ASSY

13550-45C00

1
Out of stock

40

SCREW

13602-05A30

1

$4.92

In stock

41

1

$46.98

In stock

42

WASHER

13557-47070

1
Out of stock

43

E RING

13617-44080

1
Out of stock

44

2

$3.68

In stock

45

1

$2.23

In stock

46

SCREW

13601-04148

4
Out of stock

47

1

$4.97

In stock

48

ADJUSTER This part replaces 13267-45C00.

13267-37230

1
Out of stock

49

SPRING

13271-93011

1

$5.83

In stock

50

WASHER

13523-46110

1

$2.92

In stock

51

WASHER | MODEL P

13277-37100

1

$2.43

In stock

52

JET, PILOT AIR (2.0)

09493-40003

1
Out of stock

54

NIPPLE | MODEL N/P

13685-45C00

1
Out of stock

55

CLAMP, AIR VENT HOSE

09403-09306

1
Out of stock
