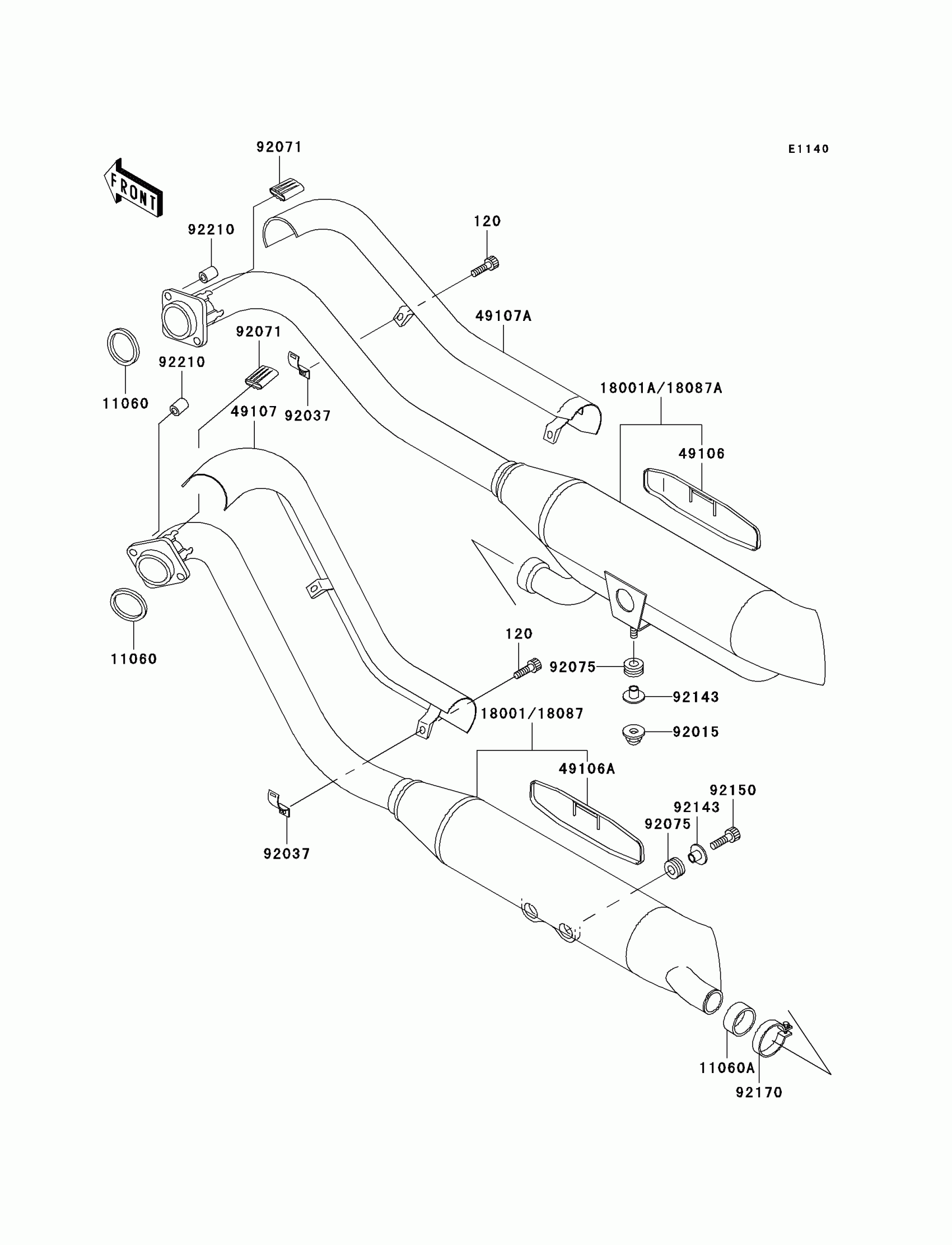

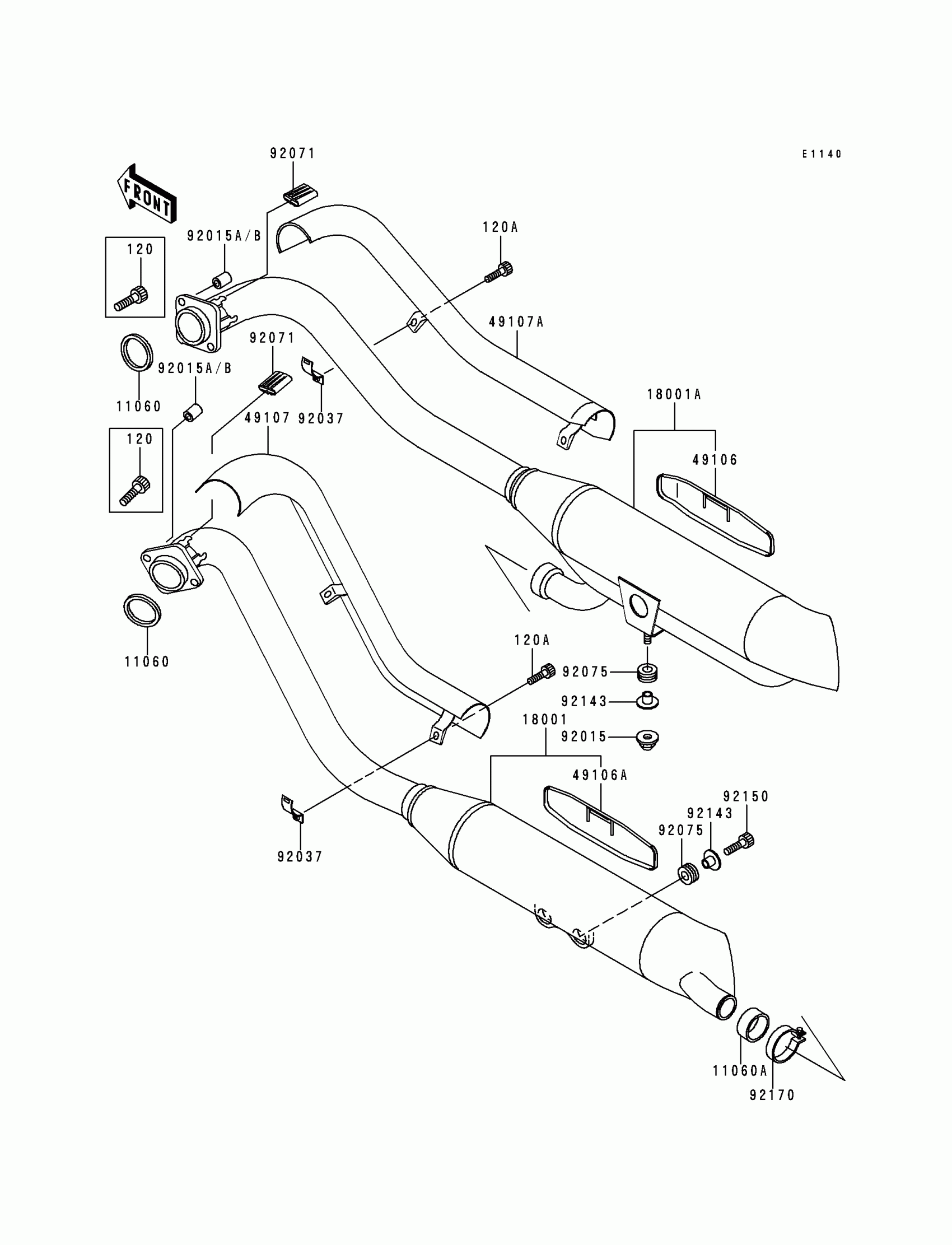

Kawasaki Vulcan 800 Muffler(s) Diagram

Description

Price

120A

BOLT-SOCKET,6X20

120Z0620

Unavailable

11060

GASKET,EXHAUST PIPE

11060-1680

$8.16

11060A

GASKET,JOINT

11060-1681

$33.27

18001

MUFFLER,FR

18001-1932

$777.77

18001A

MUFFLER,RR

18001-1933

$777.77

49106

COVER-MUFFLER,RR

49106-1179

$37.03

49106A

COVER-MUFFLER,FR

49106-1182

$37.03

49107

COVER-EXHAUST PIPE,FR

49107-1113

$136.35

49107A

COVER-EXHAUST PIPE,RR

49107-1114

$136.35

92015

NUT,CAP,8MM

92015-1370

Unavailable

92015A

NUT

92015-1983

$9.07

92037

CLAMP,EXHAUST PIPE COVER

92037-1613

$13.88

92071

GROMMET

92071-1226

$4.84

92075

DAMPER

92075-1898

$3.57

92143

COLLAR

92143-1753

$5.99

92150

BOLT,SOCKET,8X25

92150-1912

$3.57

92170

CLAMP

92170-1538

$23.36
