1999 Kawasaki Vulcan 800 Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 1999 Kawasaki Vulcan 800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

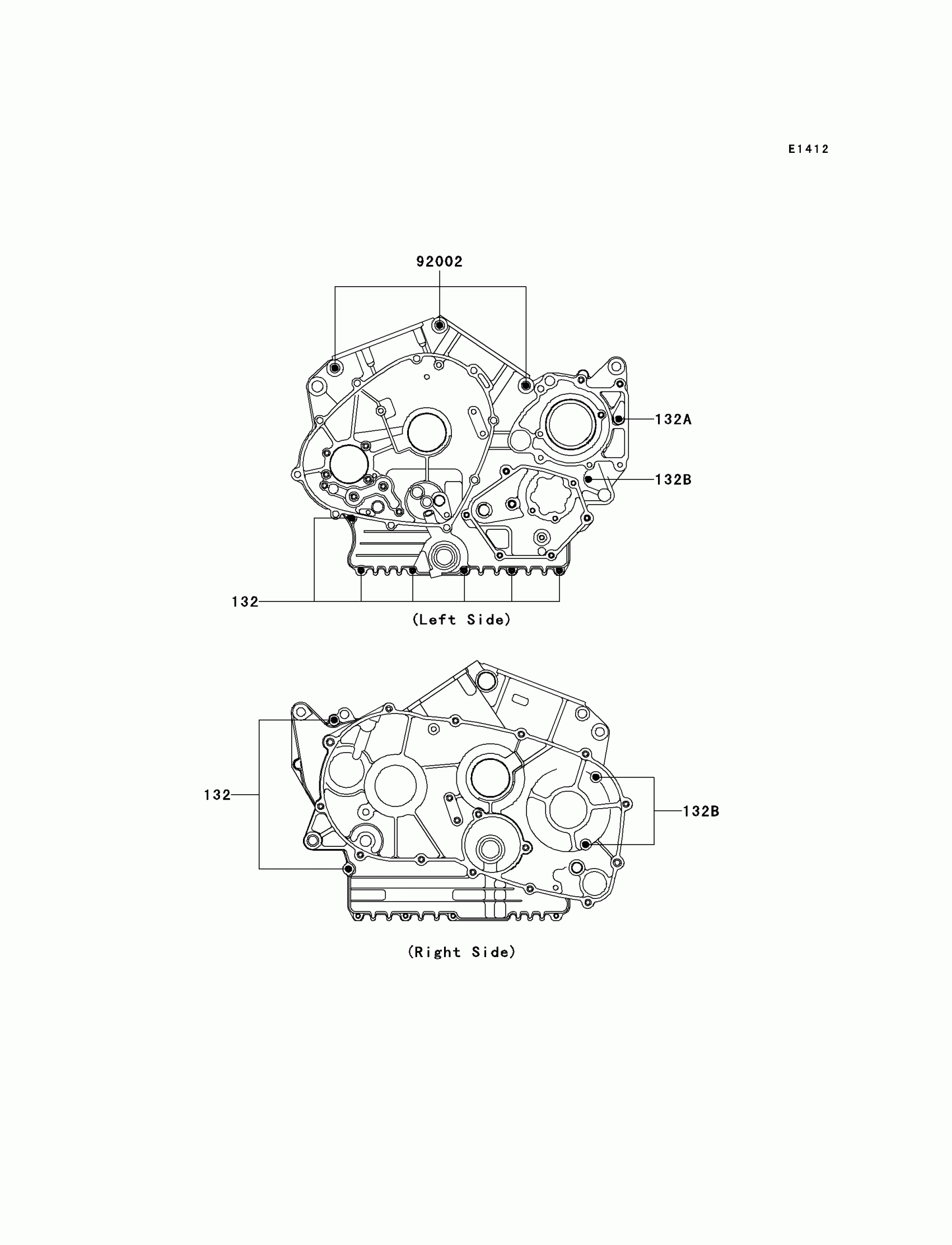

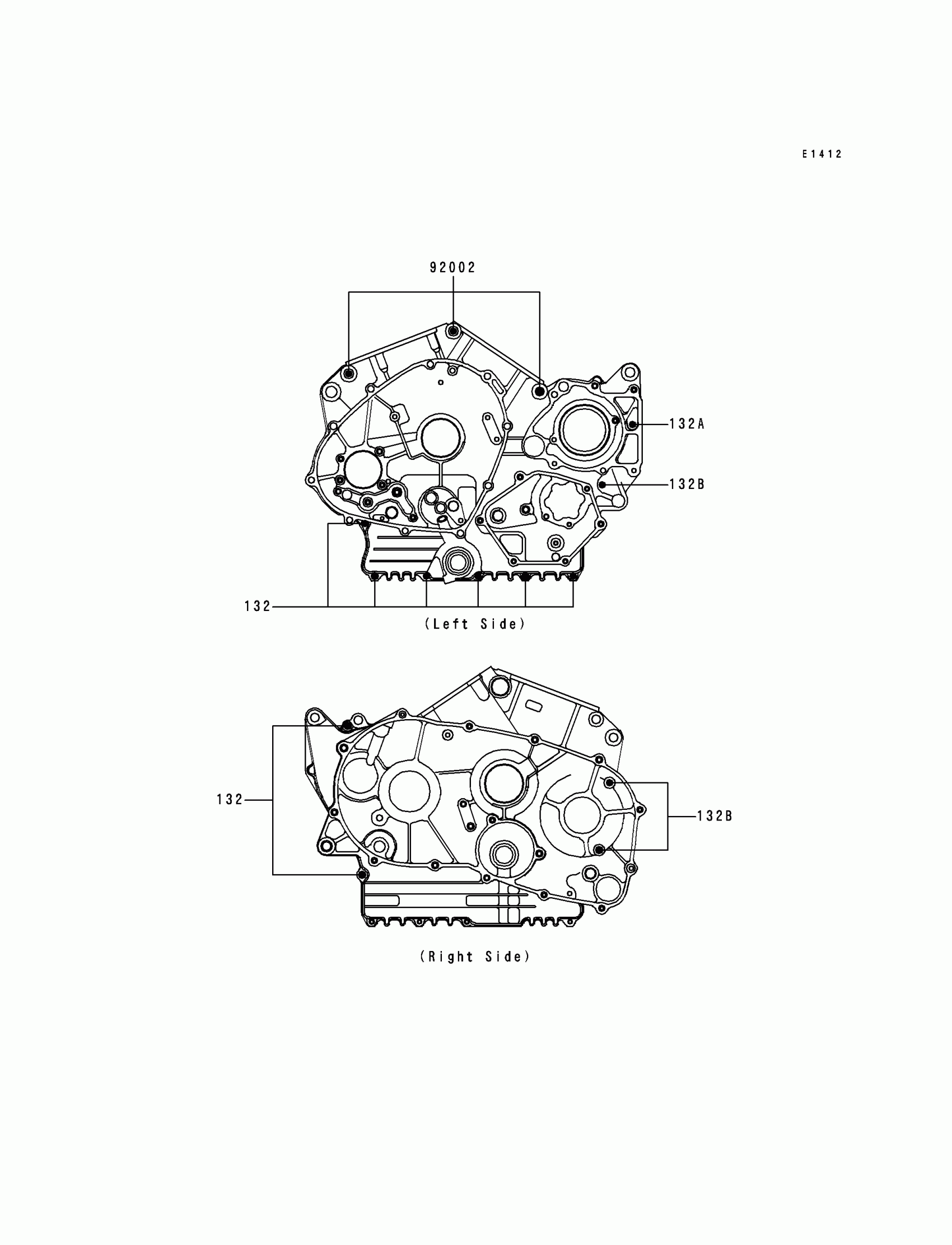

1999 Kawasaki Vulcan 800 Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X40

132J0640

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X60

132J0660

1
Out of stock

92002

BOLT,10X80

92002-1542

1
Out of stock
