1999 Kawasaki Vulcan 800 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1999 Kawasaki Vulcan 800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

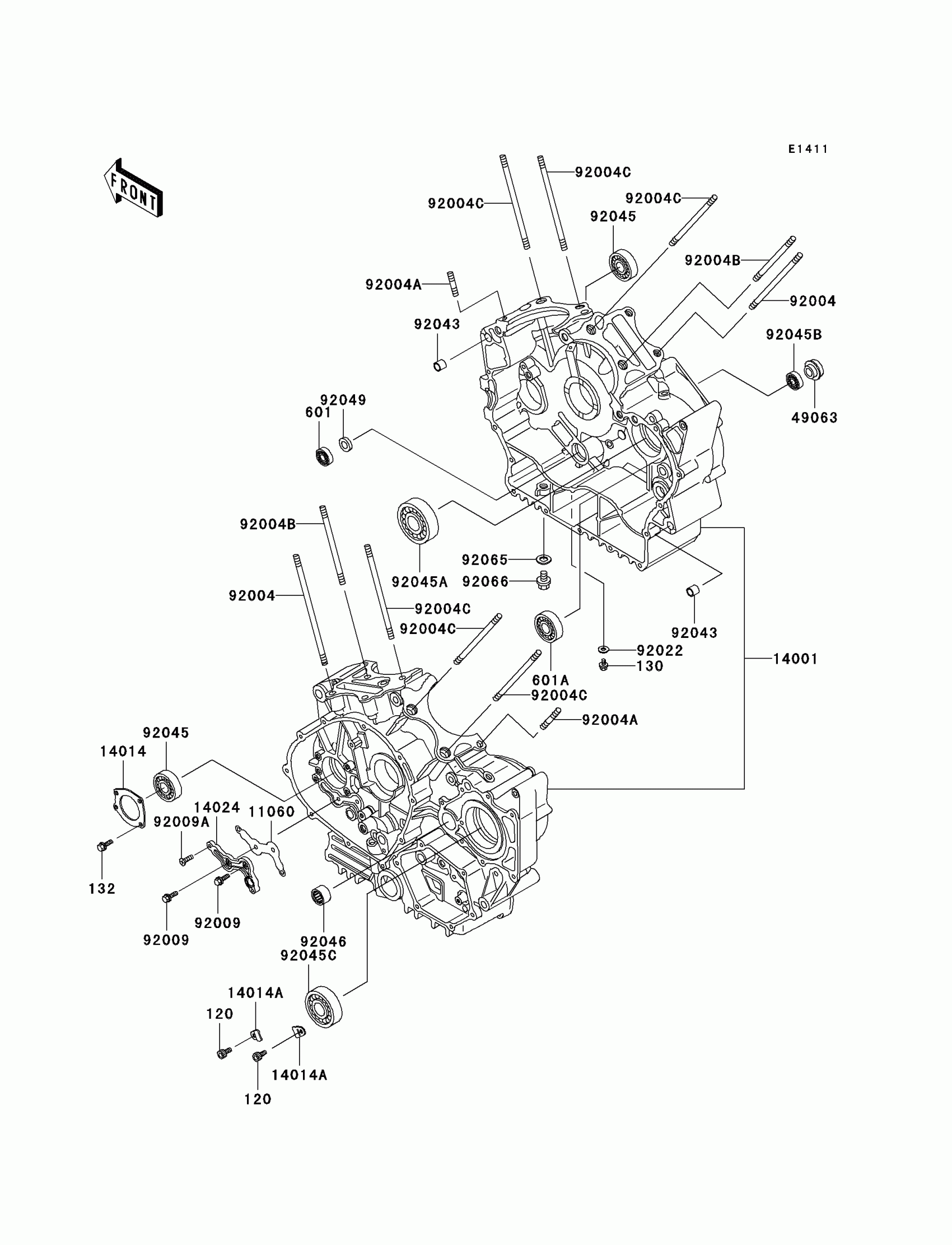

1999 Kawasaki Vulcan 800 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X12

120S0612

1
Out of stock

130

BOLT-FLANGED

130J0610

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

601

BEARING-BALL

601A6001

1

$9.26

In stock

601A

BEARING-BALL

601A6204Z

1

$30.56

In stock

11060

1

$8.88

In stock

14001

SET-CRANKCASE

14001-5342

1
Out of stock

14014

PLATE-POSITION

14014-1068

1
Out of stock

14014A

PLATE-POSITION

14014-1121

1
Out of stock

14024

COVER,OIL LINE

14024-1074

1
Out of stock

49063

SEAL-MECHANICAL

49063-1052

1

$44.44

In stock

92004

STUD,8X165.5

92004-1035

1
Out of stock

92004A

STUD,8X28.5

92004-1142

1
Out of stock

92004B

STUD,10X148

92004-1220

1
Out of stock

92004C

STUD,10X160

92004-1221

1
Out of stock

92009

SCREW-PAN-CROS,6X16

92009-1266

1
Out of stock

92009A

SCREW,6X20

92009-1447

1
Out of stock

92022

1

$3.13

In stock

92043

PIN,11X14X12.3

92043-1266

1

$1.00

In stock

92045

1

$32.85

In stock

92045A

BEARING-BALL,TMB305

92045-1137

1

$50.56

In stock

92045B

1

$24.30

In stock

92045C

1

$54.73

In stock

92046

BEARING-NEEDLE

92046-1239

1
Out of stock

92049

SEAL-OIL,SC 12X22X5

92049-1228

1
Out of stock

92065

GASKET,12X22X2

92065-097

1

$0.76

In stock

92066

1

$4.88

In stock
