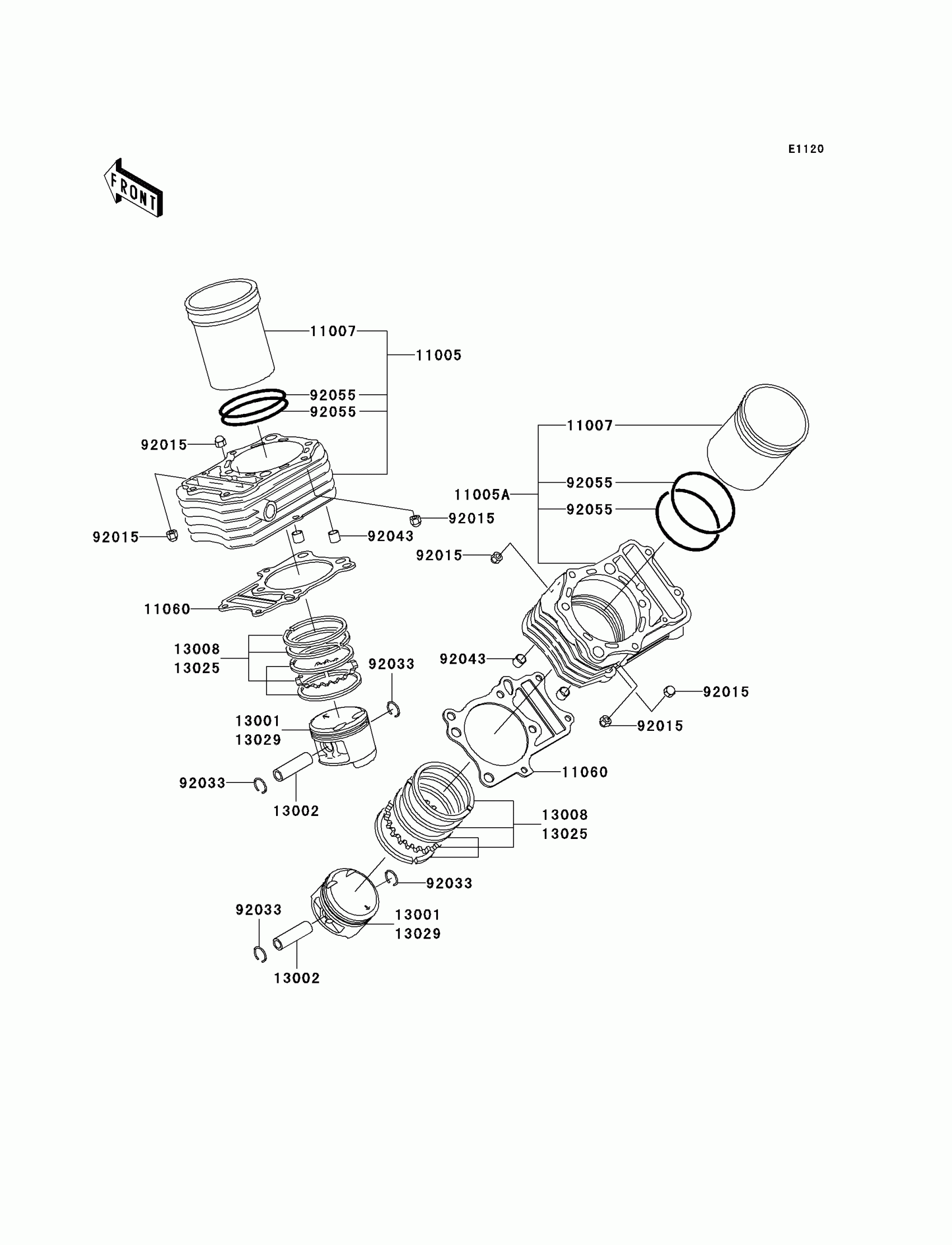

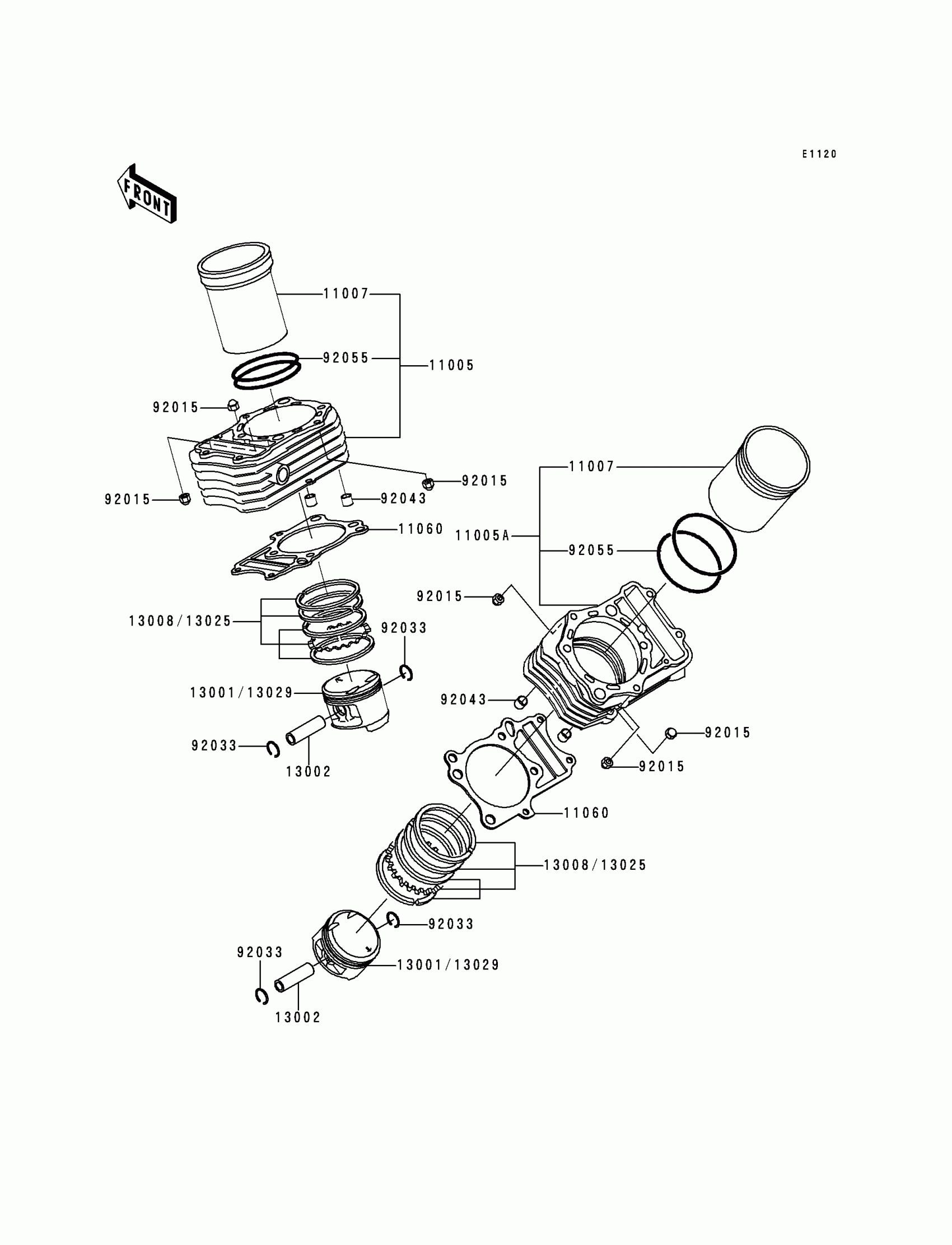

Find the part on the Cylinder/piston diagram for your 1999 Kawasaki Vulcan 800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1999 Kawasaki Vulcan 800 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE,FR

11005-1768

1
Out of stock

11005A

CYLINDER-ENGINE,RR

11005-1770

1
Out of stock

11007

LINER-CYLINDER

11007-1134

1
Out of stock

11060

GASKET,CYLINDER BASE

11060-1678

1
Out of stock

13001

PISTON-ENGINE,STD

13001-1434

1
Out of stock

13002

PIN-PISTON

13002-1056

1
Out of stock

13008

RING-SET-PISTON,STD

13008-1164

1
Out of stock

13025

RING-SET-PISTON L,O/S,0.50

13025-1127

1
Out of stock

13029

PISTON-ENGINE L,O/S,0.50

13029-1228

1
Out of stock

92015

NUT,CAP,8MM

92015-1370

1
Out of stock

92033

RING-SNAP

92033-1188

1
Out of stock

92043

PIN,11X14X12.3

92043-1266

1
Out of stock

92055

RING-O,95.3X2.5

92055-1535

1
Out of stock
