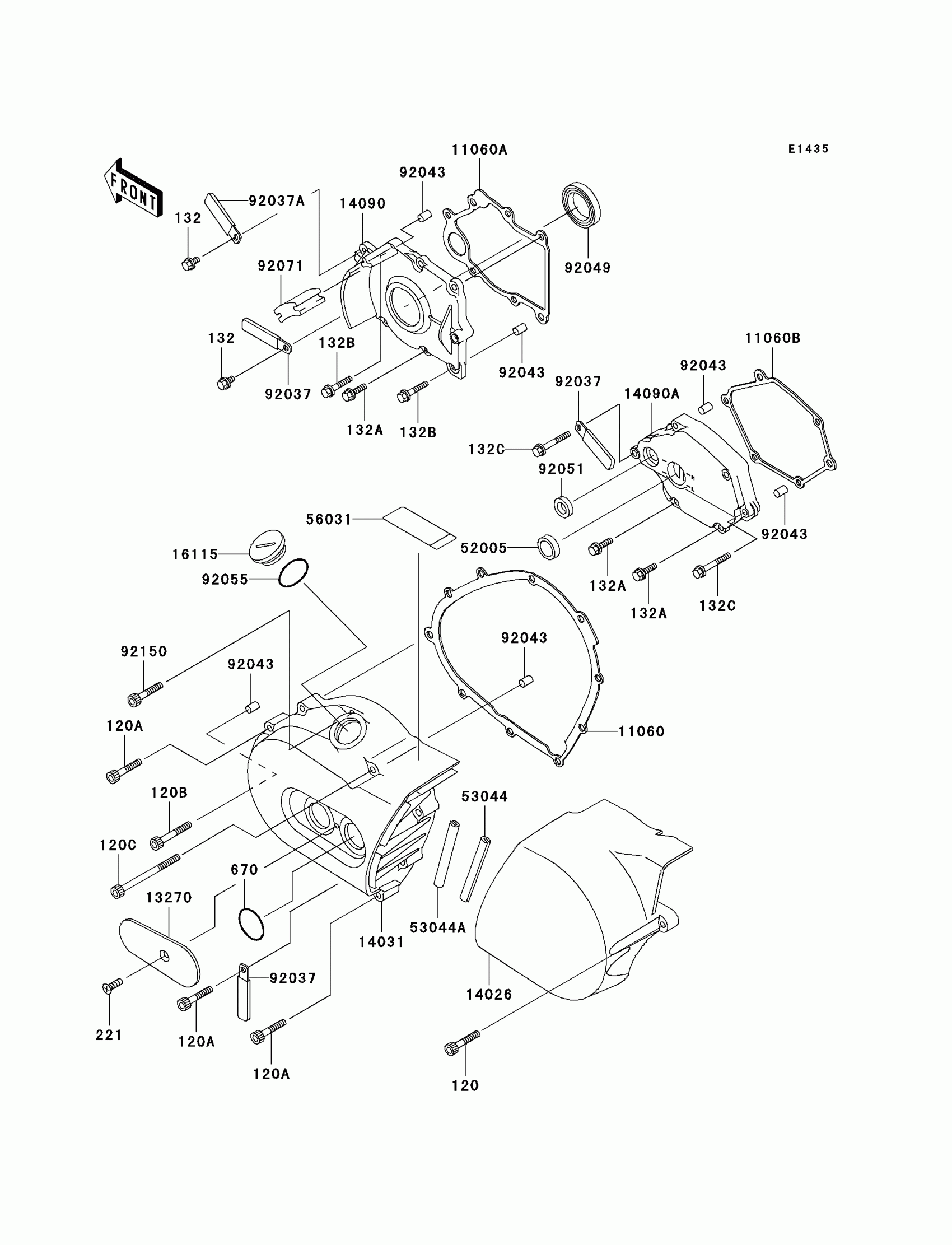

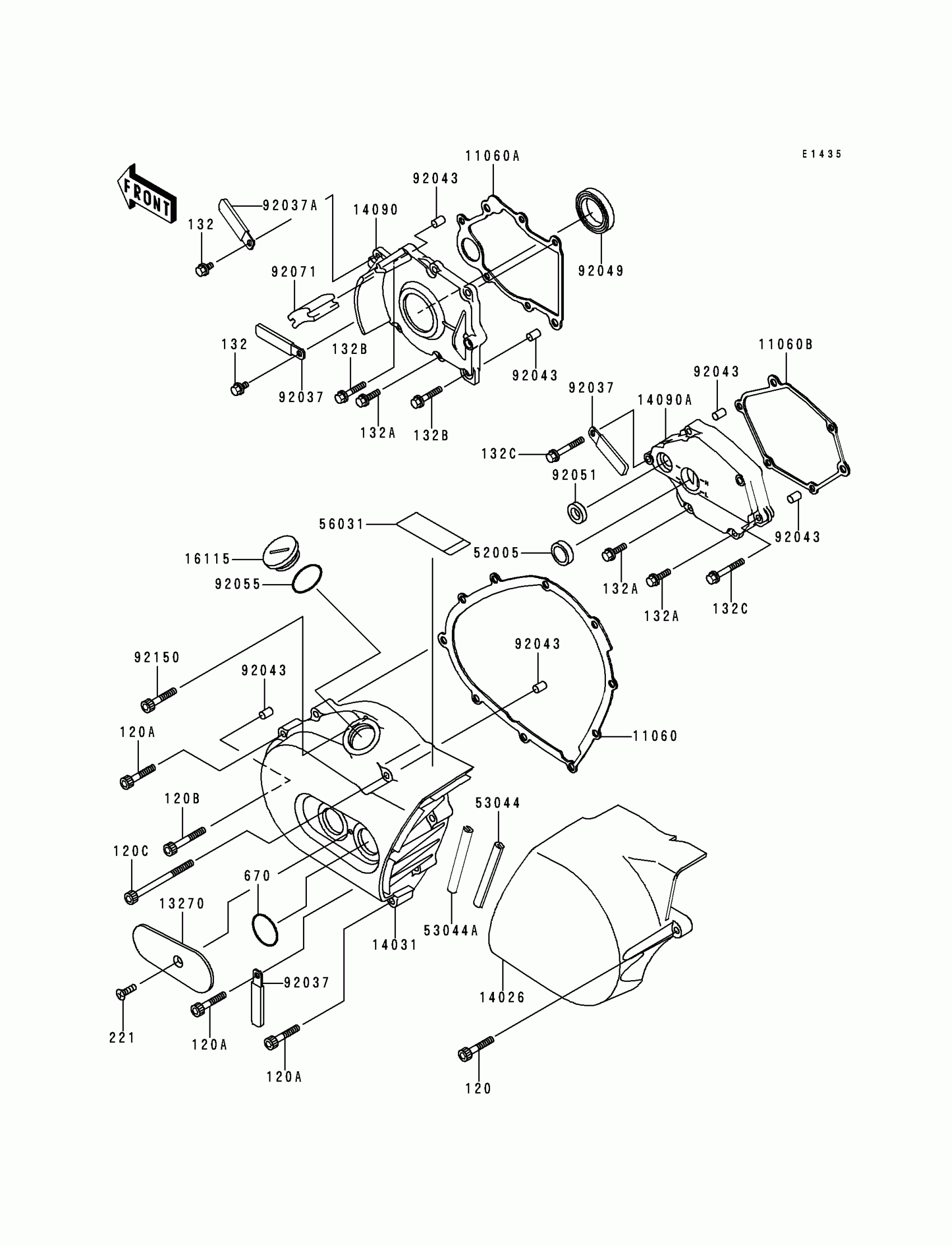

Kawasaki Vulcan 800 Left Engine Cover(s) Diagram

#

Description
Price

120

BOLT-SOCKET,6X30

120R0630

$3.35

120A

BOLT-SOCKET,6X35

120R0635

$4.42

120B

BOLT-SOCKET,6X45

120R0645

$4.80

120C

BOLT-SOCKET,6X85

120R0685

$9.07

132

BOLT-FLANGED-SMALL,6X10

132H0610

Unavailable

132A

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132C

BOLT-FLANGED-SMALL,6X40

132J0640

Unavailable

221

SCREW-CSK-CROS,6X14

221R0614

$3.93

670

O RING,34MM

670B3034

$1.43

11060

GASKET,GENERATOR COVER

11060-1089

$26.99

11060A

GASKET,TRANSMISSION COVER

11060-1683

$17.08

11060B

GASKET,MECHANISM COVER

11060-1685

$15.12

13270

PLATE

13270-1397

$38.19

14026

COVER-CHAIN

14026-1217

$334.10

14031

COVER-GENERATOR

14031-1308

$405.70

14090

COVER,TRANSMISSION

14090-1552

Unavailable

14090A

COVER,MECHANISM

14090-1559

$129.90

16115

CAP-OIL FILLER

16115-1063

$26.61

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

53044

TRIM

53044-1285

$4.61

53044A

TRIM

53044-1286

$5.75

56031

LABEL-MANUAL,OIL CAPACITY

56031-1894

$7.44

92037

CLAMP,L=45

92037-1539

$4.42

92037A

CLAMP

92037-1993

$4.18

92043

PIN,6.2X8X14

92043-1263

$0.46

92049

SEAL-OIL,TC32488

92049-1361

$5.18

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92055

RING-O,31.5X2.6

92055-049

$3.29

92071

GROMMET

92071-1232

$7.44

92150

BOLT,SOCKET,6X35

92150-1887

$3.92
