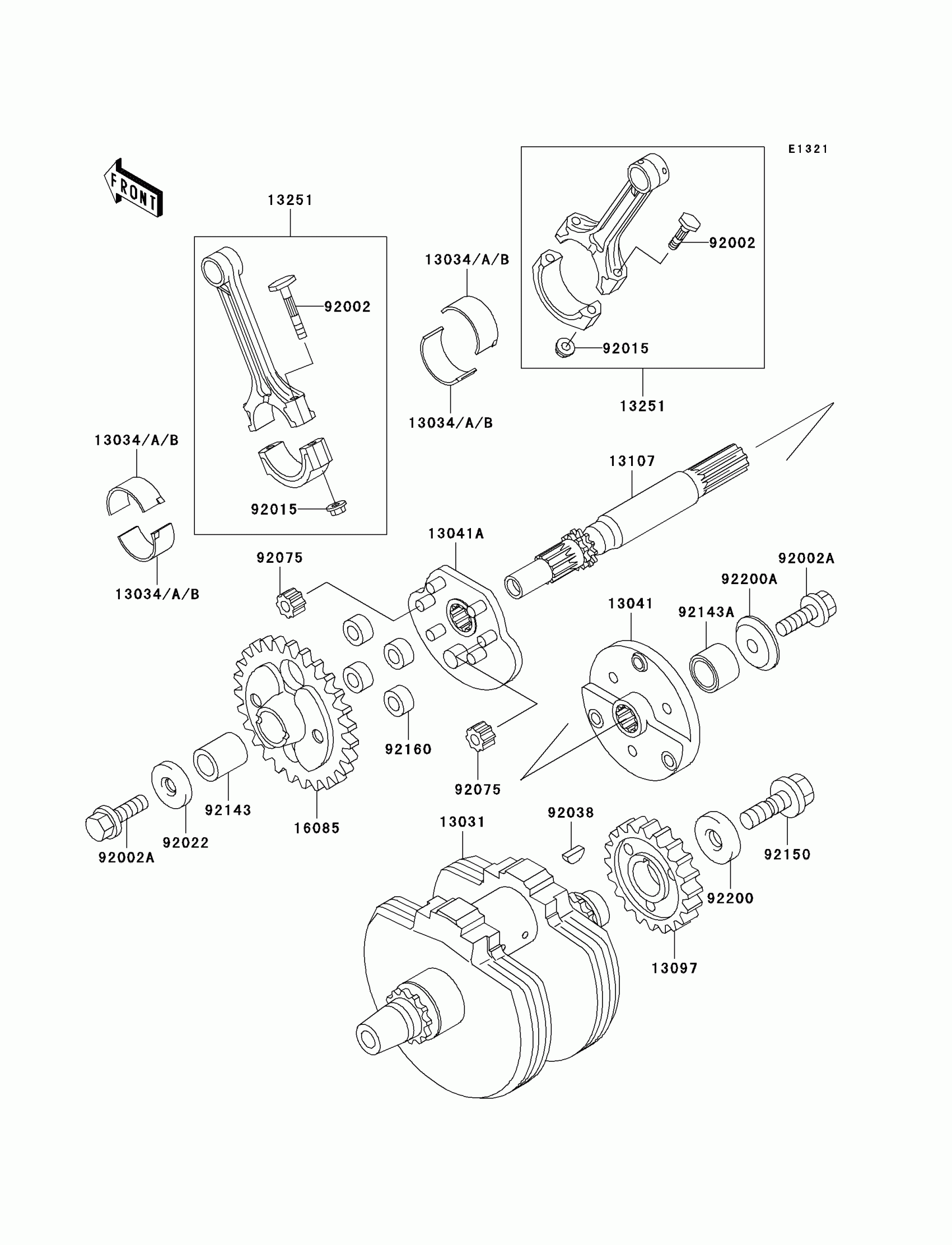

Find the part on the Crankshaft diagram for your 1999 Kawasaki Vulcan 800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1999 Kawasaki Vulcan 800 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-1398

1

$1,172.18

In stock

13034

—

$14.72

In stock

13034A

—

$14.72

In stock

13034B

—

$21.66

In stock

13041

BALANCER,RH

13041-1112

1

$142.87

In stock

13041A

BALANCER,LH

13041-1113

1

$159.72

In stock

13097

1

$94.19

In stock

13107

SHAFT,BALANCER

13107-1336

1

$182.36

In stock

13251

ROD-ASSY-CONNECTING,G

13251-1055-GG

1
Out of stock

16085

GEAR

16085-1279

1

$209.46

In stock

92002

BOLT,CONNECTING ROD

92002-1405

1

$9.29

In stock

92002A

BOLT,10X30

92002-1697

1
Out of stock

92015

NUT,CONNECTING ROD

92015-1481

1

$7.49

In stock

92022

WASHER,10X33X6

92022-1906

1
Out of stock

92038

KEY

92038-1059

1

$3.15

In stock

92075

DAMPER

92075-1748

1

$13.80

In stock

92143

COLLAR

92143-1736

1

$24.46

In stock

92143A

COLLAR

92143-1743

1

$24.46

In stock

92150

BOLT,12X40

92150-1717

1

$10.93

In stock

92160

DAMPER

92160-1582

1

$11.58

In stock

92200

WASHER,12X36X8

92200-1249

1
Out of stock

92200A

WASHER

92200-1250

1
Out of stock
