1994 Kawasaki Vulcan 500 Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

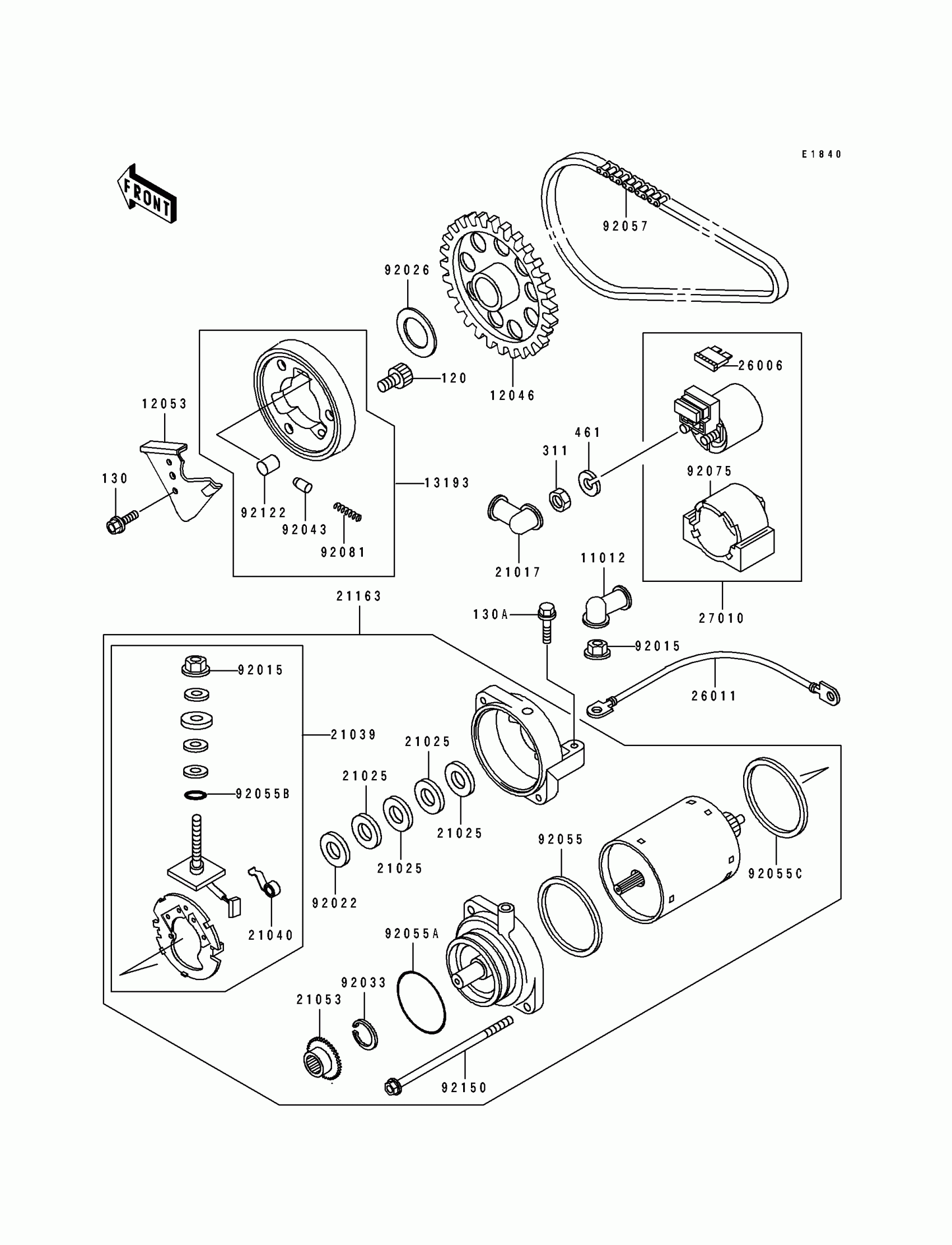

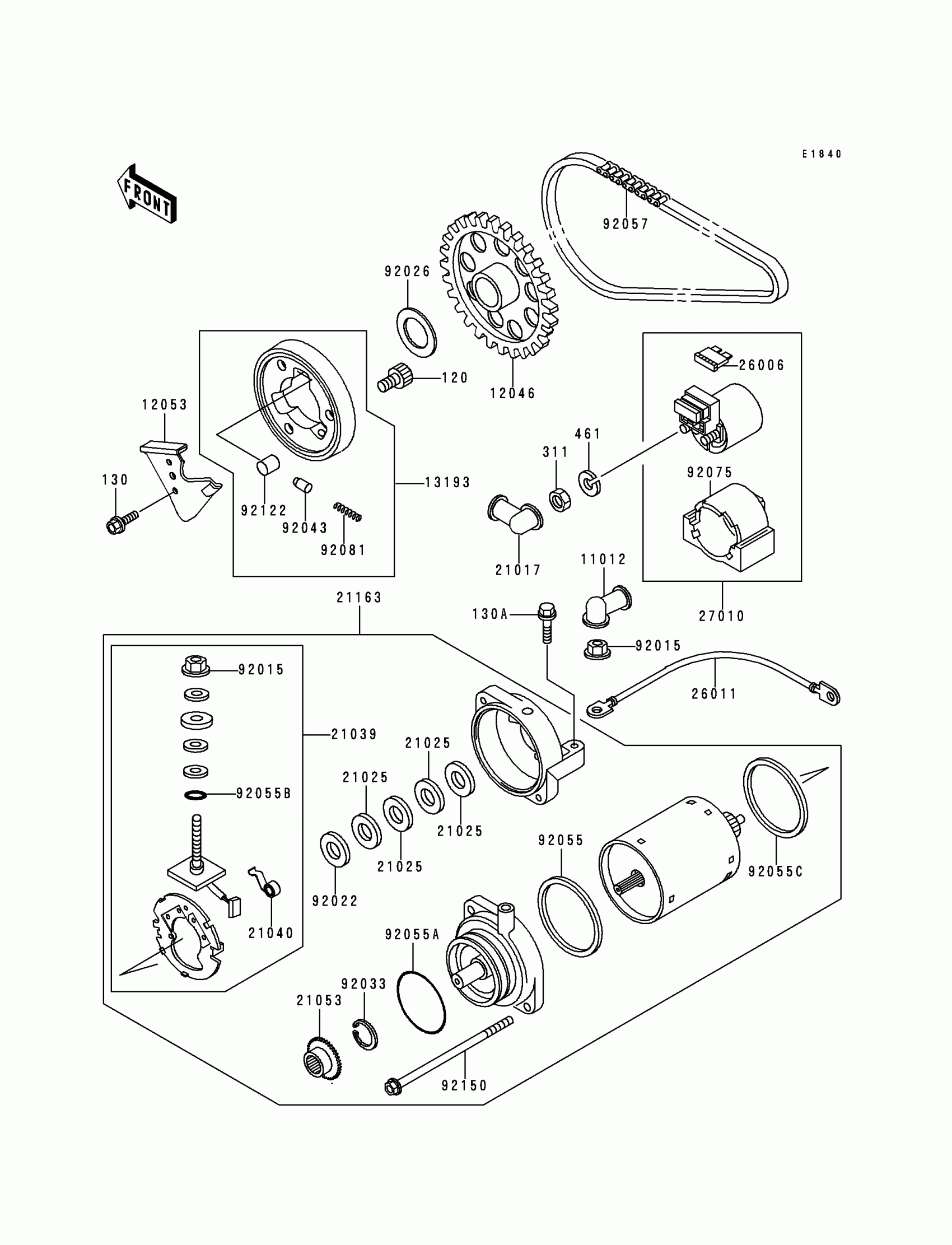

1994 Kawasaki Vulcan 500 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X16

120P0816

1
Out of stock

130

BOLT-FLANGED,6X20

130G0620

1
Out of stock

130A

BOLT-FLANGED,6X25

130Y0625

1
Out of stock

311

NUT 6MM

311B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock

11012

CAP,TERMINAL

11012-1354

1

$9.85

In stock

12046

1

$71.44

In stock

12053

GUIDE-CHAIN

12053-1214

1
Out of stock

13193

CLUTCH-ASSY-ONEWAY

13193-1060

1

$148.04

In stock

21017

1

$7.48

In stock

21025

WASHER,9.1X18X0.2

21025-011

1

$5.42

In stock

21039

BRUSH,CARBON

21039-1062

1

$88.27

In stock

21040

SPRING-BRUSH

21040-1057

1

$8.24

In stock

21053

SPROCKET-ASSY

21053-1057

1

$46.80

In stock

21163

STARTER-ELECTRIC

21163-1125

1

$682.63

In stock

26006

1

$4.39

In stock

26011

WIRE-LEAD,STARTER MOTOR

26011-1073

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1213

1
Out of stock

92015

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92022

WASHER,9.1X18X0.8

92022-1132

1

$5.42

In stock

92026

SPACER,25.2X40X1.0

92026-1285

1

$5.66

In stock

92033

RING-SNAP,17MM

92033-034

1

$10.31

In stock

92043

PIN

92043-087

1

$10.11

In stock

92055

RING-O,64MM

92055-1086

1

$9.68

In stock

92055A

RING-O,42.8MM

92055-1313

1

$8.44

In stock

92055B

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92055C

1

$9.58

In stock

92057

1

$52.59

In stock

92075

DAMPER,MAGNETIC SWITCH

92075-1863

1
Out of stock

92081

SPRING

92081-110

1

$3.78

In stock

92122

ROLLER,15X13

92122-004

1

$8.77

In stock

92150

BOLT,STARTER MOTOR

92150-1138

1

$9.27

In stock
