1994 Kawasaki Vulcan 500 Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

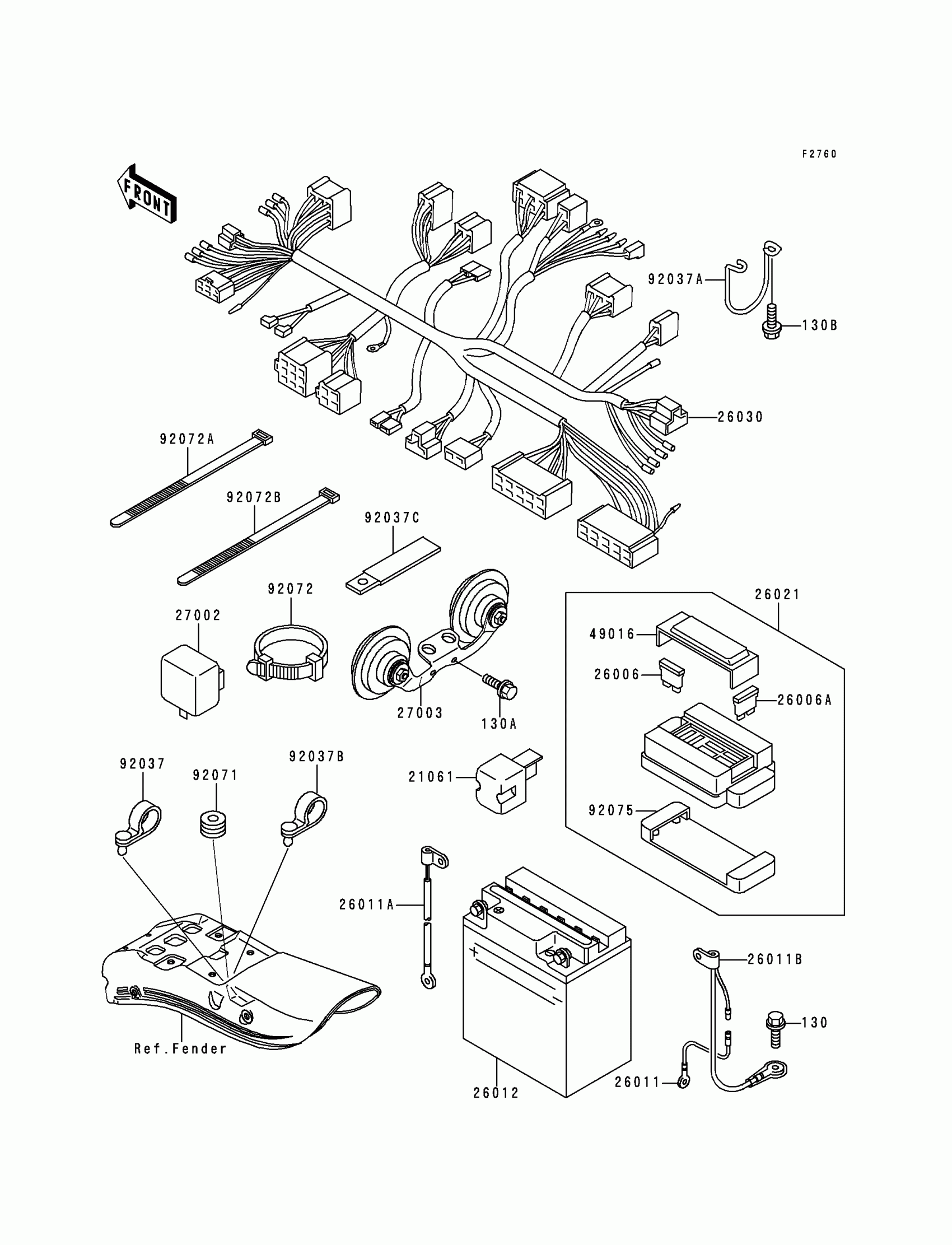

1994 Kawasaki Vulcan 500 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock

130A

BOLT-FLANGED,6X10

130C0610

1
Out of stock

130B

BOLT-FLANGED,6X14

130C0614

1
Out of stock

21061

RECTIFIER

21061-1003

1

$30.17

In stock

26006

FUSE,BLADE,30A,GREEN

26006-1067

1
Out of stock

26006A

FUSE,10A-R

26006-1068

1
Out of stock

26011

WIRE-LEAD,ACCESSORY GROUND

26011-1100

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-1466

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-1467

1
Out of stock

26012

1

$96.88

In stock

26021

JUNCTION BOX

26021-1077

1

$221.06

In stock

26030

HARNESS,MAIN

26030-1012

1
Out of stock

27002

1

$53.03

In stock

27003

HORN

27003-1323

1

$176.21

In stock

49016

COVER-SEAL,FUSE

49016-1125

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92037A

CLAMP,HARNESS

92037-1663

1
Out of stock

92037B

CLAMP,SPEED,L=80.5

92037-1903

1

$6.24

In stock

92037C

CLAMP

92037-1993

1

$4.37

In stock

92071

GROMMET

92071-056

1

$3.39

In stock

92072

BAND,L=149

92072-031

1

$3.97

In stock

92072A

BAND,L=202

92072-1195

1

$1.34

In stock

92072B

BAND,L=365

92072-1197

1

$7.71

In stock

92075

DAMPER,JUNCTION BOX

92075-1688

1

$13.64

In stock
