1994 Kawasaki Vulcan 500 Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

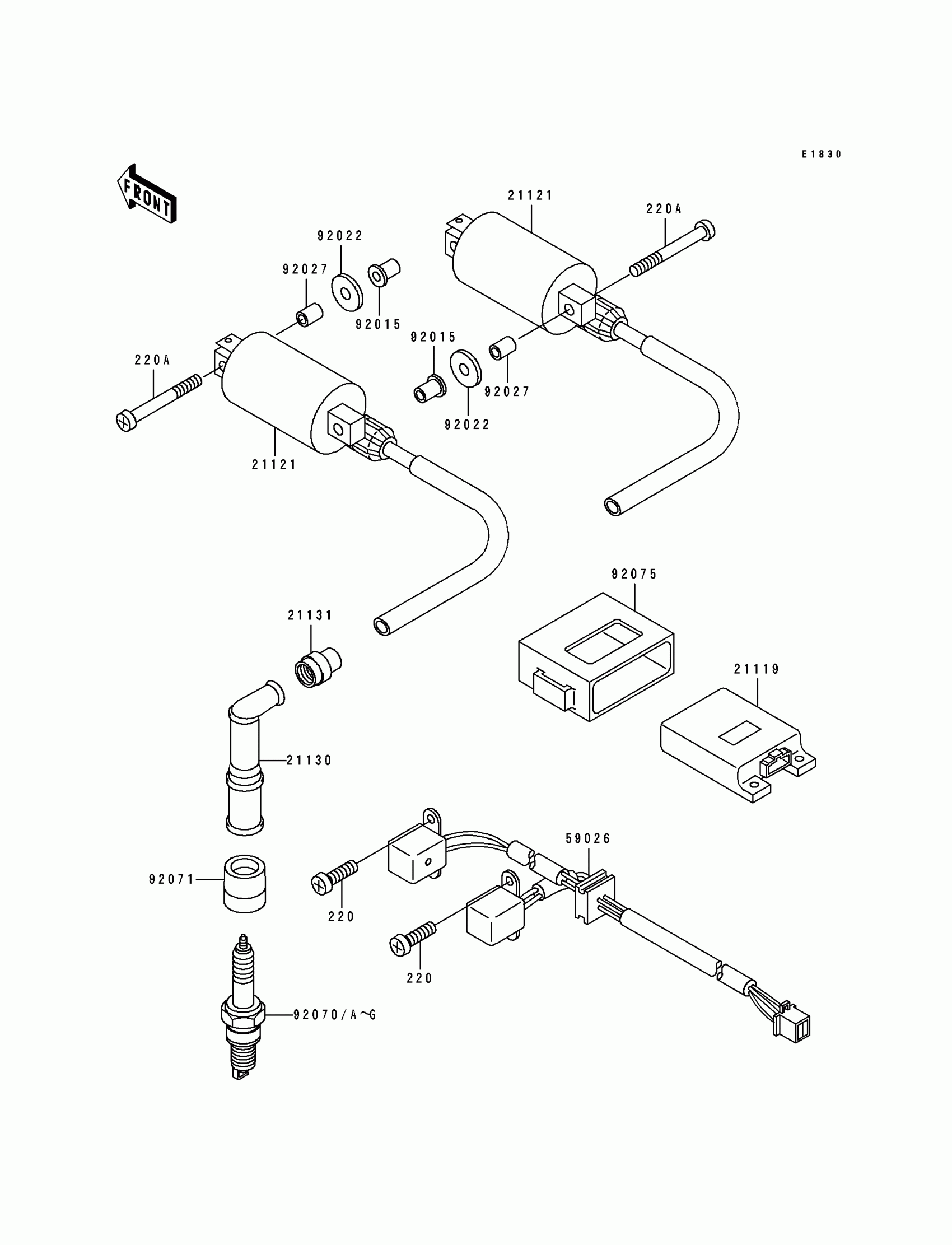

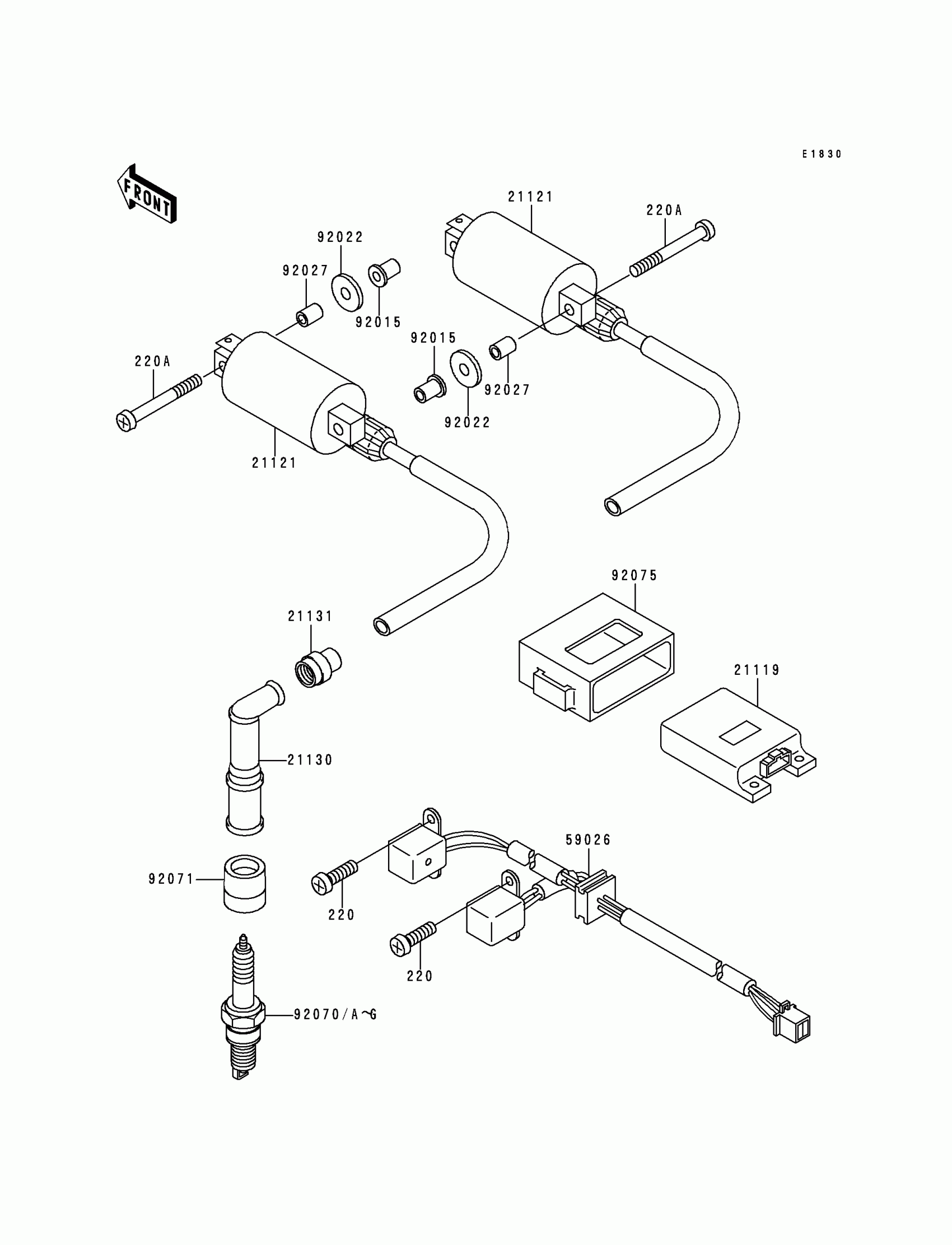

1994 Kawasaki Vulcan 500 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

220A

1

$1.19

In stock

21119

IGNITER

21119-1219

1
Out of stock

21121

COIL-IGNITION

21121-1189

1

$188.79

In stock

21130

CAP-SPARK PLUG

21130-1068

1

$42.67

In stock

21131

1

$4.88

In stock

59026

COIL-PULSING

59026-1066

1

$181.85

In stock

92015

NUT

92015-1700

1

$6.82

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR,6.8X10X23

92027-1870

1
Out of stock

92070F

Not Available As Spare Part - Friction Washer

1
Out of stock

92071

GROMMET,PLUG CAP

92071-1146

1

$10.14

In stock

92075

DAMPER,IGNITER

92075-1504

1

$39.52

In stock

92070

Not Available As Spare Part - Friction Washer

1
Out of stock

92070A

PLUG-SPARK,D8EA(NGK)

92070-1011

1
Out of stock

92070B

1

$9.24

In stock

92070C

Not Available As Spare Part - Friction Washer

1
Out of stock

92070D

1

$2.74

In stock

92070E

Not Available As Spare Part - Friction Washer

1
Out of stock

92070G

1

$2.92

In stock
