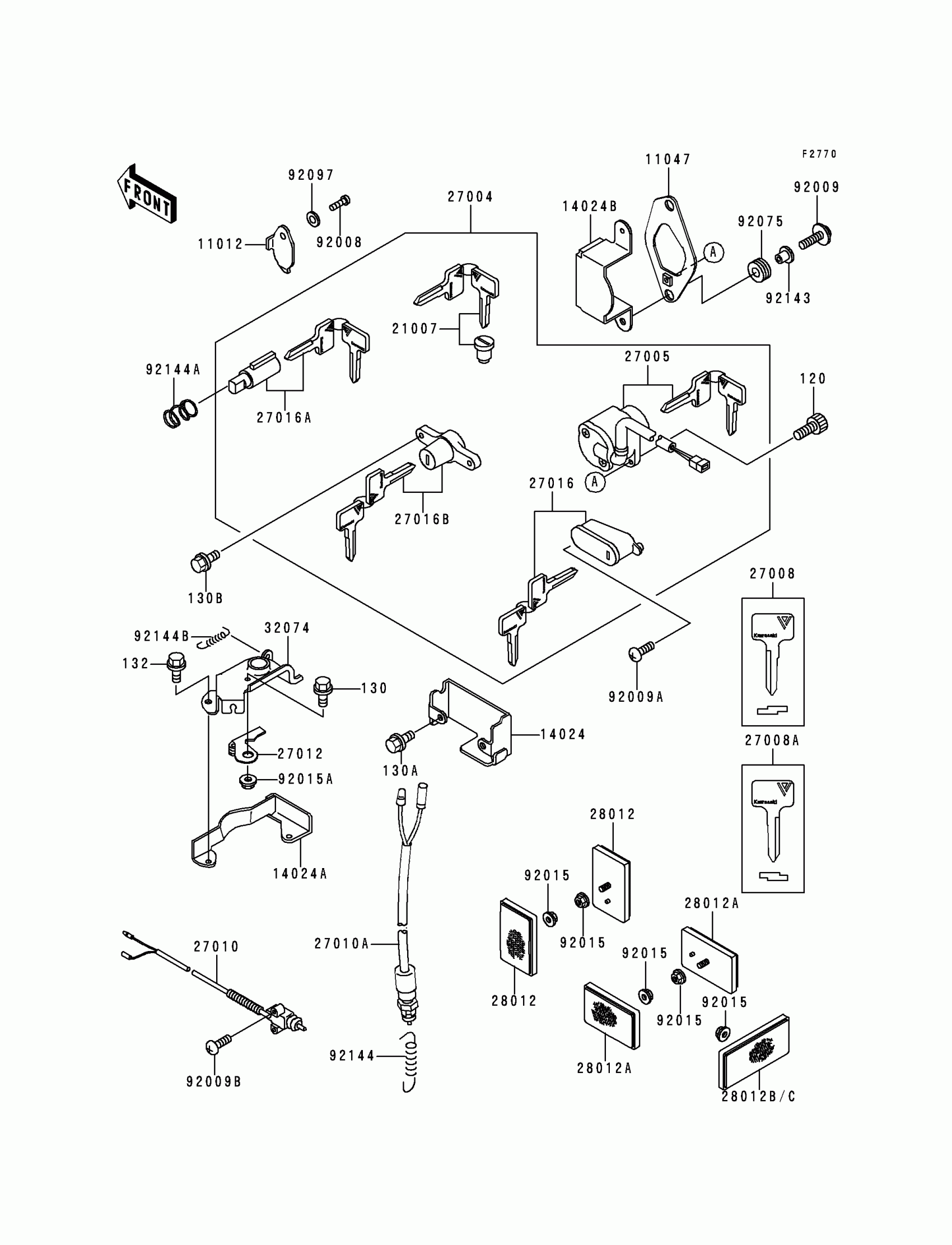

Kawasaki Vulcan 500 Ignition Switch/Locks/Refiectors Diagram

#

Description
Price

120

BOLT-SOCKET

120P0512

Unavailable

130

BOLT-FLANGED,5X10

130B0510

Unavailable

130A

BOLT-FLANGED

130C0510

Unavailable

130B

BOLT-FLANGED

130D0608

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132J0610

Unavailable

11012

CAP,STEERING LOCK

11012-1736

Unavailable

11047

BRACKET,IGNITION SWITCH

11047-1075

Unavailable

14024

COVER,SEAT LOCK,RR

14024-1882

Unavailable

14024A

COVER,SEAT LOCK,FR

14024-1952

Unavailable

14024B

COVER,IGNITION SWITCH

14024-1957

Unavailable

21007

ROTOR,LOCK,TANK CAP

21007-5024

$74.13

27004

SWITCH-ASSY

27004-5379

$398.86

27005

SWITCH-ASSY-IGNITION

27005-1148

Unavailable

27008

KEY-LOCK,BLANK,#A

27008-1138

$19.58

27008A

KEY-LOCK,BLANK,#B

27008-1139

$16.89

27010

SWITCH,SIDE STAND

27010-1223

$73.52

27010A

SWITCH,REAR BRAKE

27010-1238

$35.81

27012

HOOK,SEAT LOCK

27012-1421

Unavailable

27016

LOCK-ASSY,HELMET

27016-5129

$69.10

27016A

LOCK-ASSY,STEERING

27016-5131

$87.55

27016B

LOCK-ASSY,SEAT

27016-5162

$69.27

28012

REFLECTOR-REFLEX,FR

28012-1009

Unavailable

28012A

REFLECTOR-REFLEX,RR

28012-1051

$24.63

28012C

REFLECTOR-REFLEX

28012-1077

$21.76

32074

BRACKET-LOCK,SEAT

32074-1141

Unavailable

92008

SCREW,3.51MM

92008-007

$3.14

92009

SCREW,6X22,BLACK

92009-1256

$1.96

92009A

SCREW,5X12

92009-1296

$3.53

92009B

SCREW,5X20

92009-1459

$3.92

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92015A

NUT,5MM

92015-1812

Unavailable

92075

DAMPER RUBBER

92075-051

$2.99

92097

WASHER,WAVE

92097-003

$3.43

92143

COLLAR,L=7.4

92143-1019

$3.60

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$4.14

92144A

SPRING,STEERING LOCK

92144-1222

$3.98

92144B

SPRING

92144-1520

Unavailable
