1994 Kawasaki Vulcan 500 Battery Case Diagram

← All diagrams

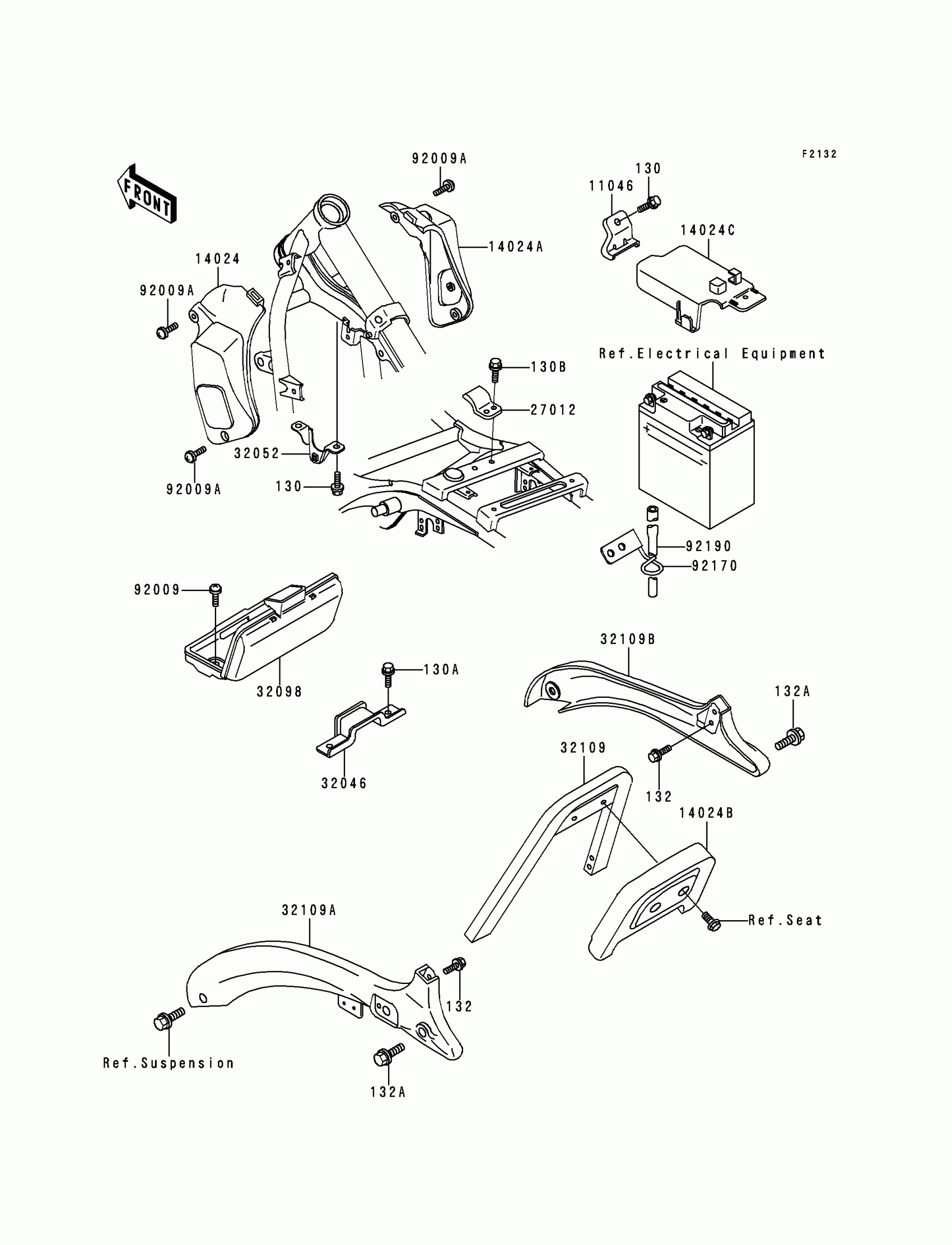

Find the part on the Battery Case diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Kawasaki Vulcan 500 Battery Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130D0610

1
Out of stock

130A

BOLT-FLANGED,6X20

130D0620

1
Out of stock

130B

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

132

1

$3.72

In stock

132A

1

$3.72

In stock

11046

BRACKET,JUNCTION BOX

11046-1915

1
Out of stock

14024

COVER,HEAD GUSSET,LH

14024-1105

1
Out of stock

14024A

COVER,HEAD GUSSET,RH

14024-1106

1
Out of stock

14024B

COVER,BACK REST

14024-1879

1
Out of stock

14024C

COVER,BATTERY

14024-1880

1
Out of stock

27012

HOOK,SEAT

27012-1429

1
Out of stock

32046

BRACKET-SEAT,RR

32046-1340

1

$12.31

In stock

32052

BRACKET-TANK

32052-1179

1

$12.17

In stock

32098

CASE-TOOL

32098-1052

1

$34.00

In stock

32109

GRIP-FRAME,UPP

32109-1201

1
Out of stock

32109A

GRIP-FRAME,LH

32109-1213

1
Out of stock

32109B

GRIP-FRAME,RH

32109-1214

1
Out of stock

92009

SCREW,6X22,BLACK

92009-1256

1
Out of stock

92009A

SCREW,6X14

92009-1288

1
Out of stock

92170

CLAMP,HOSE

92170-1181

1

$18.44

In stock

92190

TUBE,BATTERY VENT HOSE

92190-1140

1
Out of stock
