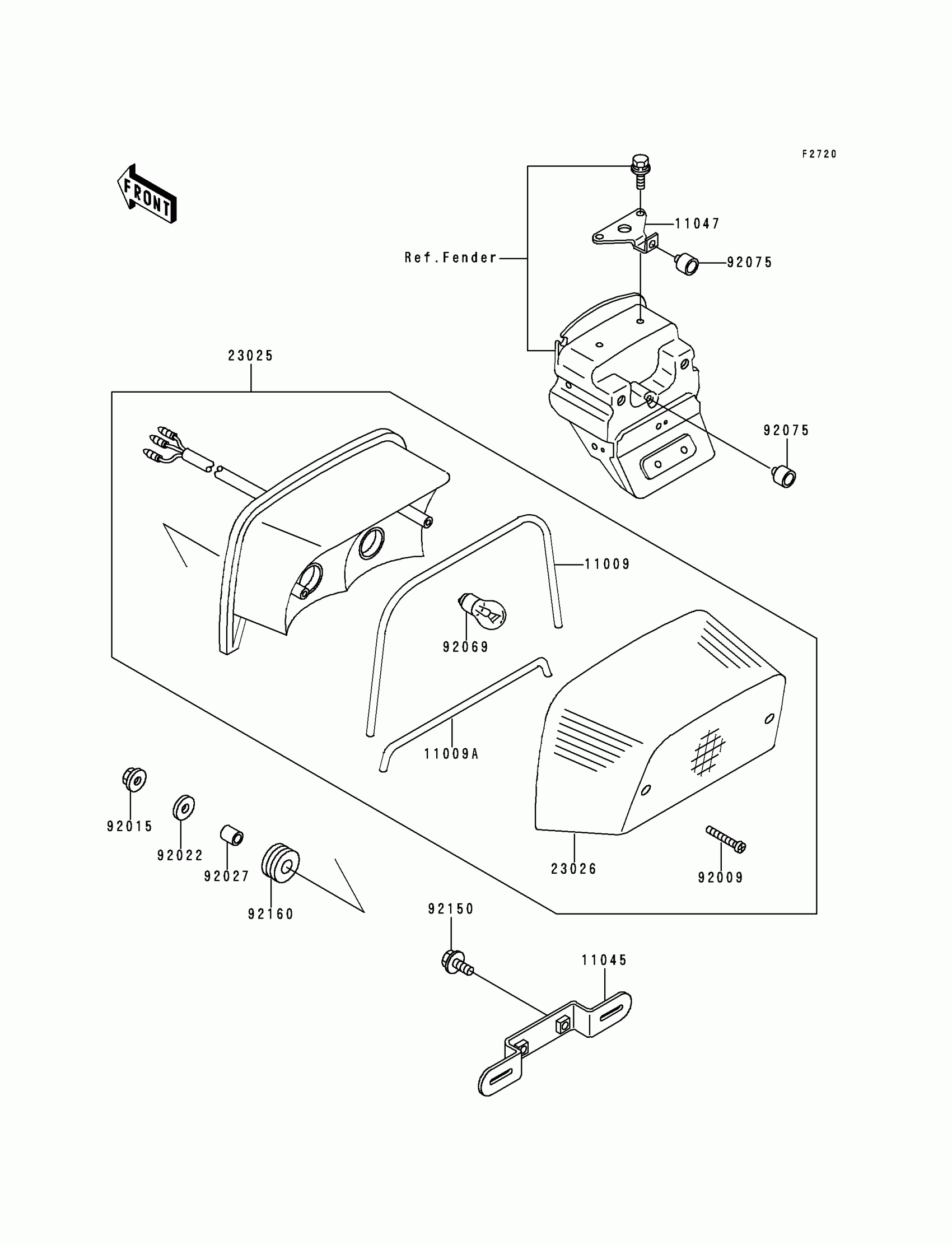

Kawasaki Vulcan 500 Taillight Diagram

Description

Price

11009

GASKET,TAIL LAMP LENS

11009-1811

$9.47

11009A

GASKET,TAIL LAMP LENS

11009-1812

$7.44

11045

BRACKET,LICENSE

11045-1387

$13.20

11047

BRACKET,REAR FENDER

11047-1074

Unavailable

23025

LAMP-TAIL

23025-1199

$124.32

23026

LENS,TAIL LAMP

23026-1122

$50.94

92009

SCREW,TAPPING,4X30

92009-1506

$3.53

92015

NUT,FLANGED,6MM

92015-1367

$2.93

92022

WASHER,6.5X20X1.6

92022-1557

$1.25

92027

COLLAR,6.8X10X12

92027-162

$5.21

92069

BULB,12V 27/8W

92069-059

$6.45

92075

DAMPER

92075-035

$3.65

92150

BOLT,6X14

92150-1133

$3.57

92160

DAMPER

92160-1162

$3.97
