Partiron

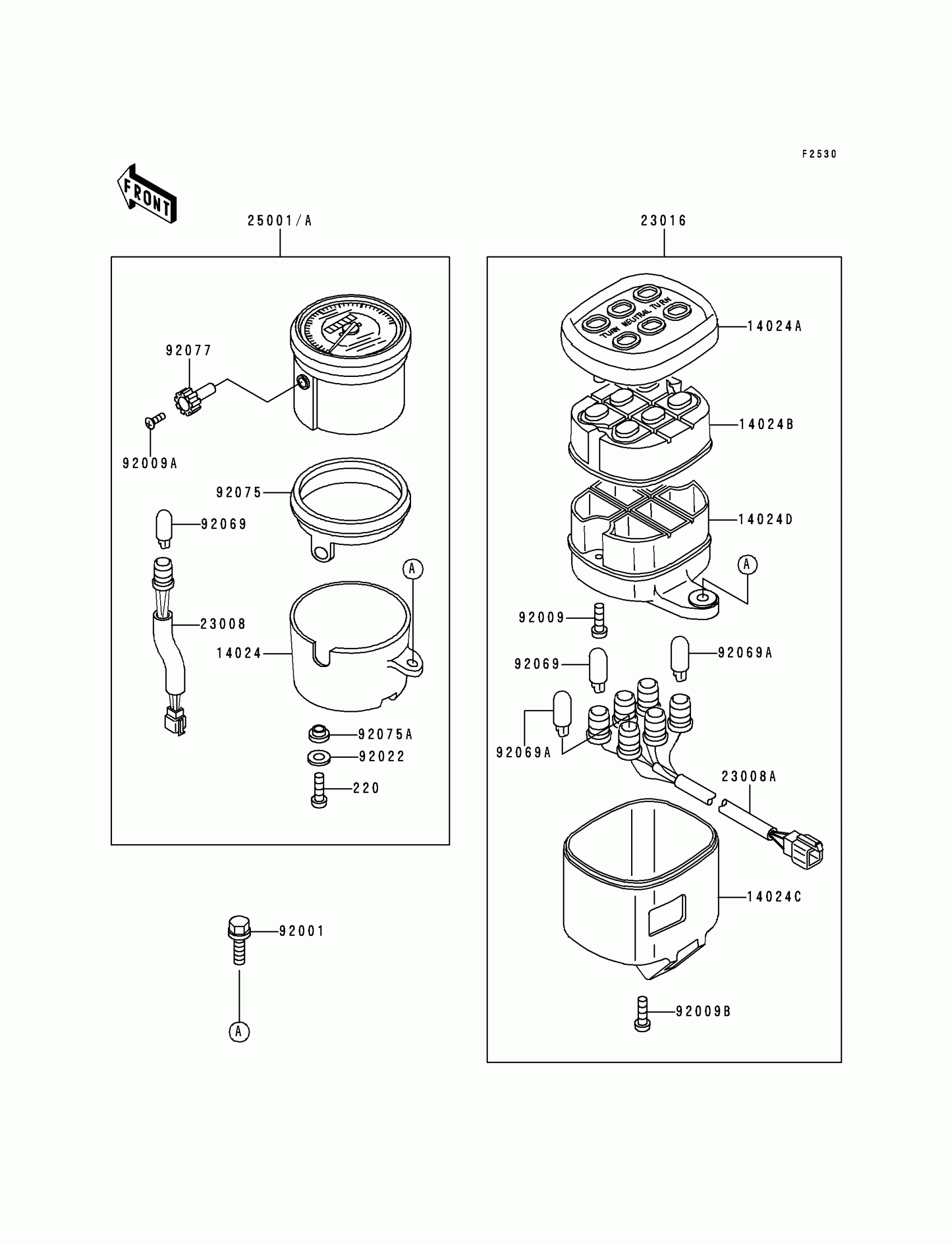

Kawasaki Vulcan 500 Meters Diagram

#

Description
Price

220

SCREW-PAN-CROS,4X8

220E0408

Unavailable

14024

COVER,SPEEDOMETER

14024-1096

Unavailable

14024A

COVER,PILOT BOX,UPP

14024-1883

Unavailable

14024B

COVER,PILOT BOX,INNER

14024-1884

Unavailable

14024C

COVER,PILOT BOX,LWR

14024-1885

Unavailable

14024D

COVER,PILOT BOX,INNER

14024-1886

$48.40

23008

SOCKET-ASSY,SPEEDOMETER

23008-1356

$20.20

23008A

SOCKET-ASSY,PILOT BOX

23008-1418

$85.28

23016

LAMP-ASSY,PILOT BOX

23016-1108

$239.44

92001

BOLT,6X20

92001-1460

$3.12

92009

SCREW,TAPPING,4X16

92009-1163

$3.26

92009A

SCREW,2X6,BLACK

92009-1172

$2.15

92009B

SCREW,TAPPING,4X16

92009-1601

Unavailable

92022

WASHER,4.5X10X0.8

92022-1822

Unavailable

92069

BULB,12V 3.4W,T10

92069-1007

$3.97

92069A

BULB,12V 1.7W,T10

92069-1059

$3.94

92075

DAMPER,SHOCK,METER

92075-1751

$12.38

92075A

DAMPER,METER FITTING

92075-1753

$4.72

92077

KNOB,METER

92077-1059

$7.36

25001

METER-ASSY,SPEED,MPH

25001-1704

Unavailable

25001A

METER-ASSY,SPEED,KPH

25001-1731

Unavailable
