1996 Kawasaki Vulcan 500 Meter Diagram

← All diagrams

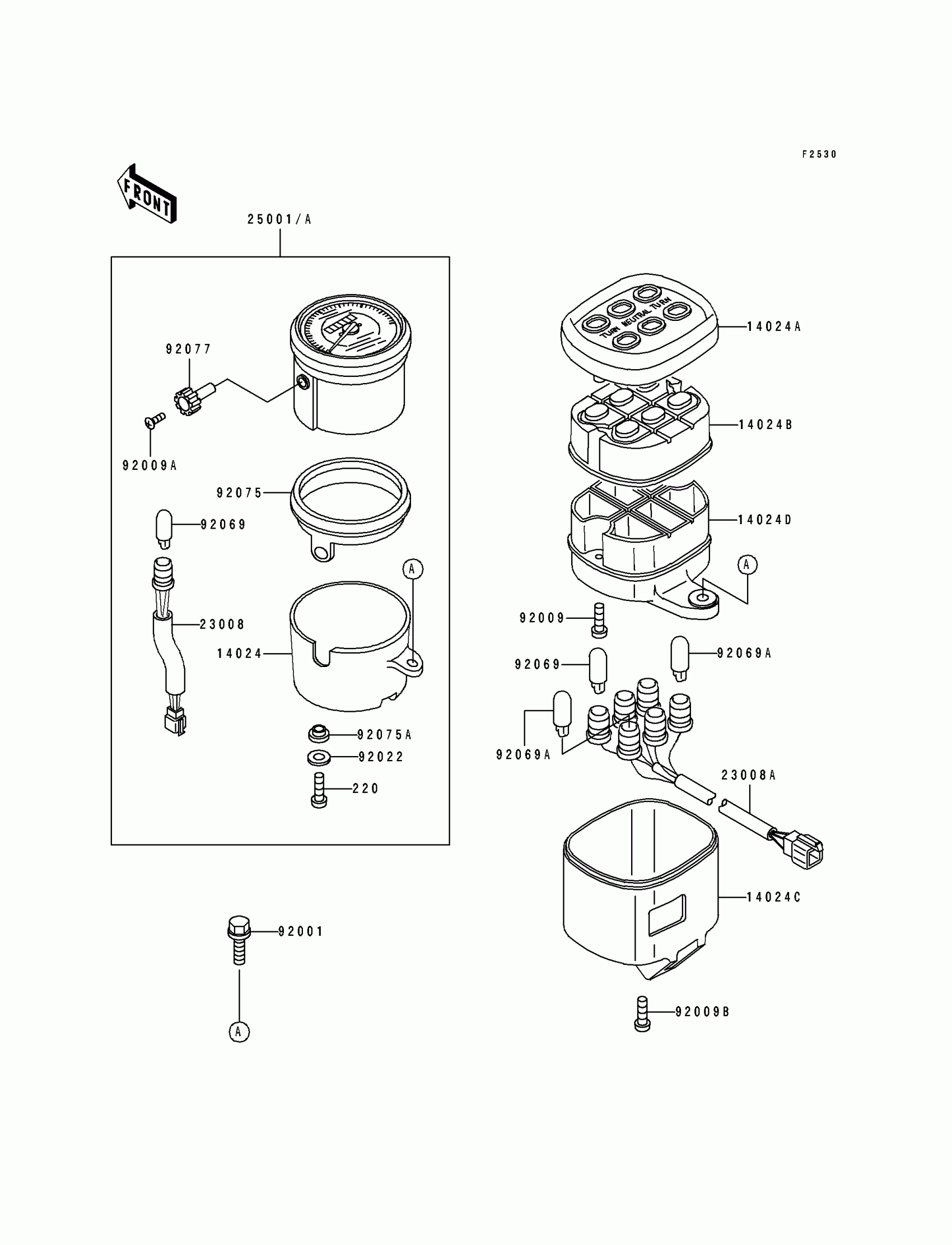

Find the part on the Meter diagram for your 1996 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki Vulcan 500 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,SPEEDOMETER

14024-1096

1
Out of stock

14024A

COVER,PILOT BOX,UPP

14024-1883

1
Out of stock

14024B

COVER,PILOT BOX,INNER

14024-1884

1
Out of stock

14024C

COVER,PILOT BOX,LWR

14024-1885

1
Out of stock

14024D

COVER,PILOT BOX,INNER

14024-1886

1
Out of stock

23008

1

$20.20

In stock

23008A

1

$85.28

In stock

25001

METER-ASSY,SPEED,MPH

25001-1704

1
Out of stock

92001

BOLT,6X20

92001-1460

1

$3.12

In stock

92009

SCREW,TAPPING,4X16

92009-1163

1
Out of stock

92009A

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92009B

SCREW,TAPPING,4X16

92009-1601

1
Out of stock

92022

WASHER,4.5X10X0.8

92022-1822

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,12V 1.7W,T10

92069-1059

1

$3.94

In stock

92075

DAMPER,SHOCK,METER

92075-1751

1

$12.38

In stock

92075A

1

$4.72

In stock

92077

KNOB,METER

92077-1059

1

$7.36

In stock

220

SCREW-PAN-CROS,4X8

220E0408

1
Out of stock
