1996 Kawasaki Vulcan 500 Headlight Diagram

← All diagrams

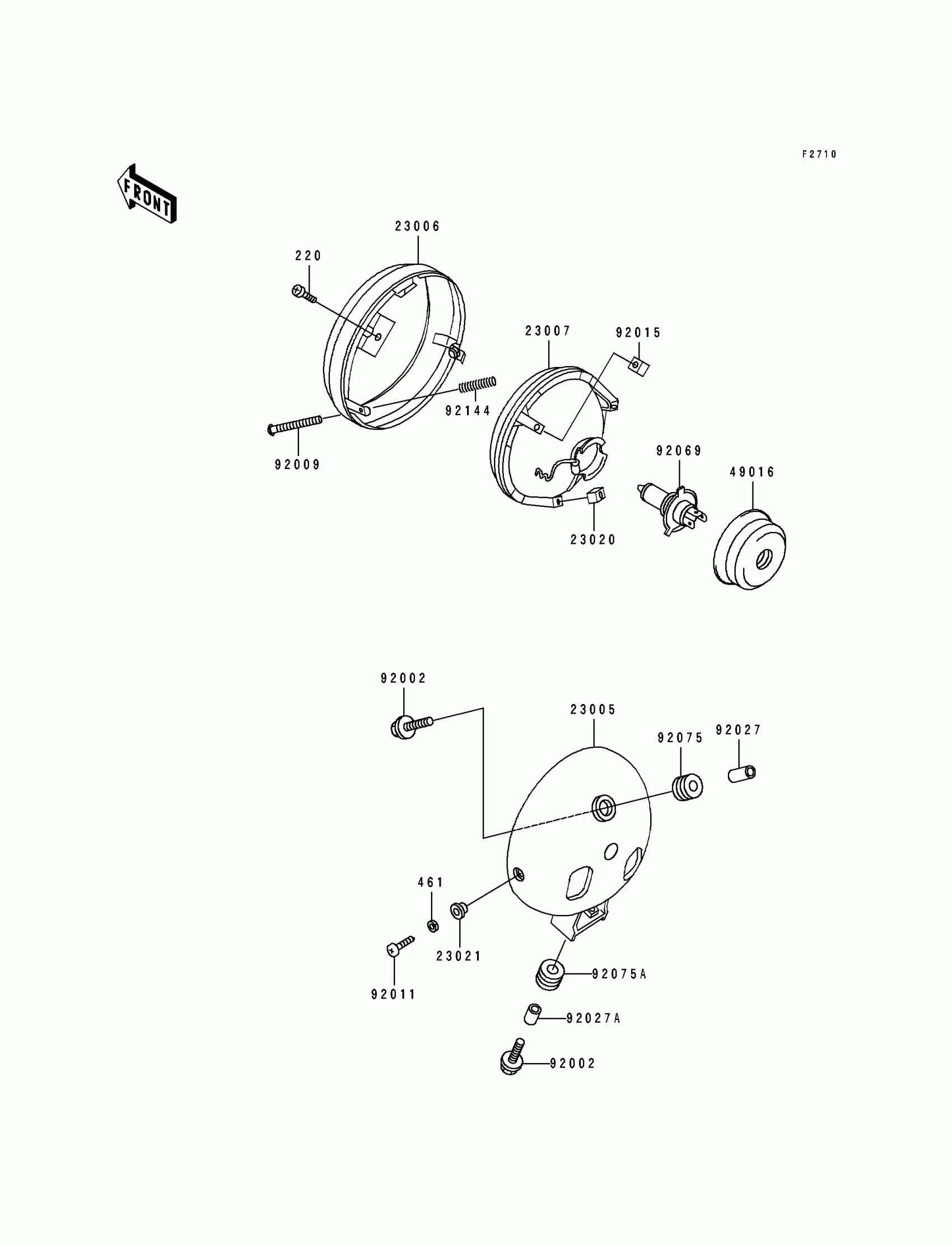

Find the part on the Headlight diagram for your 1996 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki Vulcan 500 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23005

BODY-COMP-HEAD LAMP

23005-1105

1

$146.47

In stock

23006

RIM-LAMP

23006-1059

1

$100.81

In stock

23007

LENS-COMP,HEAD LAMP

23007-1169

1

$156.62

In stock

23020

1

$3.69

In stock

23021

WASHER

23021-010

1

$3.43

In stock

49016

1

$9.69

In stock

92002

BOLT,6X25

92002-1135

1

$3.85

In stock

92009

SCREW,FOCUS ADJUST,4X65

92009-1472

1
Out of stock

92011

SCREW,5MM

92011-024

1
Out of stock

92015

NUT,5MM

92015-1157

1
Out of stock

92027

COLLAR,6.8X10X14.5

92027-156

1

$3.97

In stock

92027A

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92075

DAMPER

92075-1035

1

$4.58

In stock

92075A

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92144

SPRING,FOCUS ADJUST

92144-1149

1

$7.98

In stock

220

1

$0.51

In stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock
