1996 Kawasaki Vulcan 500 Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 1996 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

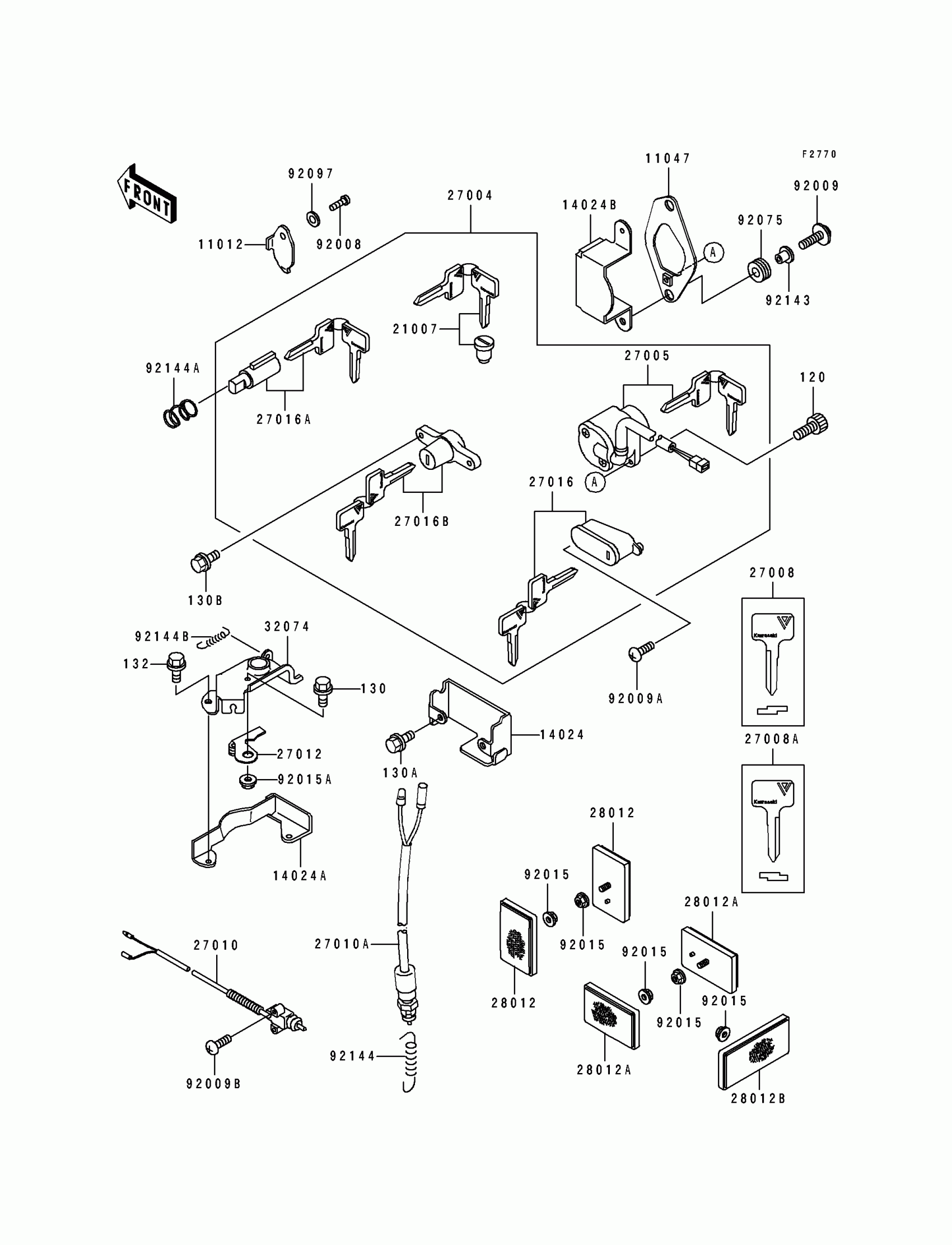

1996 Kawasaki Vulcan 500 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,STEERING LOCK

11012-1736

1
Out of stock

11047

BRACKET,IGNITION SWITCH

11047-1075

1
Out of stock

14024

COVER,SEAT LOCK,RR

14024-1882

1
Out of stock

14024A

COVER,SEAT LOCK,FR

14024-1952

1
Out of stock

14024B

COVER,IGNITION SWITCH

14024-1957

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5024

1

$74.13

In stock

27004

SWITCH-ASSY

27004-5379

1

$398.86

In stock

27005

SWITCH-ASSY-IGNITION

27005-1148

1
Out of stock

27008

KEY-LOCK,BLANK,#A

27008-1138

1

$19.58

In stock

27008A

KEY-LOCK,BLANK,#B

27008-1139

1

$19.34

In stock

27010

SWITCH,SIDE STAND

27010-1223

1

$73.52

In stock

27010A

SWITCH,REAR BRAKE

27010-1238

1

$35.81

In stock

27012

HOOK,SEAT LOCK

27012-1421

1
Out of stock

27016

LOCK-ASSY,HELMET

27016-5129

1

$69.10

In stock

27016A

LOCK-ASSY,STEERING

27016-5131

1

$87.55

In stock

27016B

LOCK-ASSY,SEAT

27016-5162

1

$69.27

In stock

28012

REFLECTOR-REFLEX,FR

28012-1009

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1051

1

$24.63

In stock

28012B

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

32074

BRACKET-LOCK,SEAT

32074-1141

1
Out of stock

92008

SCREW,3.51MM

92008-007

1
Out of stock

92009

SCREW,6X22,BLACK

92009-1256

1
Out of stock

92009A

SCREW,5X12

92009-1296

1
Out of stock

92009B

SCREW,5X20

92009-1459

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92015A

NUT,5MM

92015-1812

1
Out of stock

92075

DAMPER RUBBER

92075-051

1

$2.34

In stock

92097

WASHER,WAVE

92097-003

1

$3.57

In stock

92143

COLLAR,L=7.4

92143-1019

1

$3.75

In stock

92144

1

$4.34

In stock

92144A

1

$3.98

In stock

92144B

SPRING

92144-1520

1
Out of stock

120

BOLT-SOCKET

120P0512

1
Out of stock

130

BOLT-FLANGED,5X10

130B0510

1
Out of stock

130A

BOLT-FLANGED

130C0510

1
Out of stock

130B

BOLT-FLANGED

130D0608

1
Out of stock

132

BOLT-FLANGED-SMALL,6X10

132J0610

1
Out of stock
