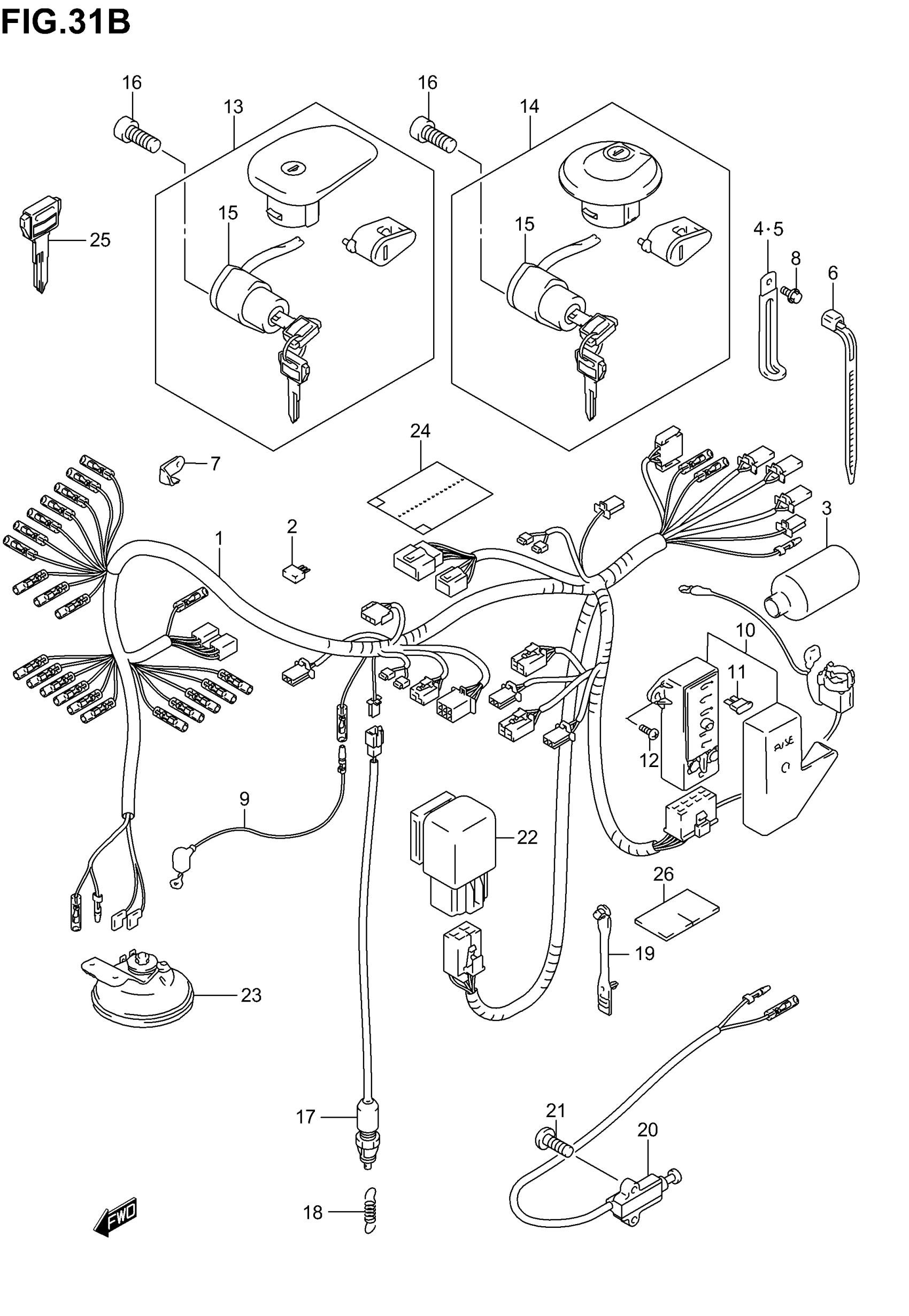

Suzuki VS800GL (2005) WIRING HARNESS (MODEL K5) Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2 - 3

36610-39AK0

Unavailable

2

.DIODE | FOR SIDE STAND This part replaces 36611-38A00.

36611-38A10

$12.39

3

BOOT, WIRING HARNESS

36618-30000

$10.17

4

CLAMP This part replaces 09404-06431.

09404-06039

$1.73

5

CLAMP (L:45)

09404-06429

$1.82

6

CLAMP (L:125)

09407-14403

$2.24

6

CLAMP (L:165)

09407-18402

$2.21

7

PLATE, COUPLER HOLDER

36687-38A00

Unavailable

8

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

9

WIRE, WATER TEMP GAUGE

36851-17E00

Unavailable

10

FUSE BOX ASSY | Includes Item(s) 11 - 11

36740-39A00

$113.83

11

FUSE (10A)

09481-10101

$0.68

11

FUSE (25A)

09481-25103

Unavailable

12

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

13

LOCK SET

37000-38870

Unavailable

14

LOCK SET | E33; Includes Item(s) 15

37000-38880

Unavailable

15

SWITCH ASSY, IGNITION

37110-38A04

$112.35

16

BOLT This part replaces 07130-05163.

07130-0516A

$2.51

17

SWITCH ASSY, STOP LAMP

37740-45D00

$20.62

18

SPRING

09443-06046

$2.84

19

CLAMP, SIDE STAND

09407-05403

$2.58

20

SWITCH ASSY,SD This part replaces 37840-39A22.

37840-39A23

$122.53

21

SCREW This part replaces 02112-76203.

02112-7620B

$2.80

22

RELAY ASSY, SIDE STAND

38740-24X50

$41.38

23

HORN ASSY

38500-39A00

$152.47

24

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$21.28

25

KEY, BLANK (TYPE C) | OPT

37146-03A00

$9.32

25

KEY, BLANK (TYPE D) | OPT

37146-03A10

$13.13

25

KEY, BLANK (TYPE E) | OPT

37146-03A20

$13.65

25

KEY, BLANK (TYPE F) | OPT

37146-03A30

$9.68

26

PROTECTOR (120X50X3) | CUT AS REQUIRED PROFILE (30X50)

36920-02200

$3.80
