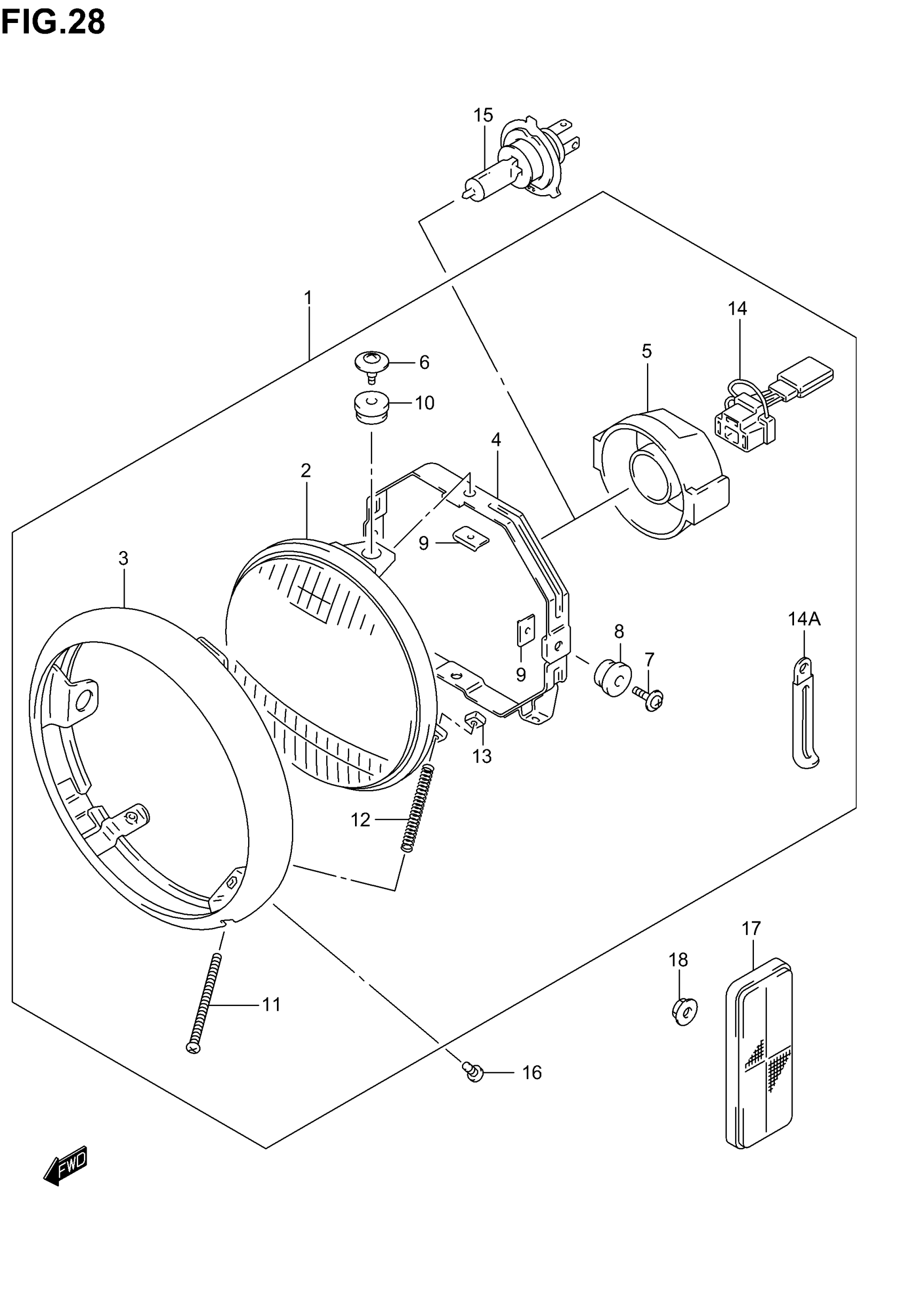

Suzuki VS800GL (2005) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | MODEL K1 This part replaces 35100-38A60-999.

35100-38A62-999

$308.58

1

HEADLAMP ASSY | MODEL K2/K3/K4/K5; Includes Item(s) 2 - 14A This part replaces 35100-38A61-999.

35100-38A62-999

$308.58

2

UNIT, LAMP

35121-38A60

$171.60

3

RIM

35111-38A60

$54.45

4

RING, MOUNTING

35130-38A00

$19.68

5

COVER, SOCKET

35173-13E10

$27.95

6

SCREW

35136-38A60

Unavailable

7

.SCREW MOUNTING

35136-38A00

$4.53

8

CUSHION

35139-45230

$2.25

9

NUT

35155-38A60

$4.70

10

CUSHION

35139-38A60

$4.62

11

SCREW, ADJUST

35151-38A00

$4.10

12

SPRING

35154-31300

$3.49

13

.NUT

35152-45600

$3.92

14

SOCKET

36853-38A00

$15.70

14A

CLAMP This part replaces 09404-06432.

09404-06039

$1.73

15

BULB (12V,60/55W)

09471-12060

$22.69

16

SCREW

02142-05127

$1.97

17

REFLEX REFLECTOR ASSY, FRONT

35950-43431

$20.13

18

NUT This part replaces 08310-00053.

08310-0005A

$1.83
