2005 Suzuki VS800GL Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2005 Suzuki VS800GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

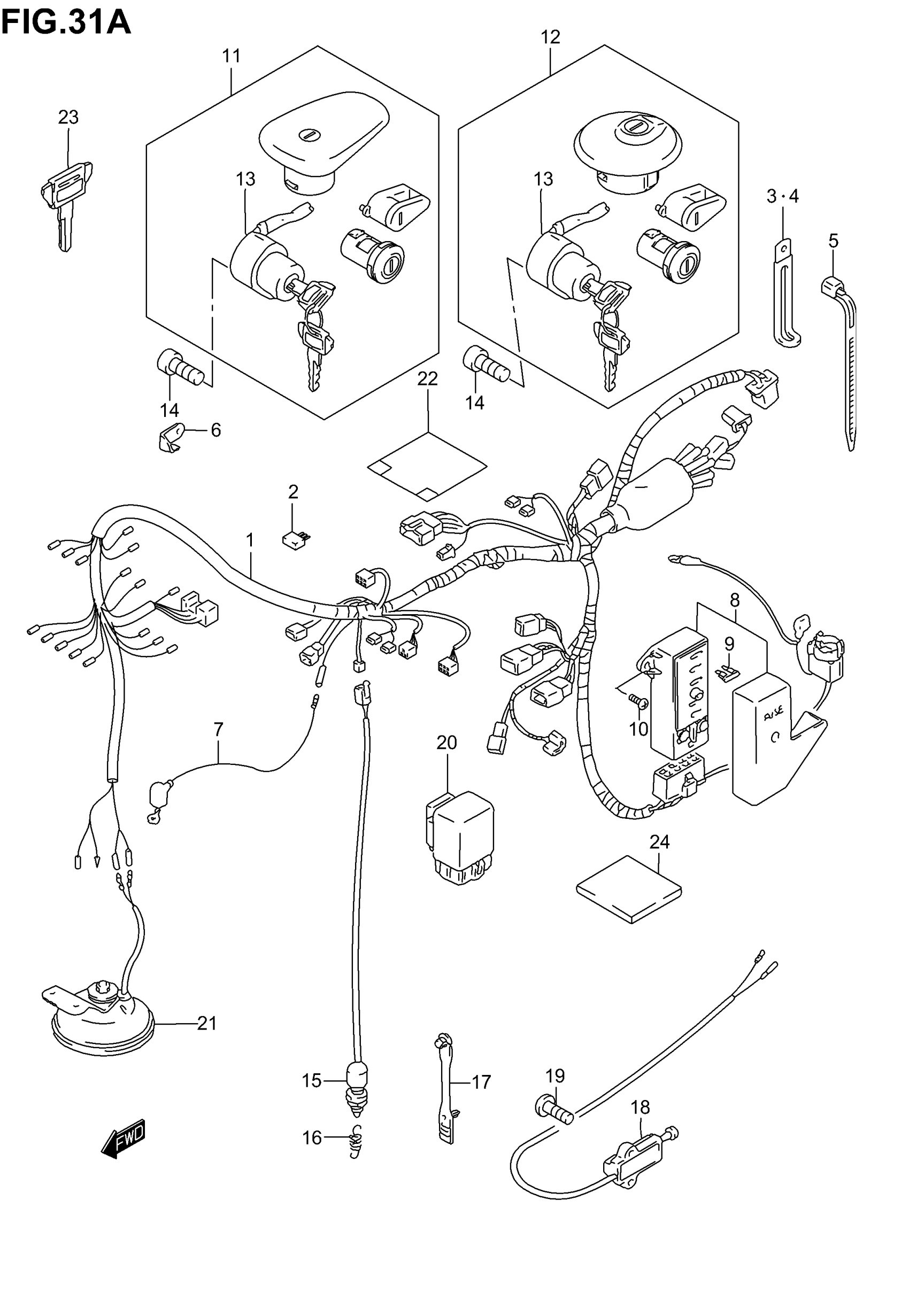

2005 Suzuki VS800GL Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | Includes Item(s) 2

36610-39AJ0

1
Out of stock

2

.DIODE | FOR SIDE STAND This part replaces 36611-38A00.

36611-38A10

1
Out of stock

3

CLAMP This part replaces 09404-06431.

09404-06039

3
Out of stock

4

CLAMP (L:45)

09404-06429

2
Out of stock

5

CLAMP (L:125)

09407-14403

4
Out of stock

5

CLAMP (L:165)

09407-18402

7
Out of stock

6

PLATE, COUPLER HOLDER

36687-38A00

1
Out of stock

7

WIRE, WATER TEMP GAUGE

36851-17E00

1
Out of stock

8

FUSE BOX ASSY | Includes Item(s) 9 - 9

36740-39A00

1
Out of stock

9

FUSE (10A)

09481-10101

5
Out of stock

9

FUSE (25A)

09481-25103

2
Out of stock

10

SCREW This part replaces 02142-06163.

02142-0616A

2
Out of stock

11

LOCK SET This part replaces 37100-38835.

37100-38836

1
Out of stock

12

LOCK SET | E33; Includes Item(s) 13

37000-38840

1
Out of stock

13

SWITCH ASSY, IGNITION

37110-38A04

1
Out of stock

14

BOLT This part replaces 07130-05163.

07130-0516A

1
Out of stock

15

SWITCH ASSY, STOP LAMP

37740-31D00

1
Out of stock

16

SPRING

09443-06046

1
Out of stock

17

CLAMP, SIDE STAND

09407-05403

1
Out of stock

18

SWITCH ASSY,SD This part replaces 37840-39A22.

37840-39A23

1
Out of stock

19

SCREW This part replaces 02112-76203.

02112-7620B

2
Out of stock

20

RELAY ASSY, SIDE STAND

38740-24X50

1
Out of stock

21

HORN ASSY

38500-39A00

1
Out of stock

22

1

$21.28

In stock

23

KEY, BLANK (TYPE C) | OPT

37146-03A00

1
Out of stock

23

KEY, BLANK (TYPE D) | OPT

37146-03A10

1
Out of stock

23

KEY, BLANK (TYPE E) | OPT

37146-03A20

1
Out of stock

23

KEY, BLANK (TYPE F) | OPT

37146-03A30

1
Out of stock

24

PROTECTOR

36920-02200

1
Out of stock
