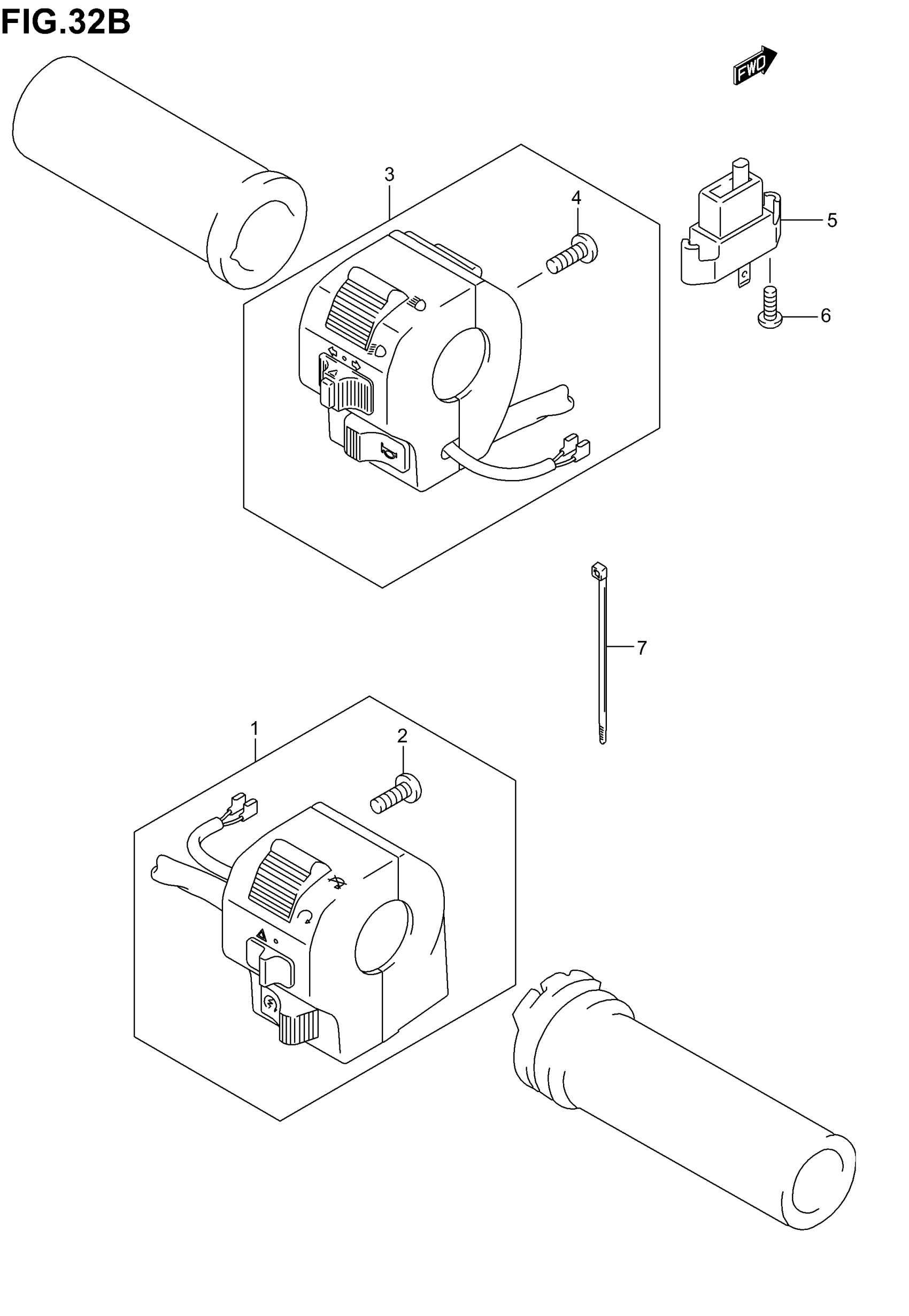

Suzuki VS800GL (2005) HANDLE SWITCH (MODEL K5) Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | Includes Item(s) 2

37200-38AG0

$277.65

2

SCREW

02112-05167

$2.01

3

SWITCH ASSY, HANDLE LH | Includes Item(s) 4 This part replaces 37400-38AG0.

37400-38AF0

$378.73

4

SCREW

02112-05167

$2.01

5

SWITCH ASSY, CLUTCH

37560-38A00

$17.70

6

SCREW

02142-03127

$2.43

7

CLAMP, HANDLE SWITCH

09407-14407

$2.84
