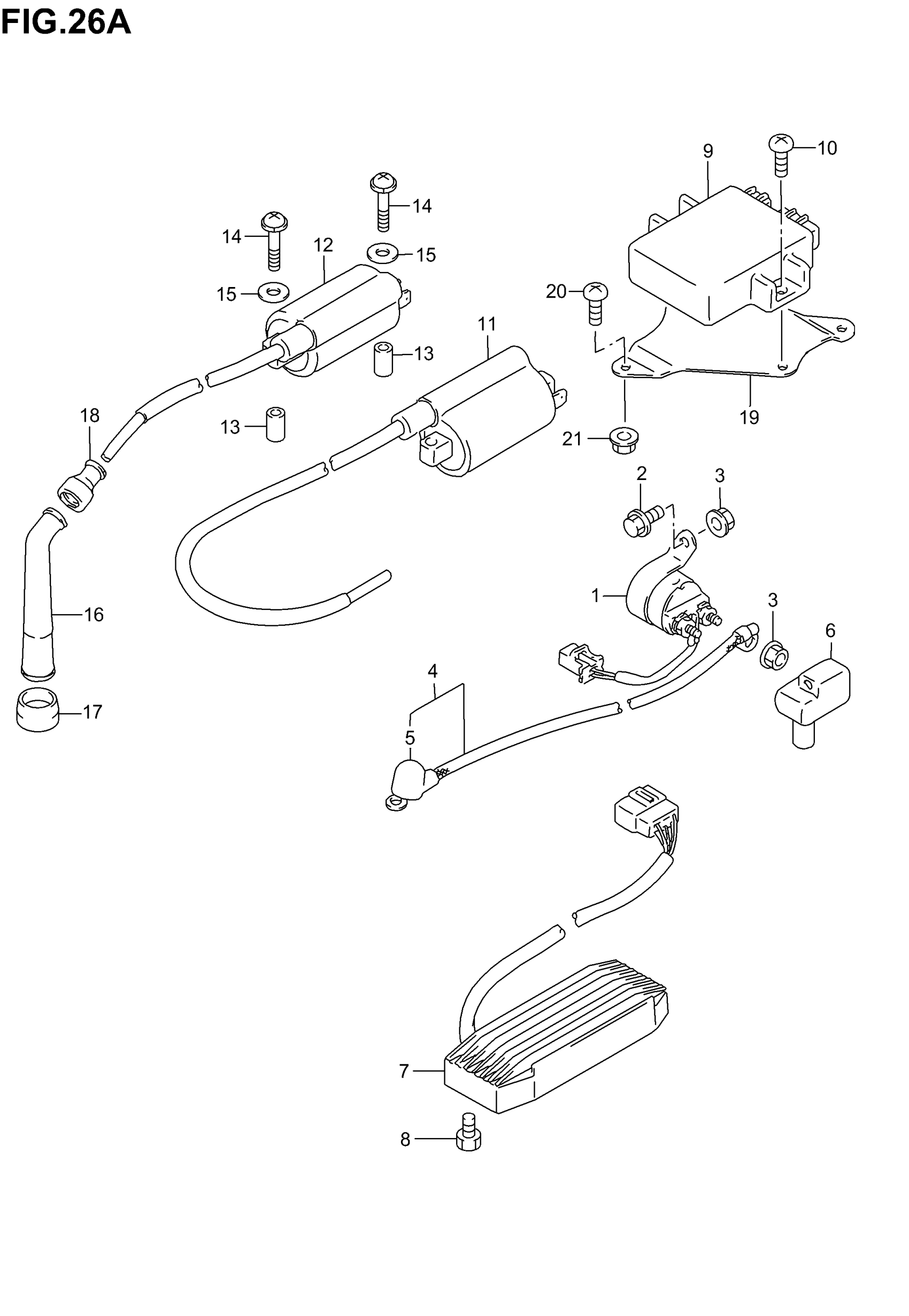

Suzuki VS800GL (2005) ELECTRICAL (MODEL K5) Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-15501

$89.51

2

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

3

NUT This part replaces 08361-35068.

08361-3506A

$1.81

4

LEAD WIRE, STARTING MOTOR | Includes Item(s) 5

33850-38A00

$27.55

5

CAP, STARTER MOTOR

31861-48B10

$7.40

6

CAP, STARTER RELAY

31861-38A00

$8.88

7

RECTIFIER ASSY

32800-12E01

$356.60

8

BOLT This part replaces 01500-06103.

01500-0610B

$1.82

9

IGNITER UNIT

32900-38A31

Unavailable

10

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

11

COIL, IGNITION (CORD L:300) | REAR

33410-38A20

$183.72

12

COIL, IGNITION (CORD L:520) | FRONT

33420-38A20

$182.02

13

SPACER (6.4X10X19)

09180-06144

$3.84

14

SCREW, IGNITION COIL | 5X38

09137-05008

Unavailable

15

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.83

15

WASHER, FRONT | E33 This part replaces 08322-01053.

08322-0105A

$1.83

16

CAP, SPARK PLUG

33510-11410

$23.76

17

SEAL, PLUG

33541-47D00

$7.16

18

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

19

PLATE, IGNITER FITTING

32910-38A10

Unavailable

20

SCREW This part replaces 02112-36123.

02112-3612A

$2.07

21

NUT This part replaces 08316-20063.

08316-2006A

$2.87
