1995 Kawasaki Voyager Xii Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1995 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

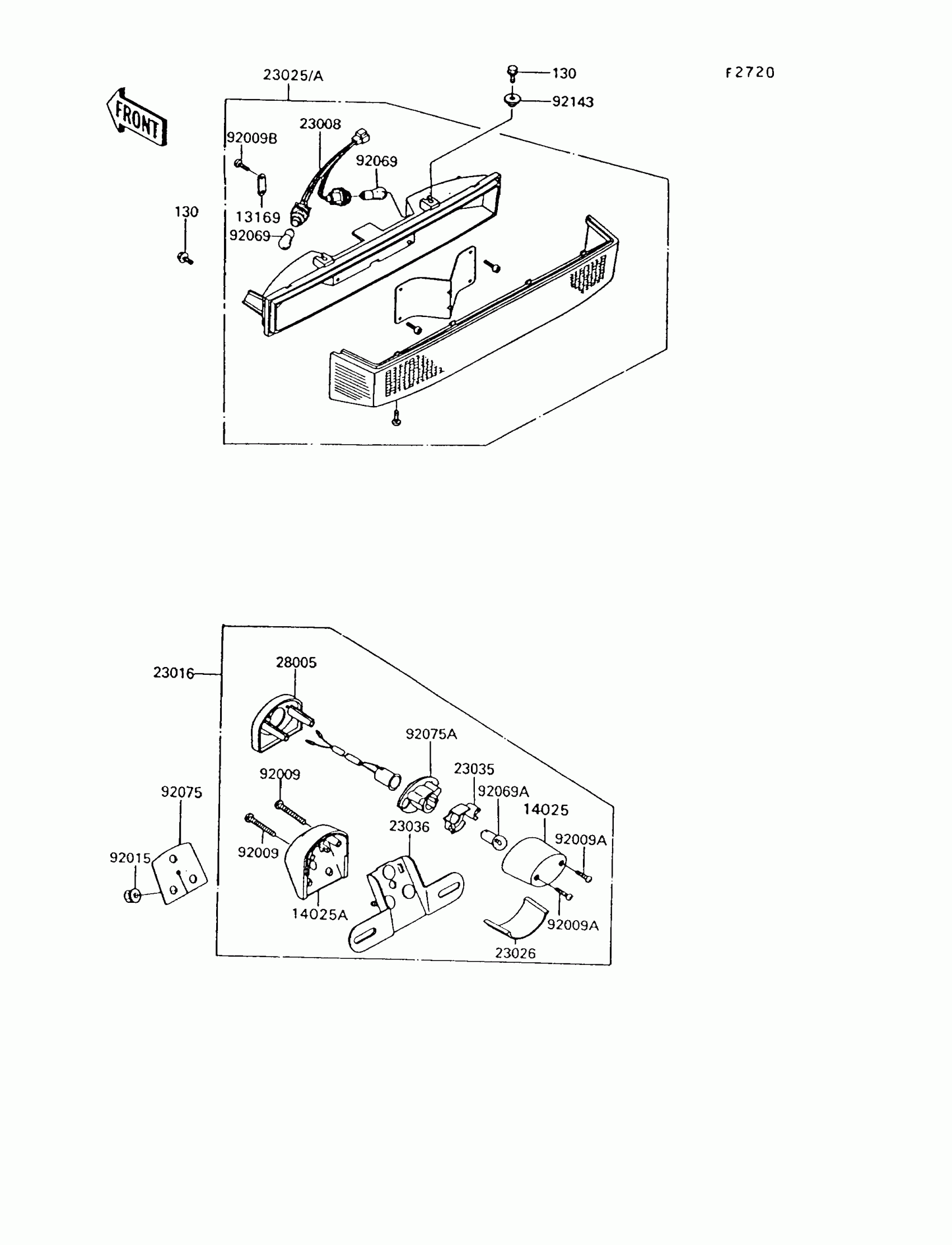

1995 Kawasaki Voyager Xii Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X20

130C0620

1
Out of stock

13169

PLATE,TAIL LAMP

13169-1680

1
Out of stock

14025

COVER,LICENSE LAMP

14025-1725

1
Out of stock

14025A

COVER,LICENSE LAMP

14025-1728

1
Out of stock

23008

SOCKET-ASSY,TAIL LAMP

23008-1300

1
Out of stock

23016

LAMP-ASSY,LICENSE

23016-1062

1
Out of stock

23025A

LAMP-TAIL,P.T.GREEN

23025-1180-SM

1
Out of stock

23026

LENS,LICENSE LAMP

23026-1064

1
Out of stock

23035

REFLECTOR-LAMP,LICENSE

23035-1060

1
Out of stock

23036

BRACKET-TAIL LAMP

23036-1105

1
Out of stock

28005

BODY-LAMP,LICENSE

28005-1051

1
Out of stock

92009

SCREW,TAPPING,5X40

92009-1263

1
Out of stock

92009A

SCREW,TAPPING,4X20

92009-1378

1
Out of stock

92009B

SCREW,TAPPING,4X12

92009-1395

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92069

BULB,12V 27/8W

92069-059

1
Out of stock

92069A

BULB,12V 8W

92069-1012

1
Out of stock

92075

DAMPER,LICENSE LAMP

92075-1676

1
Out of stock

92075A

DAMPER,LICENSE LAMP

92075-1694

1
Out of stock

92143

COLLAR,L=6.5

92143-1025

1
Out of stock
