1995 Kawasaki Voyager Xii Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1995 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

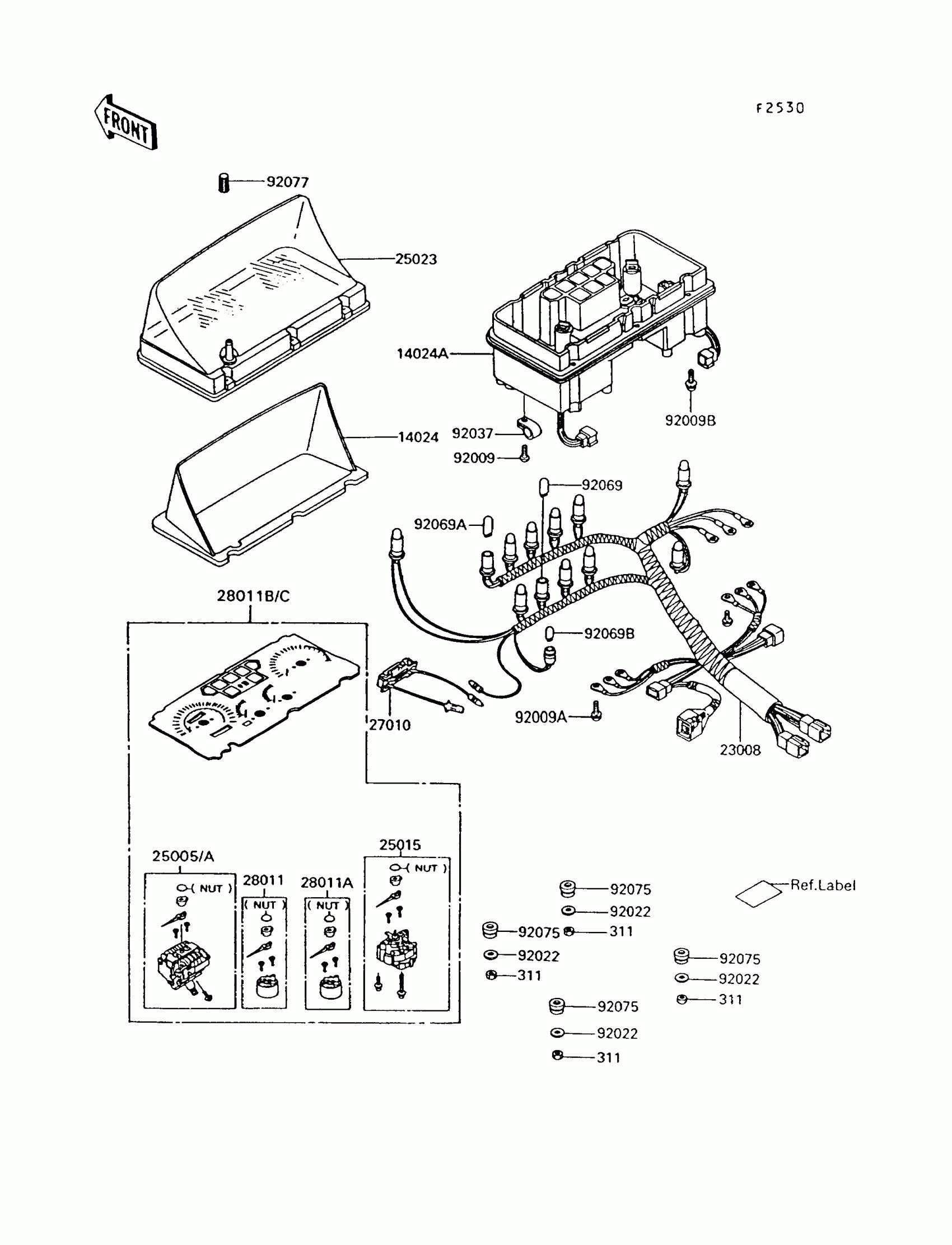

1995 Kawasaki Voyager Xii Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

311

NUT-HEX

311B0500

1

$0.51

In stock

14024

COVER,METER,UPP

14024-1179

1
Out of stock

14024A

COVER,METER,LWR

14024-1180

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1344

1

$258.57

In stock

25015

1

$565.68

In stock

25023

1

$165.78

In stock

27010

SWITCH,METER

27010-1231

1

$37.73

In stock

28011

METER,FUEL

28011-1079

1

$118.92

In stock

28011A

METER,TEMP

28011-1082

1

$136.72

In stock

92009

SCREW,TAPPING,4X16

92009-1163

1
Out of stock

92009A

SCREW,3X22

92009-1293

1
Out of stock

92009B

SCREW,3X10

92009-1382

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92037

CLAMP,CODE

92037-1769

1

$7.64

In stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,12V 3W,T7

92069-1020

1
Out of stock

92069B

BULB,12V 1.7W,T10

92069-1059

1

$3.94

In stock

92075

DAMPER

92075-1805

1

$5.19

In stock

92077

KNOB,RESET TRIP

92077-1017

1

$22.78

In stock

25005

SPEEDOMETER,MPH

25005-1323

1
Out of stock

25005A

SPEEDOMETER,KPH

25005-1337

1
Out of stock

28011B

METER,FACE PLATE(MPH)

28011-1112

1
Out of stock

28011C

METER,FACE PLATE(KPH)

28011-1113

1
Out of stock
