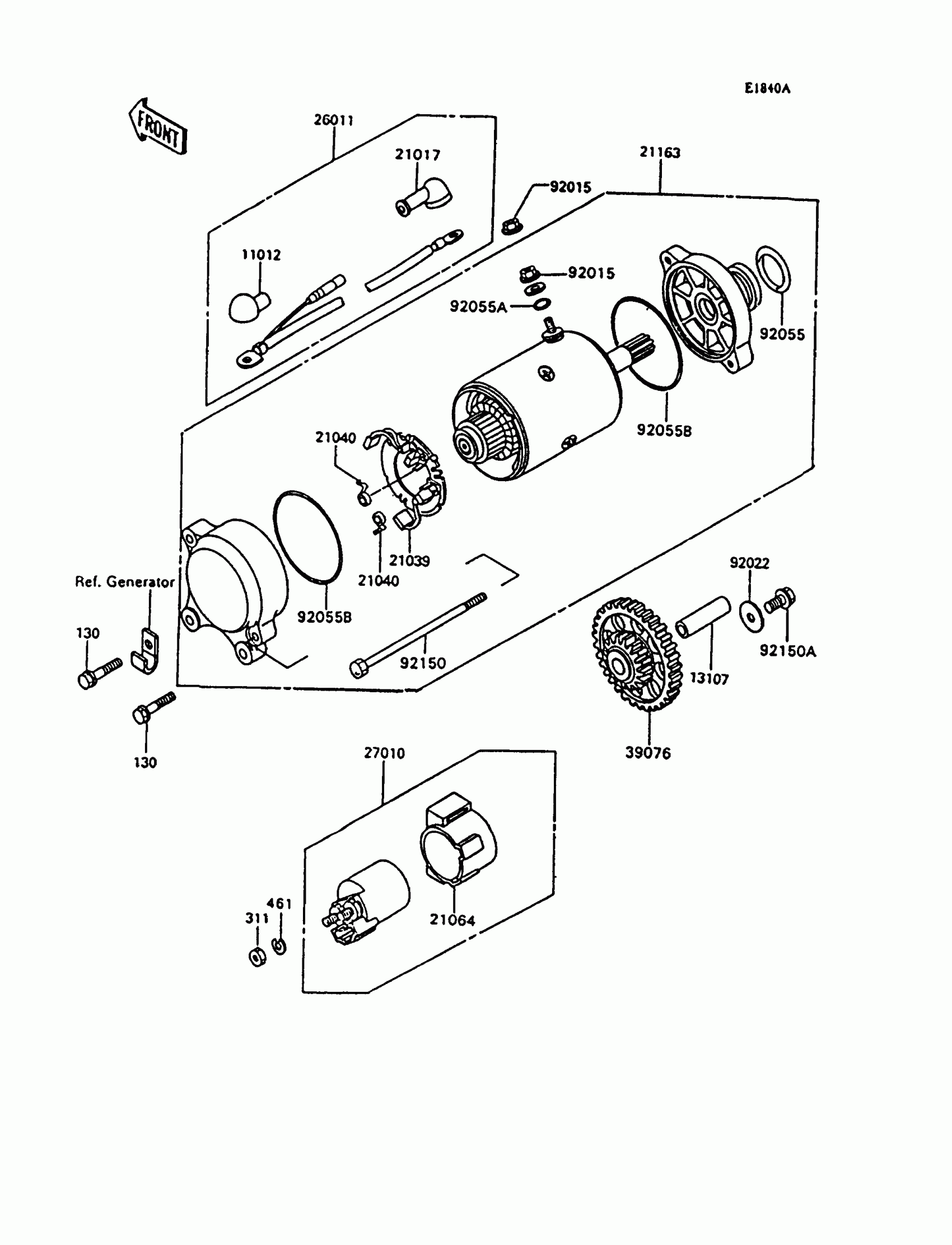

Kawasaki Voyager XII Starter Motor(ZG1200-B7/B8/B9) Diagram

Description

Price

130

BOLT,FLANGED,6X25

130G0625

Unavailable

311

NUT 6MM

311B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

11012

CAP,TERMINAL

11012-1354

$9.85

13107

SHAFT,IDLE GEAR

13107-1106

$15.76

21017

GROMMET,STARTER TERMINAL

21017-017

$7.48

21039

BRUSH,CARBON

21039-1060

$85.95

21040

SPRING-BRUSH

21040-1055

$8.24

21064

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

21163

STARTER-ELECTRIC

21163-1196

$639.91

26011

WIRE-LEAD,STARTER MOTOR

26011-1369

$59.61

27010

SWITCH,MAGNETIC

27010-1209

Unavailable

39076

LIMITER,STARTER IDLE

39076-1067

$136.81

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,6X19.5X2

92022-1517

$1.90

92055

RING-O

92055-1276

$7.86

92055A

RING-O,4.5X2.0

92055-1370

$4.17

92055B

RING-O,STARTER MOTOR

92055-1381

$9.58

92150

BOLT,STARTER MOTOR

92150-1572

$9.42

92150A

BOLT,FLANGED,6X12

92150-1826

$3.20
