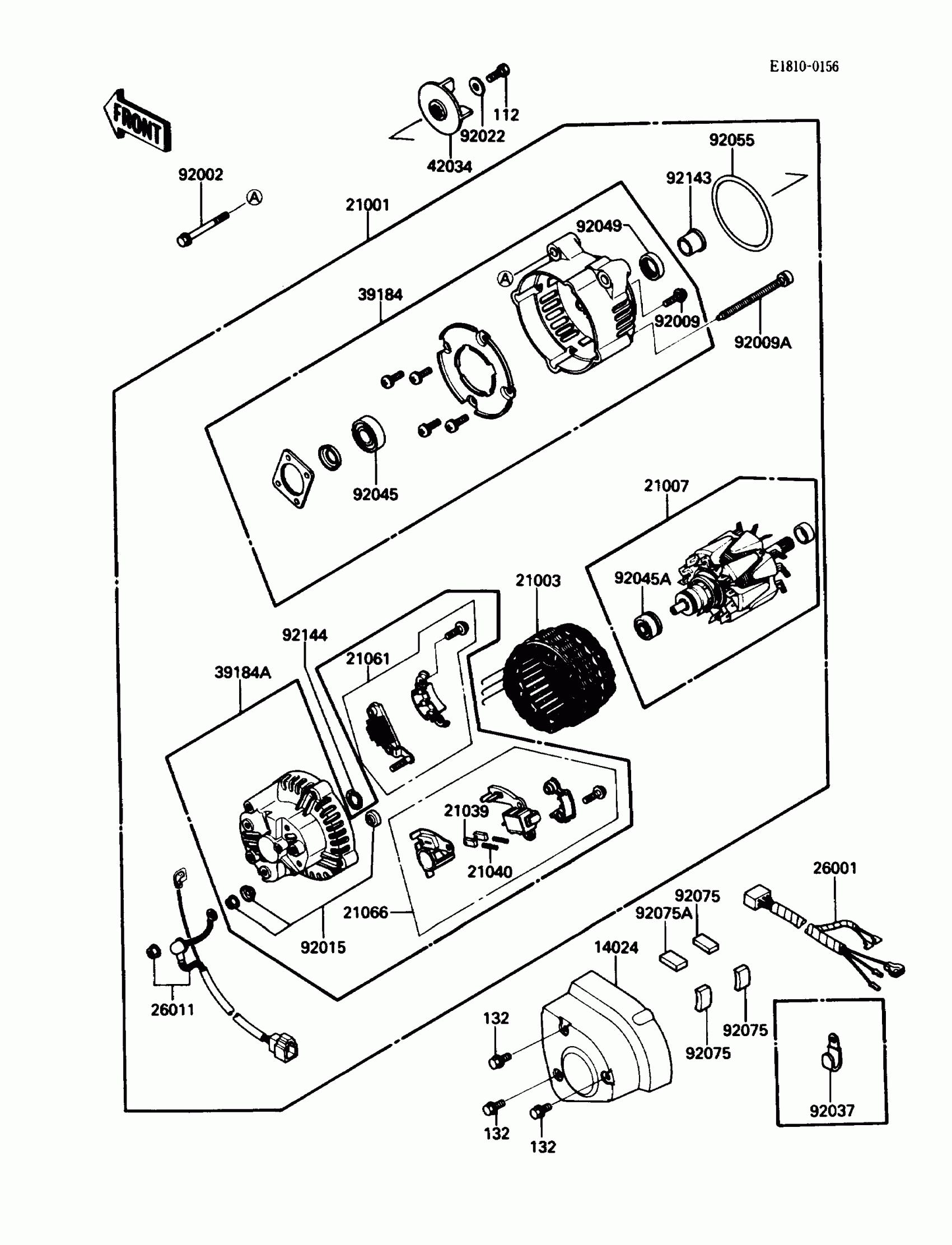

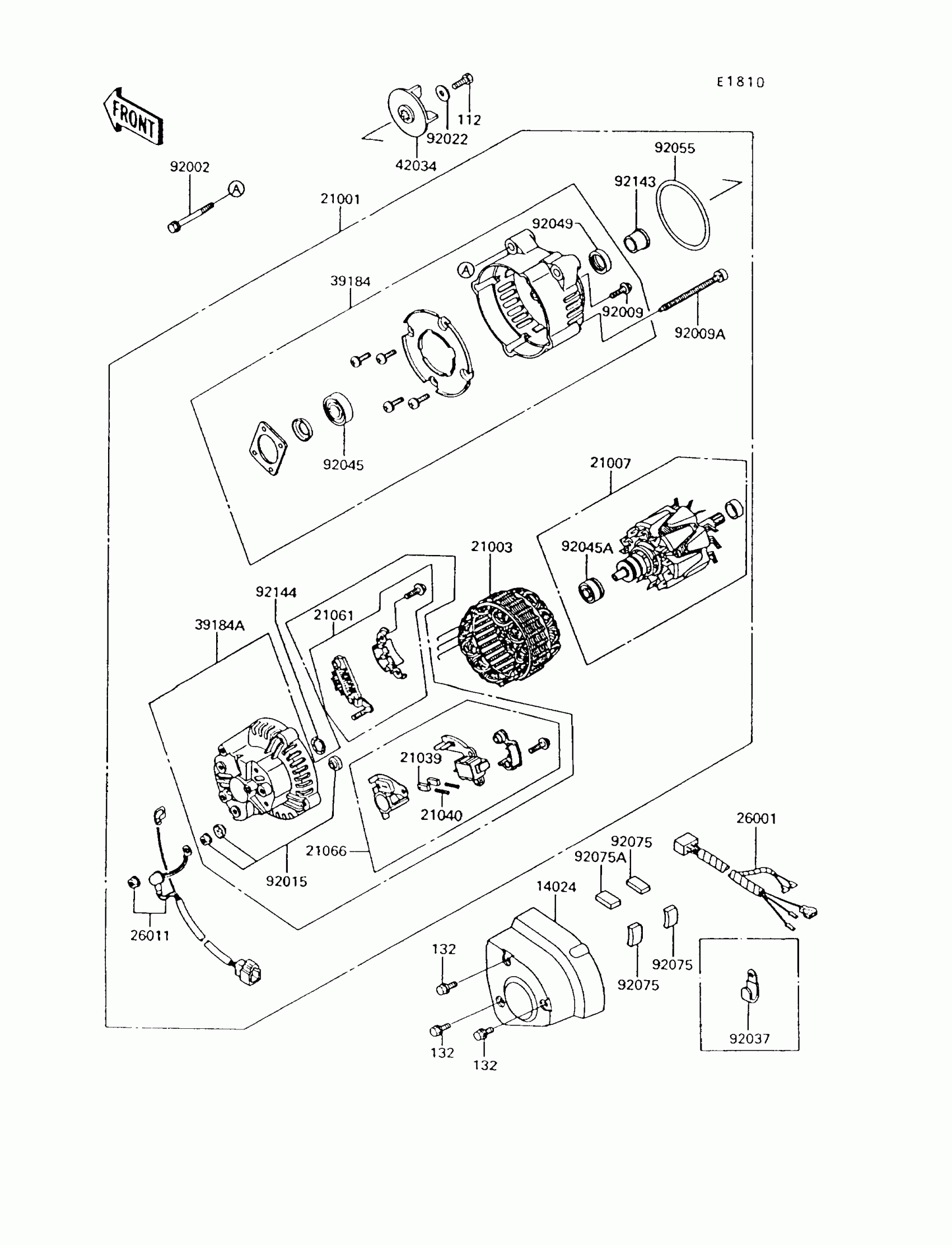

Find the part on the Generator diagram for your 1991 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki Voyager Xii Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET,6X16

112G0616

1
Out of stock

132

1

$3.72

In stock

14024

COVER,GENERATOR

14024-1294

1
Out of stock

21001

GENERATOR

21001-1083

1

$1,471.29

In stock

21003

STATOR,GENERATOR

21003-1162

1

$697.56

In stock

21007

ROTOR,GENERATOR

21007-1152

1

$612.25

In stock

21039

BRUSH,CARBON

21039-1058

1

$32.97

In stock

21040

SPRING-BRUSH

21040-1054

1

$9.12

In stock

21061

RECTIFIER

21061-1056

1

$327.87

In stock

21066

REGULATOR-VOLTAGE

21066-1062

1

$691.09

In stock

26001

HARNESS

26001-1761

1

$46.89

In stock

26011

WIRE-LEAD,GENERATOR

26011-1379

1

$77.13

In stock

39184

BRACKET-ASSY,FR

39184-1063

1

$134.39

In stock

39184A

BRACKET-ASSY,RR

39184-1064

1

$1,012.62

In stock

42034

COUPLING

42034-1084

1

$89.46

In stock

92002

BOLT,8X45

92002-1658

1
Out of stock

92009

SCREW

92009-1451

1
Out of stock

92009A

SCREW

92009-1452

1
Out of stock

92015

NUT

92015-1624

1

$16.03

In stock

92022

WASHER,6X19.5X2

92022-1517

1

$1.90

In stock

92037

CLAMP,L=45

92037-1539

1

$4.42

In stock

92045

BEARING-BALL

92045-1181

1

$59.70

In stock

92045A

BEARING-BALL

92045-1182

1

$71.54

In stock

92049

SEAL-OIL

92049-1274

1
Out of stock

92055

RING-O

92055-1365

1

$35.40

In stock

92075

DAMPER

92075-1866

1

$4.51

In stock

92075A

DAMPER

92075-1867

1

$4.41

In stock

92143

COLLAR

92143-1054

1

$10.17

In stock

92144

SPRING,WASHER

92144-1067

1

$4.85

In stock
