1991 Kawasaki Voyager Xii Cruise Switch Diagram

← All diagrams

Find the part on the Cruise Switch diagram for your 1991 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

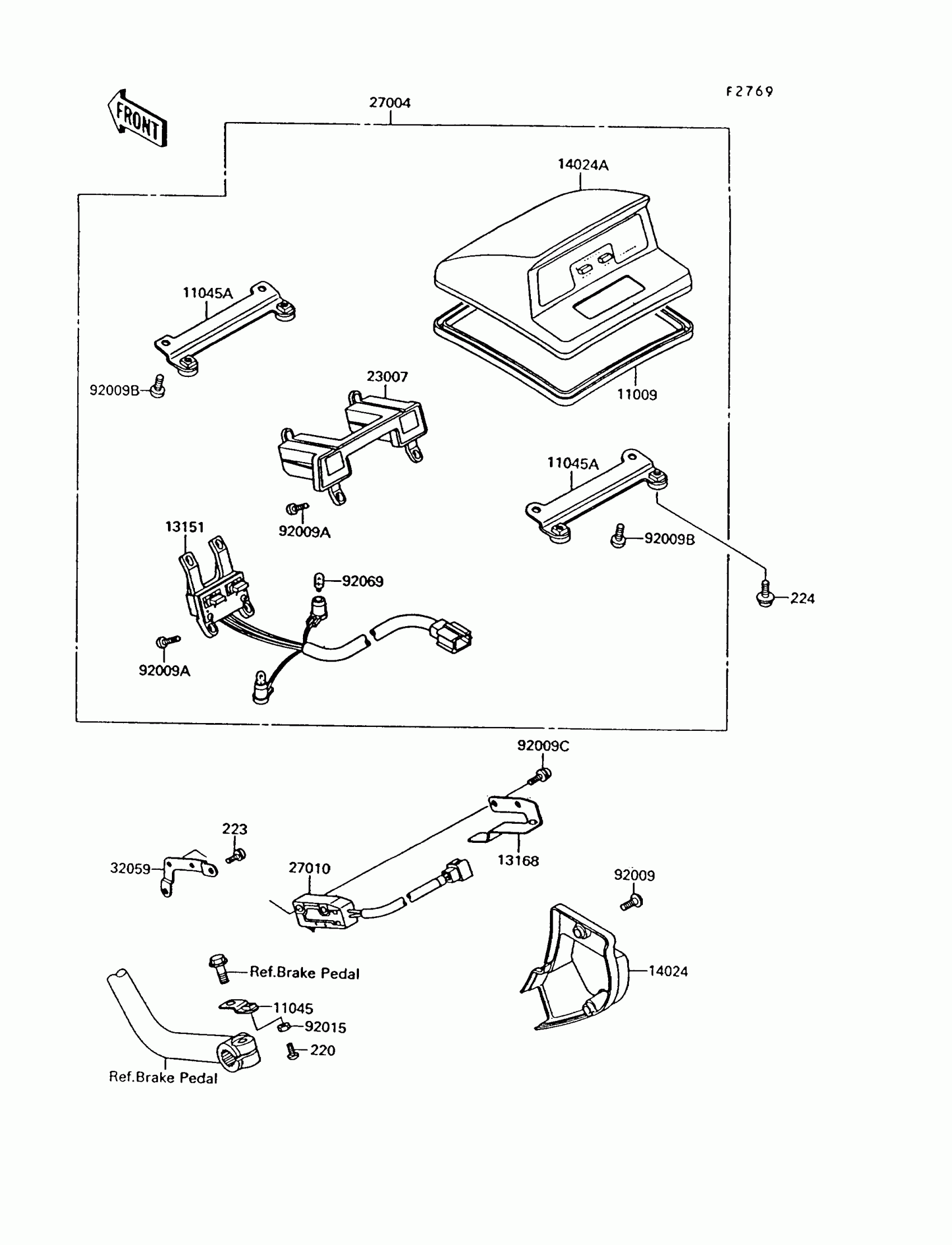

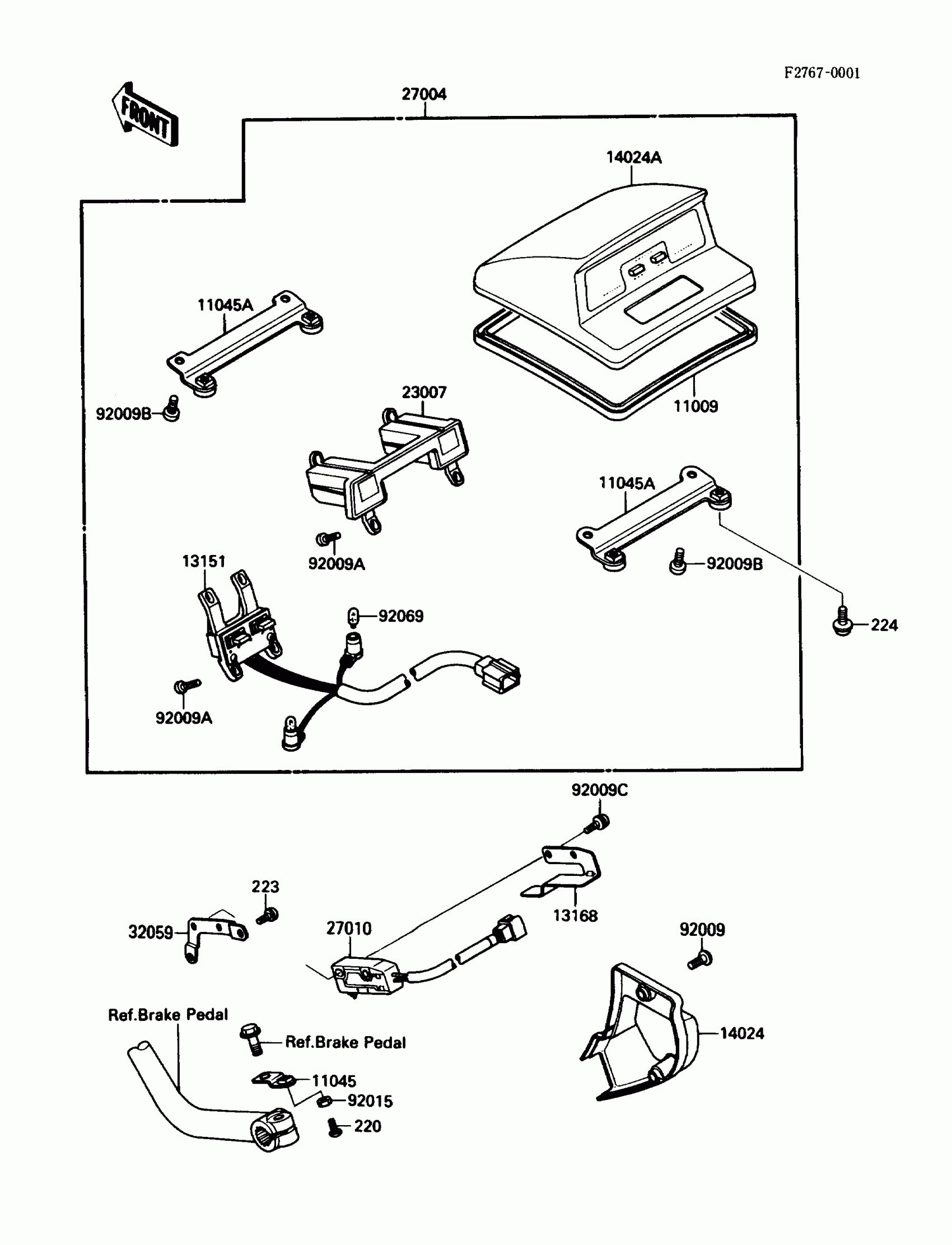

1991 Kawasaki Voyager Xii Cruise Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW PAN HEAD 4X16

220B0416

1
Out of stock

223

SCREW-PAN-WS-CROS

223B0510

1
Out of stock

224

SCREW-PAN-WP-CROS

224B0516

1
Out of stock

11009

GASKET,CRUISE CONTROL SWITCH

11009-1682

1
Out of stock

11045

BRACKET,CRUISE CANCEL SWITCH

11045-1913

1
Out of stock

11045A

BRACKET,CRUISE CONTROL SWITCH

11045-1937

1
Out of stock

13151

SWITCH-COMP,CRUISE CONTROL

13151-1068

1
Out of stock

13168

LEVER,CRUISE CANCEL SWITCH

13168-1364

1
Out of stock

14024

COVER,CRUISE CANCEL SWITCH

14024-1539

1
Out of stock

14024A

COVER,CRUISE CONTROL SWITCH

14024-1552-6Z

1
Out of stock

23007

LENS-COMP,CRUISE CONTROL

23007-1178

1
Out of stock

27004

SWITCH-ASSY,CRUISE CONTROL,BLK

27004-1057-6Z

1
Out of stock

27010

SWITCH,CRUISE CANCEL

27010-1237

1
Out of stock

32059

BRACKET-SWITCH,CRUISE CANCEL

32059-1087

1
Out of stock

92009

SCREW,5X12,BLACK

92009-1182

1
Out of stock

92009A

SCREW,TAPPING,4X12

92009-1395

1
Out of stock

92009B

SCREW,TAPPING,5X10

92009-1499

1
Out of stock

92009C

SCREW,4X16

92009-1500

1
Out of stock

92015

NUT,4MM

92015-1676

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1
Out of stock
