1995 Kawasaki Voyager Xii Ignition System Diagram

← All diagrams

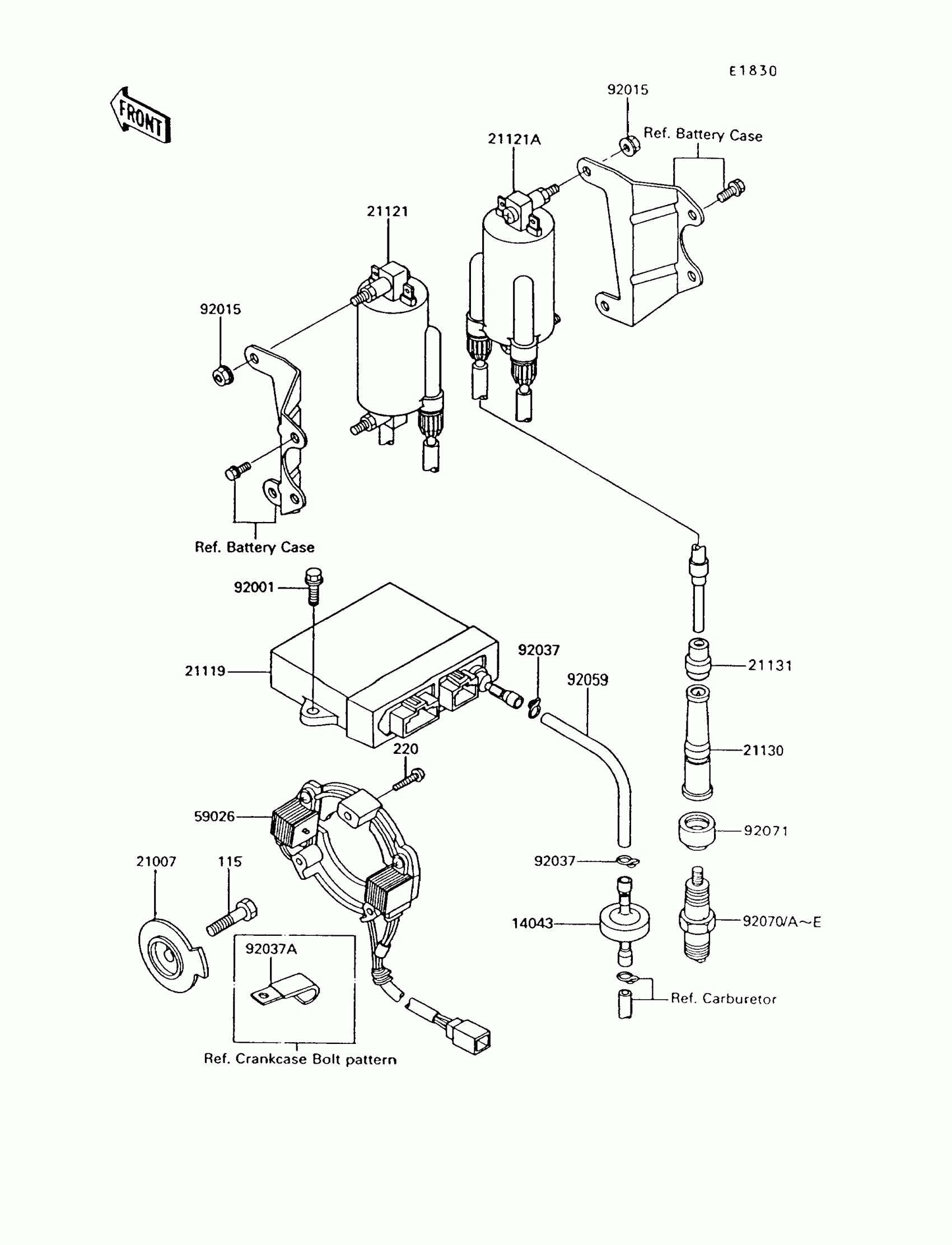

Find the part on the Ignition System diagram for your 1995 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Kawasaki Voyager Xii Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

115

BOLT-SMALL-UPSET,8X30

115G0830

1
Out of stock

220

1

$3.24

In stock

14043

FILTER

14043-1060

1

$47.82

In stock

21007

ROTOR,PULSING COIL

21007-1137

1

$56.98

In stock

21119

IGNITER

21119-1248

1

$745.34

In stock

21121

COIL-IGNITION,#1&4

21121-1142

1
Out of stock

21121A

COIL-IGNITION,#2&3

21121-1143

1
Out of stock

21130

CAP-SPARK PLUG

21130-019

1

$40.61

In stock

21131

1

$4.88

In stock

59026

COIL-PULSING

59026-1082

1
Out of stock

92001

BOLT,6X20

92001-1091

1

$3.12

In stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92037

CLAMP,TUBE

92037-1482

1
Out of stock

92037A

CLAMP,L=45

92037-1539

1

$4.42

In stock

92059

TUBE,3X7X140

92059-1687

1

$4.53

In stock

92070

1

$2.92

In stock

92070A

1

$2.92

In stock

92070B

Not Available As Spare Part - Friction Washer

1
Out of stock

92070C

Not Available As Spare Part - Friction Washer

1
Out of stock

92070D

Not Available As Spare Part - Friction Washer

1
Out of stock

92070E

1

$2.74

In stock

92071

GROMMET,PLUG CAP

92071-1124

1

$9.14

In stock
