1988 Kawasaki Voyager Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

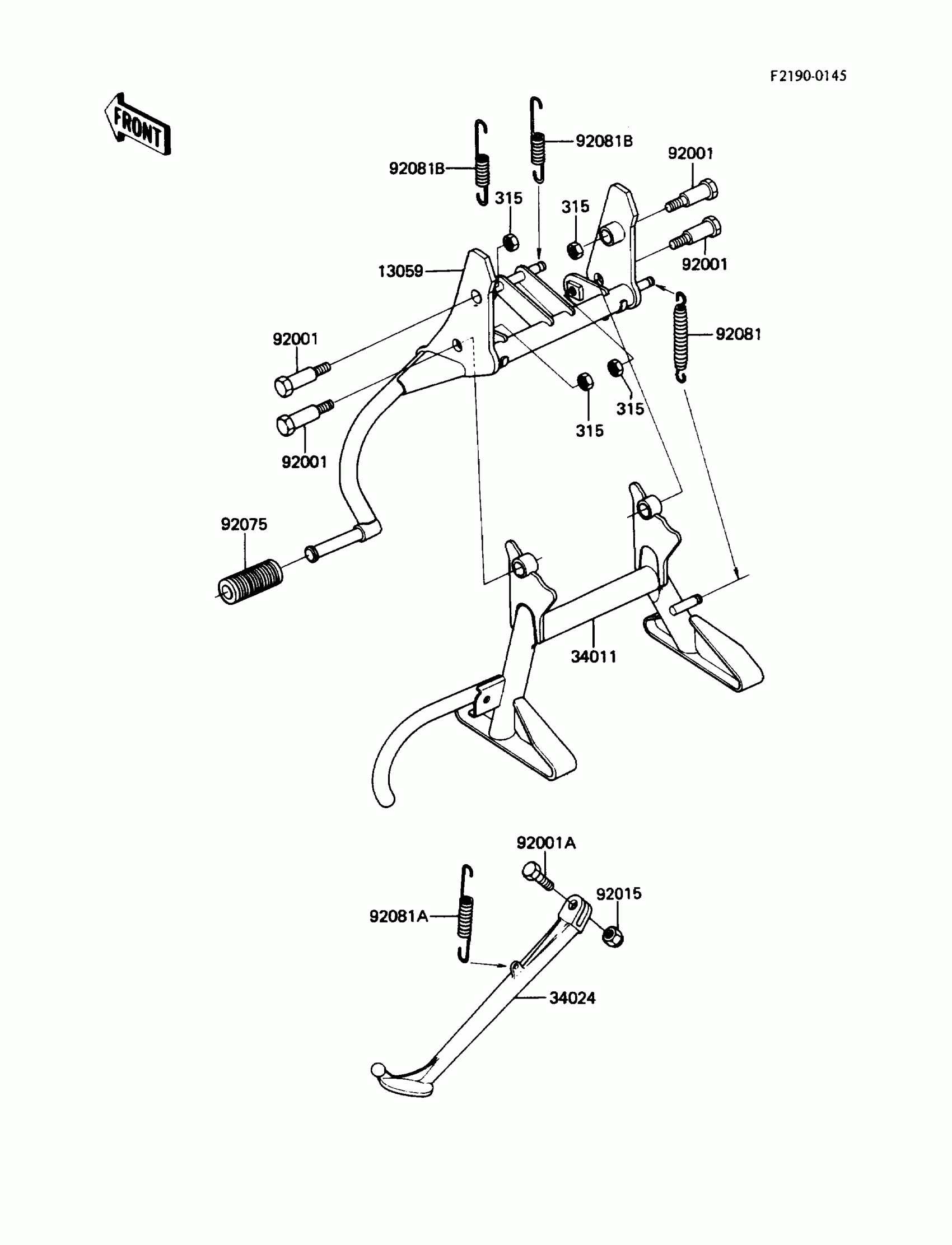

1988 Kawasaki Voyager Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13059

LEVER-KICK,CENTER STAND

13059-1102

1
Out of stock

34011

STAND-CENTER

34011-1103

1

$113.00

In stock

34024

STAND-SIDE

34024-1158

1

$85.44

In stock

92001

BOLT,CENTER STAND

92001-1848

1

$7.03

In stock

92001A

BOLT,12X43

92001-1984

1

$5.15

In stock

92015

NUT,LOCK,12MM,BLACK

92015-1190

1
Out of stock

92075

DAMPER,PEDAL

13063-002

1

$3.58

In stock

92081

SPRING,CNT STAND

34023-012

1
Out of stock

92081A

SPRING,STAND

34025-005

1

$6.03

In stock

92081B

SPRING,STAND

92081-1657

1
Out of stock

315

NUT-HEX-FINE,10MM

315B1000

1
Out of stock
