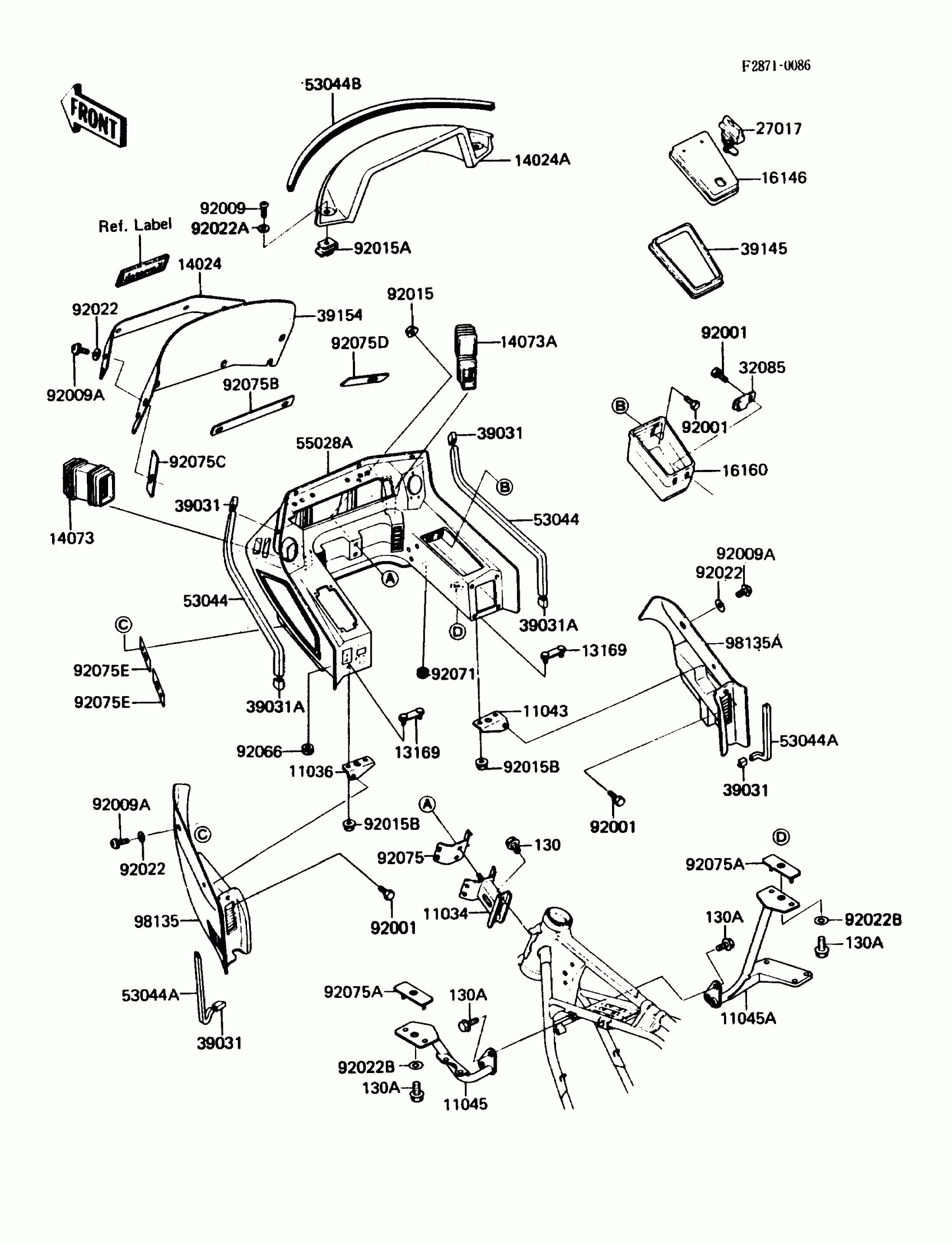

1988 Kawasaki Voyager Cowling Diagram
Find the part on the Cowling diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
11034
BRACKET,COWLING
11034-1485
11036
BRACKET-A,COWLING,LH
11036-1996
11043
BRACKET-B,COWLING,RH
11043-1055
11045
BRACKET,COWLING,UPP,LH
11045-1985
11045A
BRACKET,COWLING,UPP,RH
11045-1986
13169
PLATE,COWLING BRACKET
13169-1612
14024
COVER,WIND SHIELD
14025-1663
14024A
COVER,METER
14025-1784
39031A
CAP-END,COWLING TRIM
39031-1054
53044
TRIM,COWLING,UPP
53044-1043
53044A
TRIM,COWLING,LWR
53044-1044
92009
SCREW,5X12,BLACK
92009-1182
92009A
SCREW,6X22,BLACK
92009-1256
92015
NUT,FLANGED,8MM,BLACK
92015-1183
92015A
NUT,COVER,SIDE
92015-1261
92022B
WASHER,8.5X20X1.6
92022-195
98135
SUB-ASSY,COWLING,LWR,LH,RED
98135-1053-P5
98135A
SUB-ASSY,COWLING,LWR,RH,RED
98135-1060-P5
130
BOLT-FLANGED
130D0814
130A
BOLT-FLANGED,8X16
130G0816
