1986 Kawasaki Voyager Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

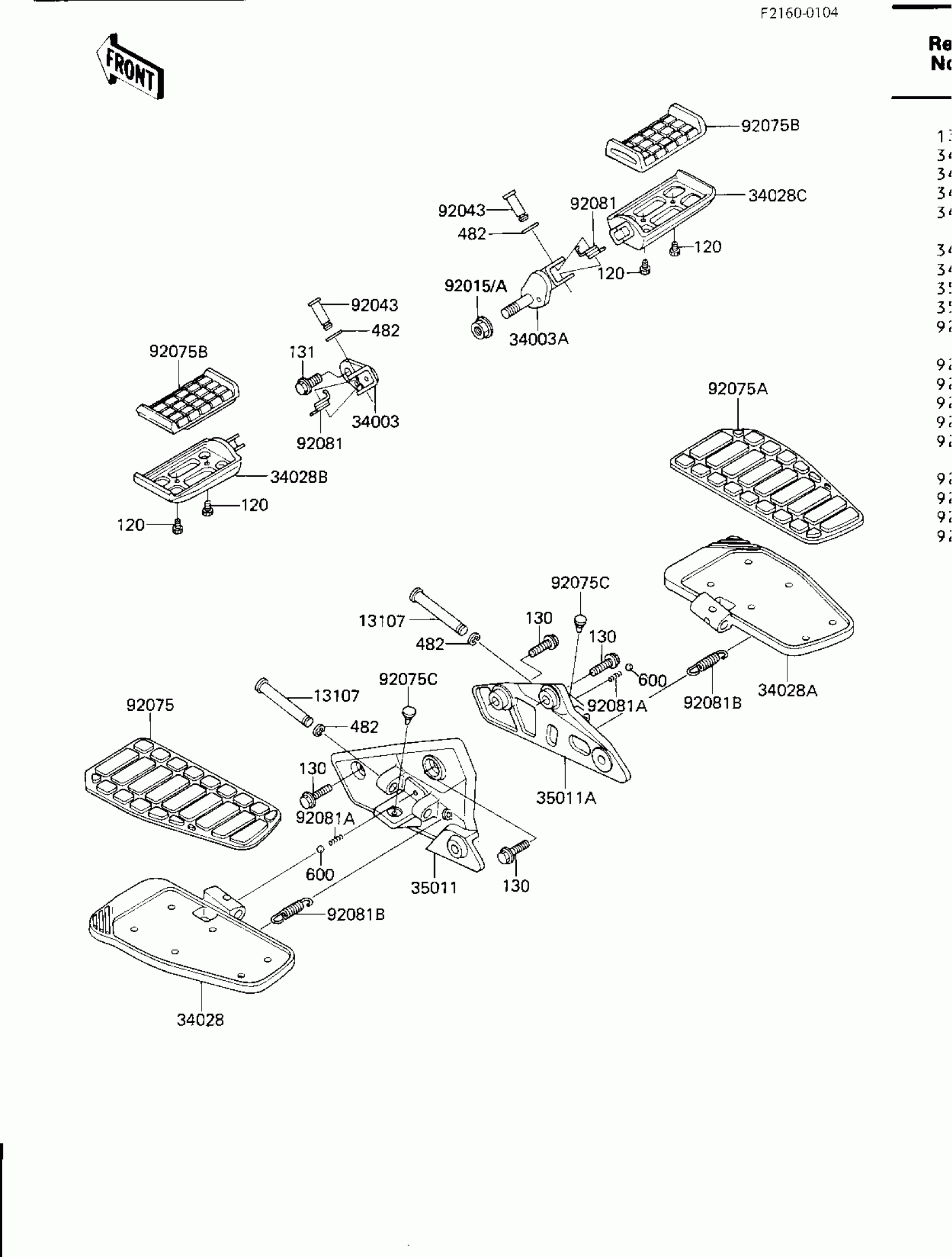

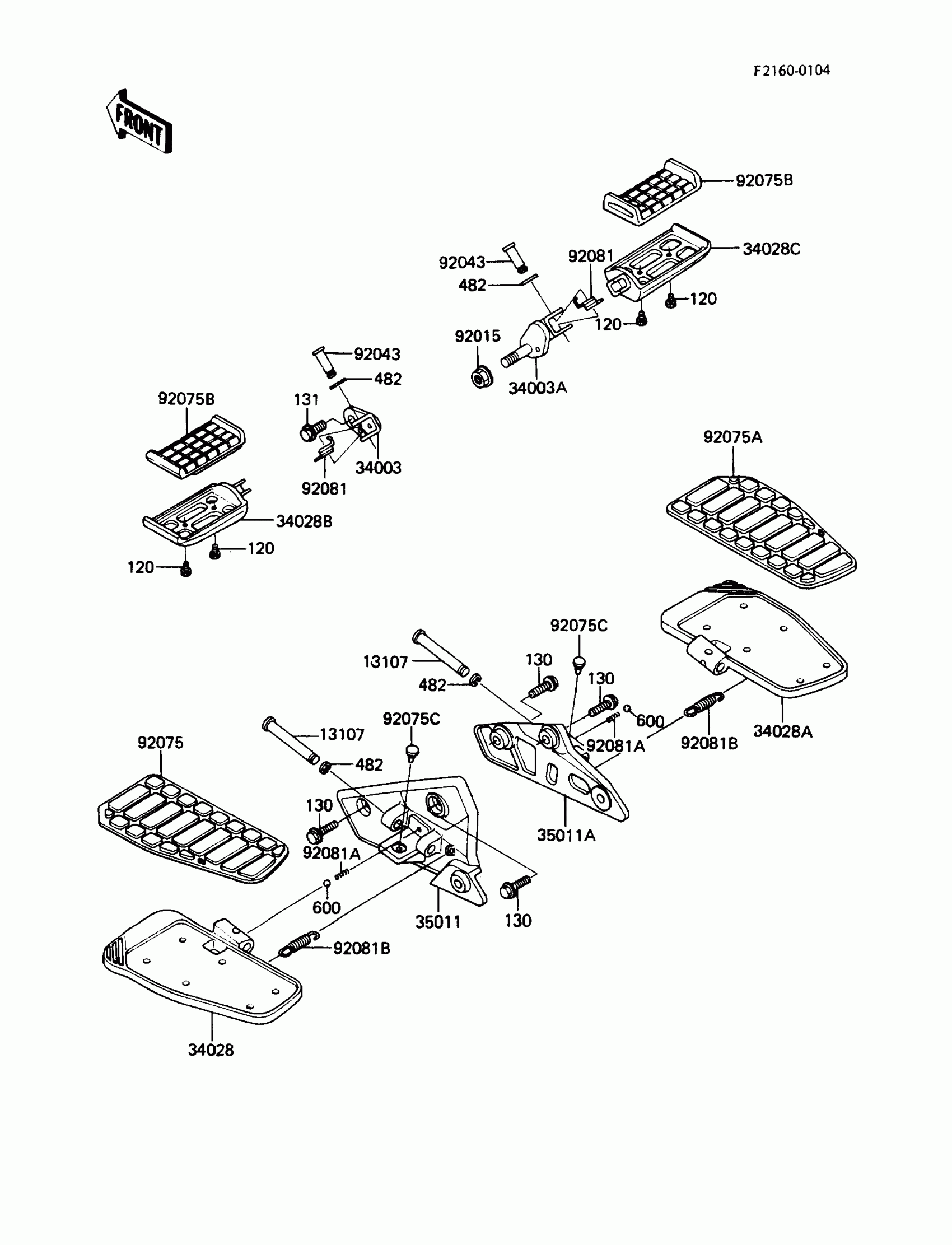

1986 Kawasaki Voyager Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,REAR STEP

13107-1043

1
Out of stock

34003

HOLDER-STEP,FR,LH

34003-1159

1

$47.39

In stock

34003A

HOLDER-STEP,FR,RH

34003-1160

1

$47.39

In stock

34028

STEP,RR,LH

34028-1066

1

$47.03

In stock

34028A

STEP,RR,RH

34028-1067

1

$65.88

In stock

34028B

STEP,LH

34028-1101

1

$127.39

In stock

34028C

STEP,RH

34028-1102

1

$78.18

In stock

35011

1

$171.00

In stock

35011A

1

$178.17

In stock

92015A

NUT,FLANGED,12MM,BLACK

92015-1249

1
Out of stock

92043

PIN,12X37

92043-1144

1

$8.90

In stock

92075

DAMPER,REAR STEP,LH

92075-1472

1

$29.08

In stock

92075A

DAMPER,REAR STEP,RH

92075-1473

1

$27.41

In stock

92075B

DAMPER,STEP

92075-1559

1

$18.41

In stock

92075C

DAMPER,RUBBER

92075-225

1

$9.51

In stock

92081

SPRING,STEP RETURN

92144-1568

1

$5.15

In stock

92081A

SPRING,COIL,STEP,RR

92081-1588

1
Out of stock

92081B

SPRING,STEP RETURN

92081-1590

1

$9.41

In stock

120

BOLT-SOCKET,5X10

120P0510

1
Out of stock

130

BOLT-FLANGED,10X30

130J1030

1
Out of stock

131

BOLT-FLANGED,12X20

131J1220

1
Out of stock

482

1

$0.98

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock
