1988 Kawasaki Voyager Guard Diagram

← All diagrams

Find the part on the Guard diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

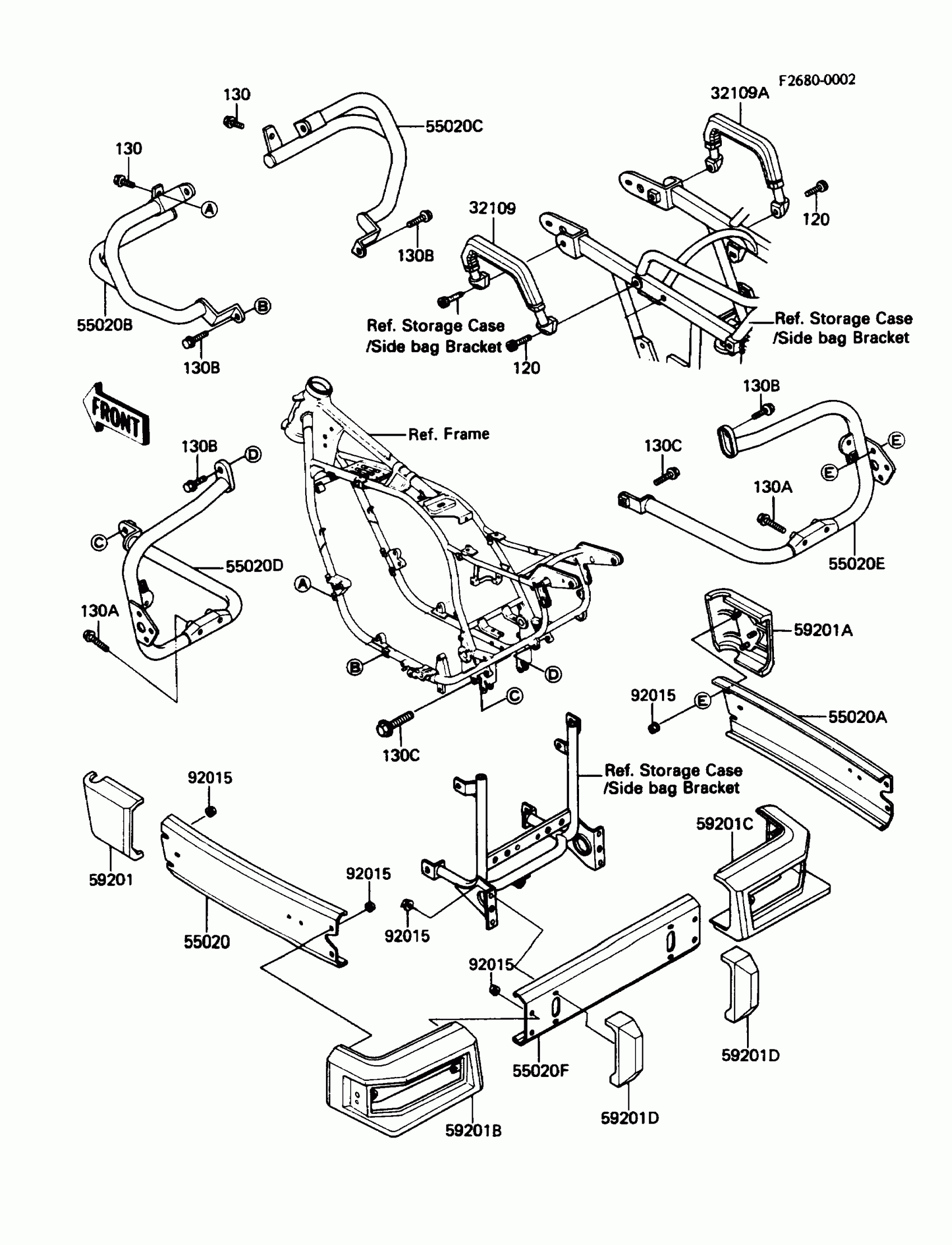

1988 Kawasaki Voyager Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32109

GRIP-FRAME,LH

32109-1044

1

$83.64

In stock

32109A

GRIP-FRAME,RH

32109-1045

1

$83.64

In stock

55020

GUARD,SIDE BAG,LH

55020-1105

1

$93.12

In stock

55020A

GUARD,SIDE BAG,RH

55020-1106

1

$137.51

In stock

55020B

GUARD,ENGINE,LH

55020-1110

1
Out of stock

55020C

GUARD,ENGINE,RH

55020-1111

1
Out of stock

55020D

GUARD,LH

55020-1155

1

$244.12

In stock

55020E

GUARD,RH

55020-1156

1

$306.08

In stock

55020F

GUARD,RR,CNT

55020-1159

1

$81.70

In stock

59201

BUMPER,FR,LH

59201-1001

1

$87.38

In stock

59201A

BUMPER,FR,RH

59201-1002

1

$87.38

In stock

59201B

BUMPER,RR,LH

59201-1003

1

$150.75

In stock

59201C

BUMPER,RR,RH

59201-1004

1

$150.75

In stock

59201D

BUMPER,RR,CNT

59201-1005

1

$43.94

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

120

BOLT-SOCKET,8X14

120P0814

1
Out of stock

130

BOLT-FLANGED,8X16

130G0816

1
Out of stock

130A

BOLT-FLANGED,8X45

130G0845

1
Out of stock

130B

BOLT-FLANGED,10X20

130G1020

1
Out of stock

130C

BOLT-FLANGED,10X35

130G1035

1
Out of stock
