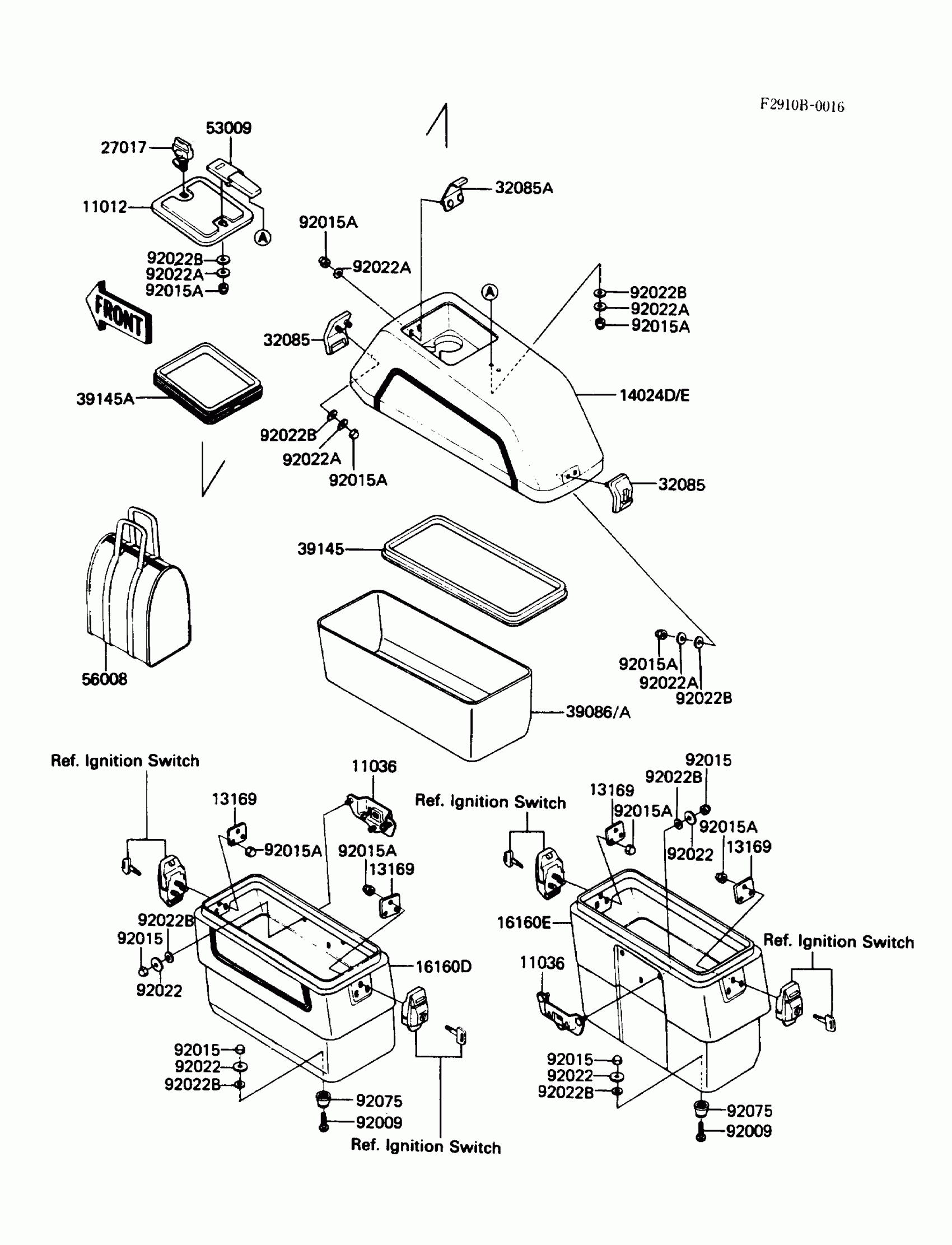

Find the part on the Accessory diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

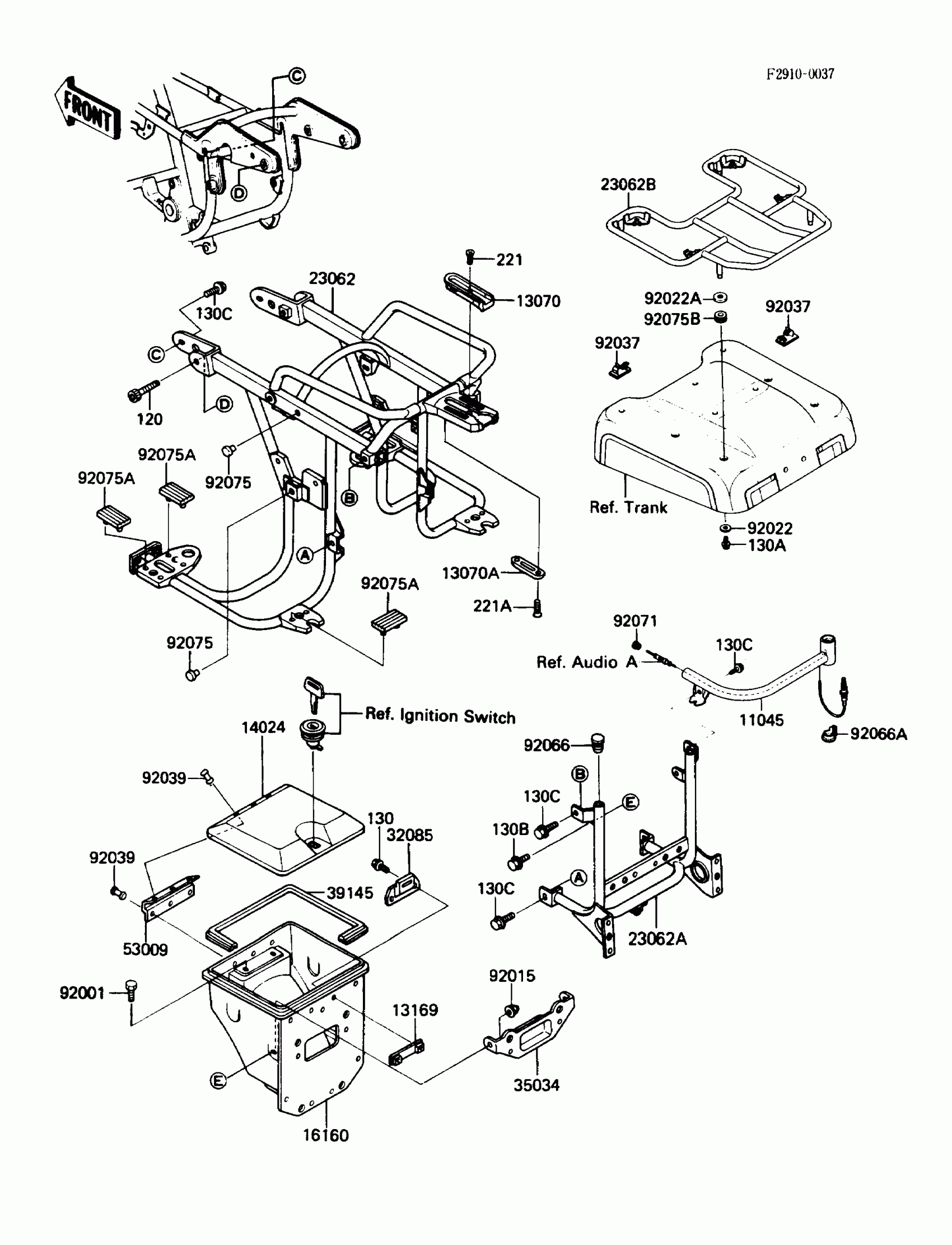

1988 Kawasaki Voyager Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SIDEBAG

11012-1295

1
Out of stock

11036

BRACKET-A,SIDEBAG

11036-1912

1
Out of stock

13169

PLATE,SIDEBAG

13169-1600

1
Out of stock

14024D

COVER,SIDEBAG,LH,L.V.RED

14025-5238-P5

1
Out of stock

14024E

COVER,SIDEBAG,RH,L.V.RED

14025-5239-P5

1
Out of stock

16160D

BODY,SIDEBAG,LH,L.V.RED

16160-5011-P5

1

$1,012.00

In stock

16160E

BODY,SIDEBAG,RH,L.V.RED

16160-5012-P5

1

$1,010.16

In stock

27017

LOCK,BAG

27017-1103

1

$69.36

In stock

32085

STOPPER,SIDEBAG

32085-1122

1

$39.16

In stock

32085A

1

$14.15

In stock

39086

1

$145.66

In stock

39086A

1

$241.72

In stock

39145

TRIM-SEAL,SIDEBAG

39145-1003

1

$34.29

In stock

39145A

TRIM-SEAL,SIDEBAG

39145-1052

1

$10.97

In stock

53009

HINGE,SIDEBAG

53009-1039

1
Out of stock

56008

BAG,SIDE,INNER

56008-1025

1

$188.41

In stock

92009

SCREW,6X28

92009-1066

1
Out of stock

92015

NUT,LOCK 6MM

92015-1262

1
Out of stock

92015A

NUT,LOCK,FLANGE CAP,5MM

92015-1263

1
Out of stock

92022

1

$2.15

In stock

92022A

WASHER,5.5X20X1.2

92022-1405

1

$3.43

In stock

92022B

WASHER,RUBBER

92022-1477

1

$4.41

In stock

92075

1

$16.61

In stock
