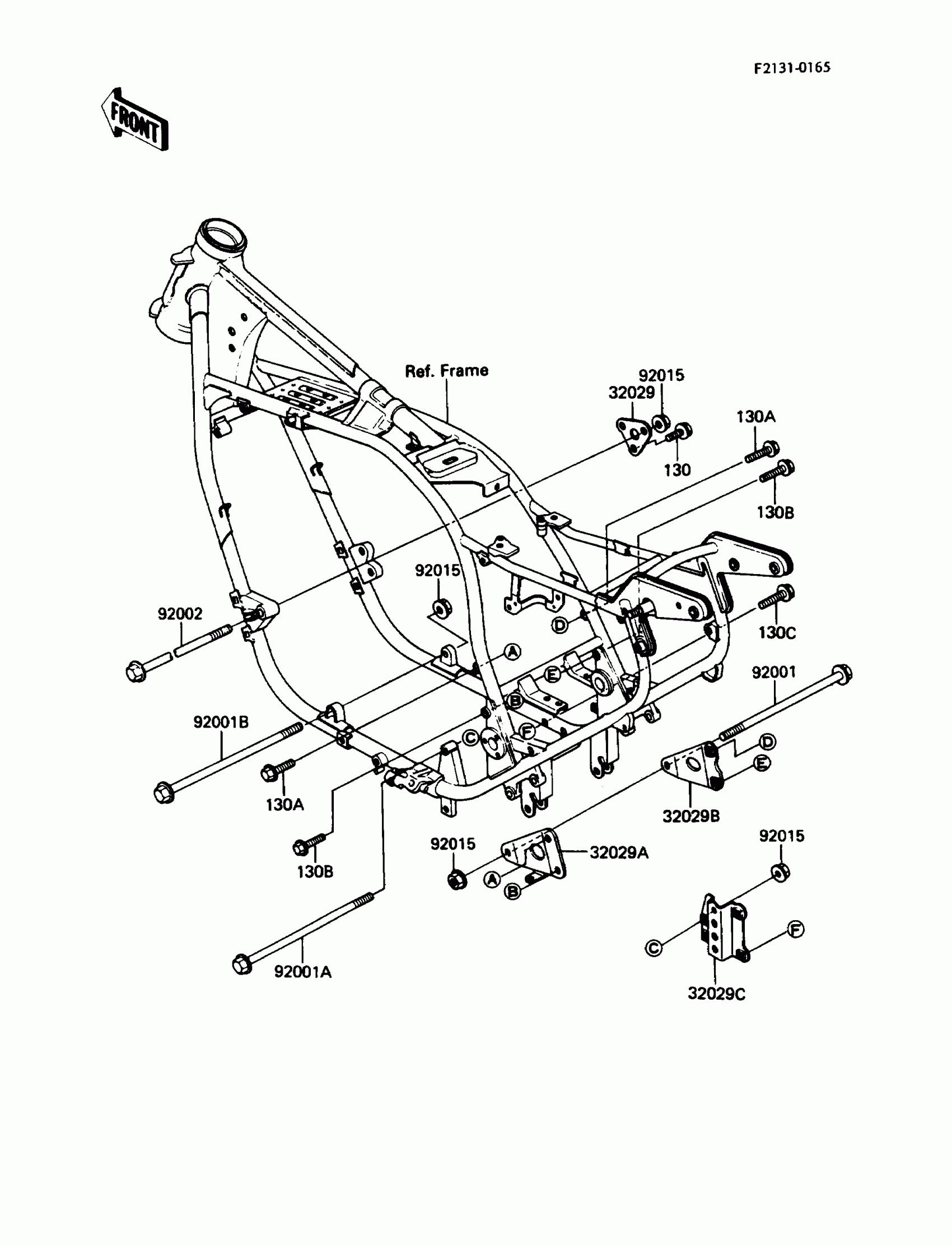

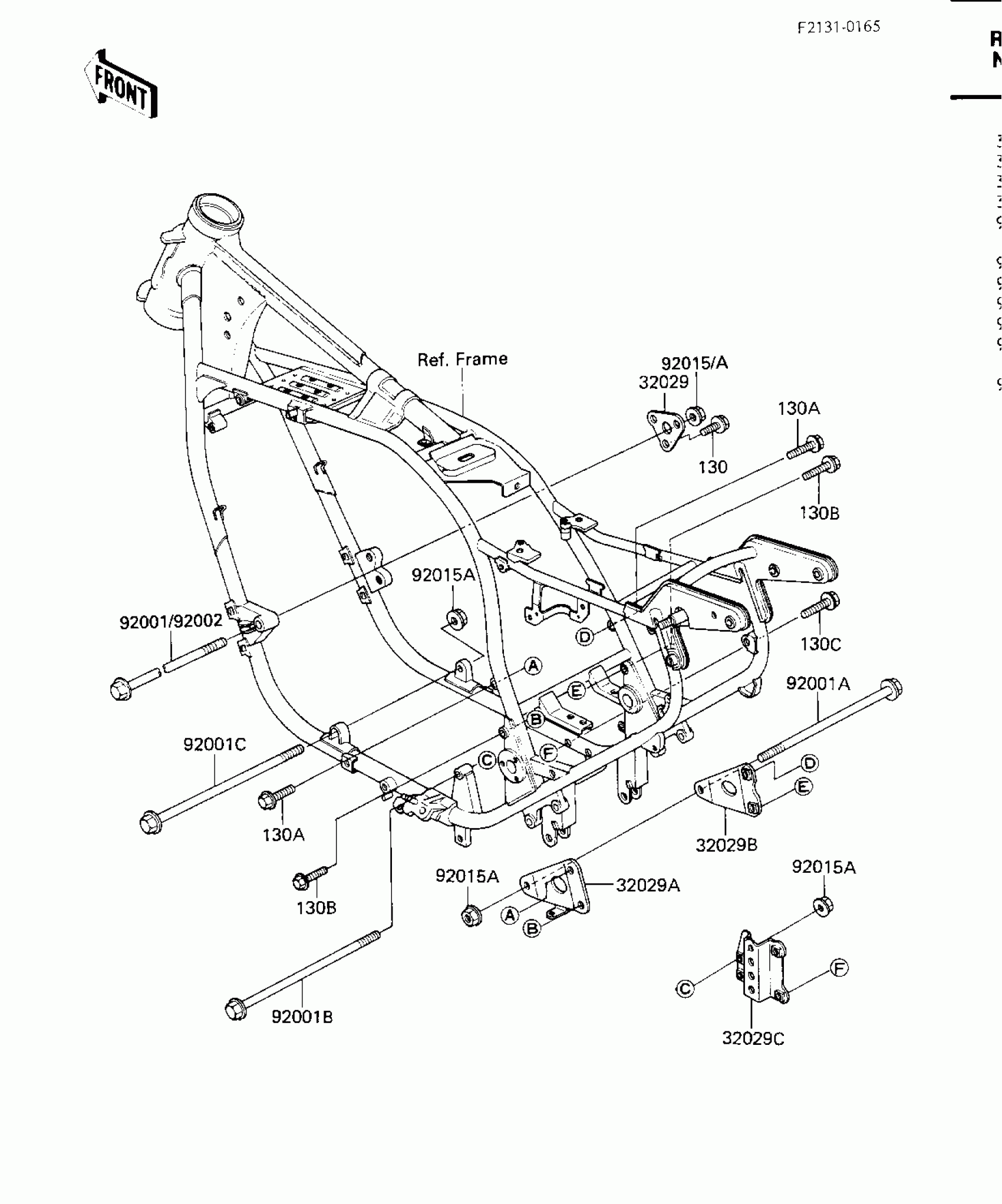

Find the part on the Frame Fittings diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32029

BRACKET-ENGINE,FR,RH,UPP

32029-1061

1
Out of stock

32029A

1

$23.46

In stock

32029B

1

$20.05

In stock

32029C

1

$24.75

In stock

92001A

BOLT,FLANGED,10X270

92001-1988

1
Out of stock

92001B

BOLT,FLANGED,10X305

92001-1992

1

$24.98

In stock

92001C

BOLT,FLANGED,10X315

92001-1993

1
Out of stock

92002

BOLT,FLANGED,10X380

92002-1406

1

$23.51

In stock

92015A

NUT,FLANGED,10MM

92015-1180

1
Out of stock

130

BOLT-FLANGED,8X20

130J0820

1
Out of stock

130A

BOLT-FLANGED,8X35

130J0835

1
Out of stock

130B

BOLT-FLANGED,8X40

130J0840

1
Out of stock

130C

BOLT-FLANGED,8X55

130J0855

1
Out of stock
