1986 Kawasaki Voyager Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

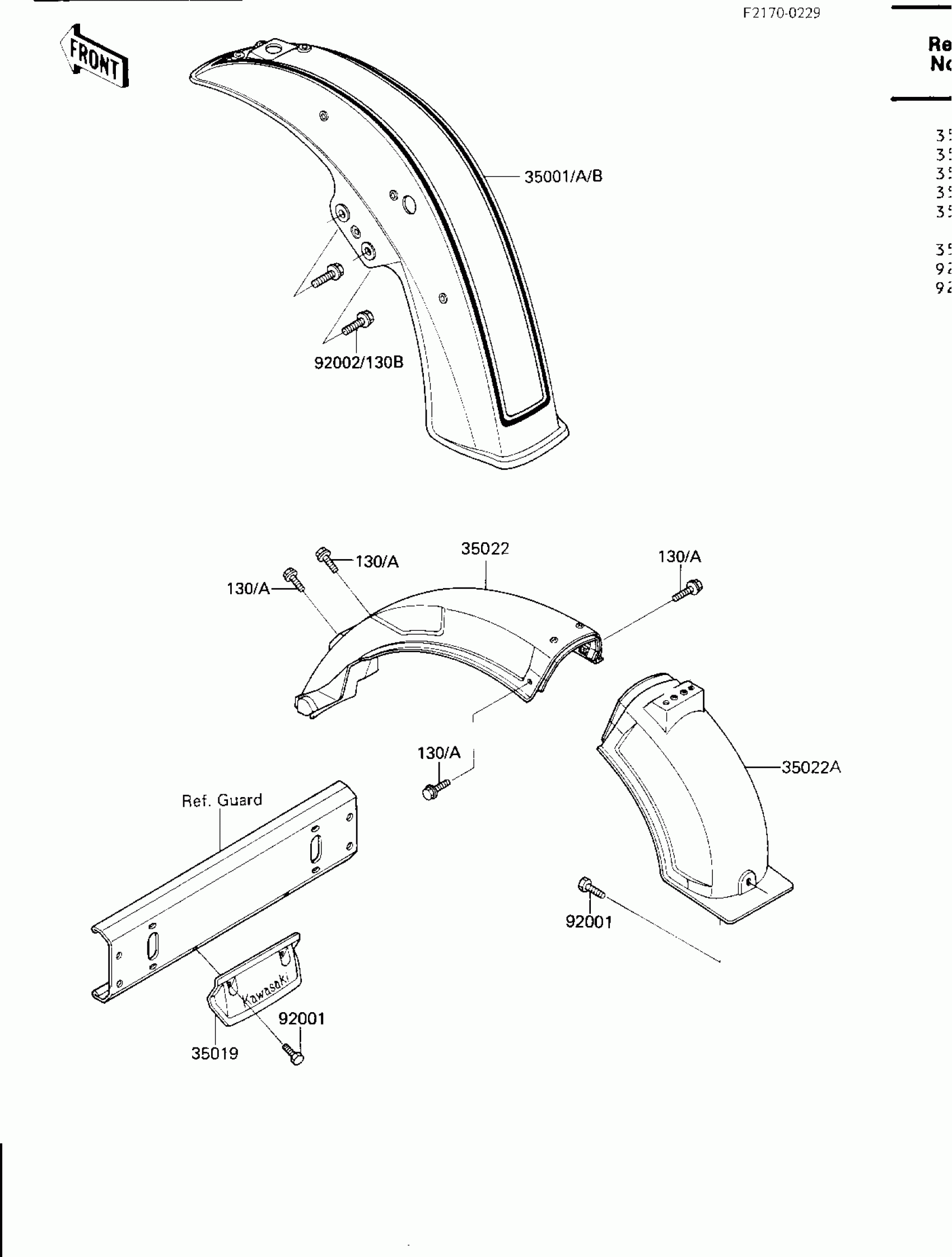

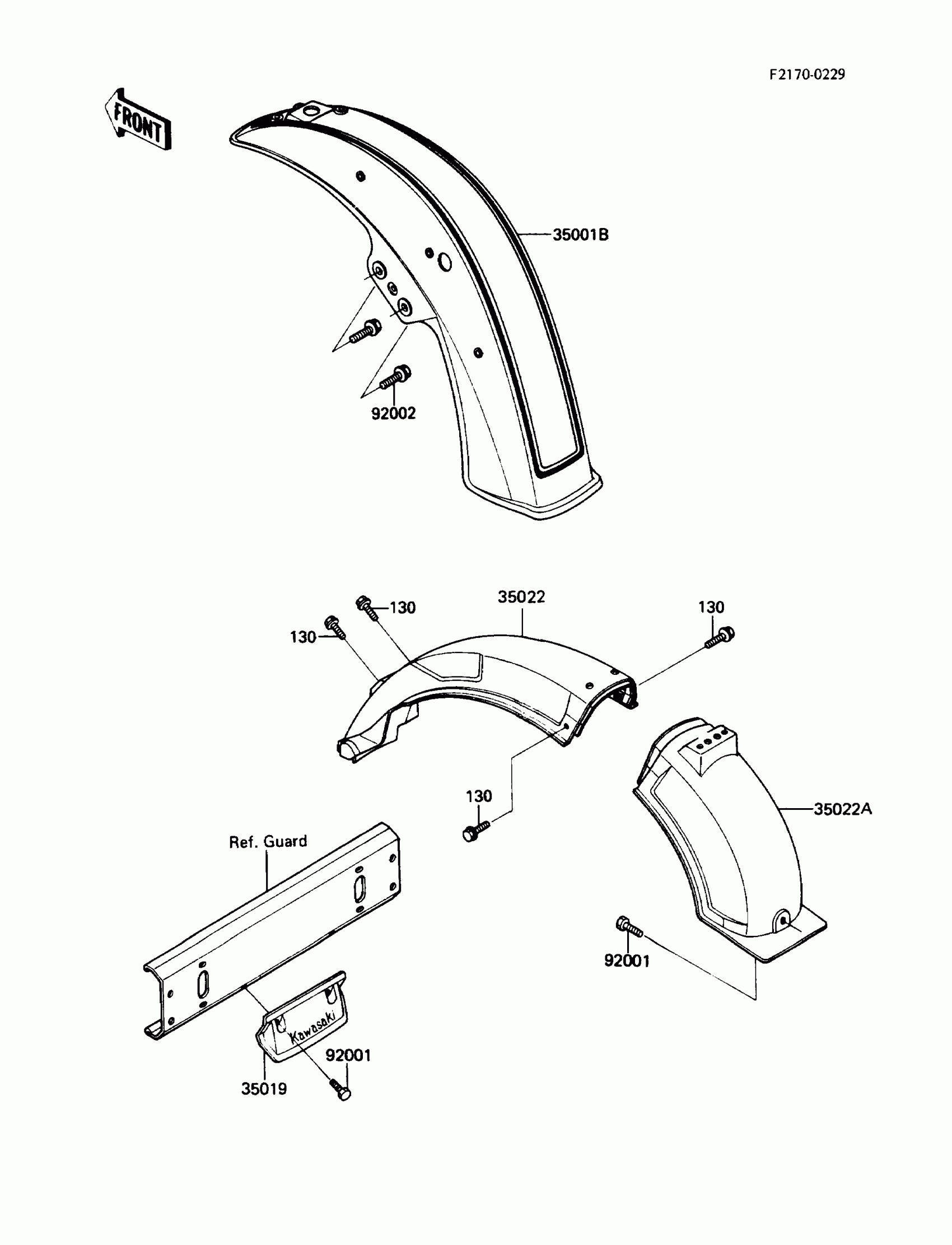

1986 Kawasaki Voyager Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35001B

1

$121.33

In stock

35019

FLAP,REAR GUARD

35019-1108

1

$135.31

In stock

35022

FENDER-COMP-REAR

35022-1116

1

$367.90

In stock

35022A

1

$214.07

In stock

92001

BOLT,UPSET-WP,6X12

92002-1884

1
Out of stock

92002

BOLT,FLANGED,8X16

92002-1200

1

$4.34

In stock

130A

BOLT-FLANGED,6X14

130D0614

1
Out of stock
