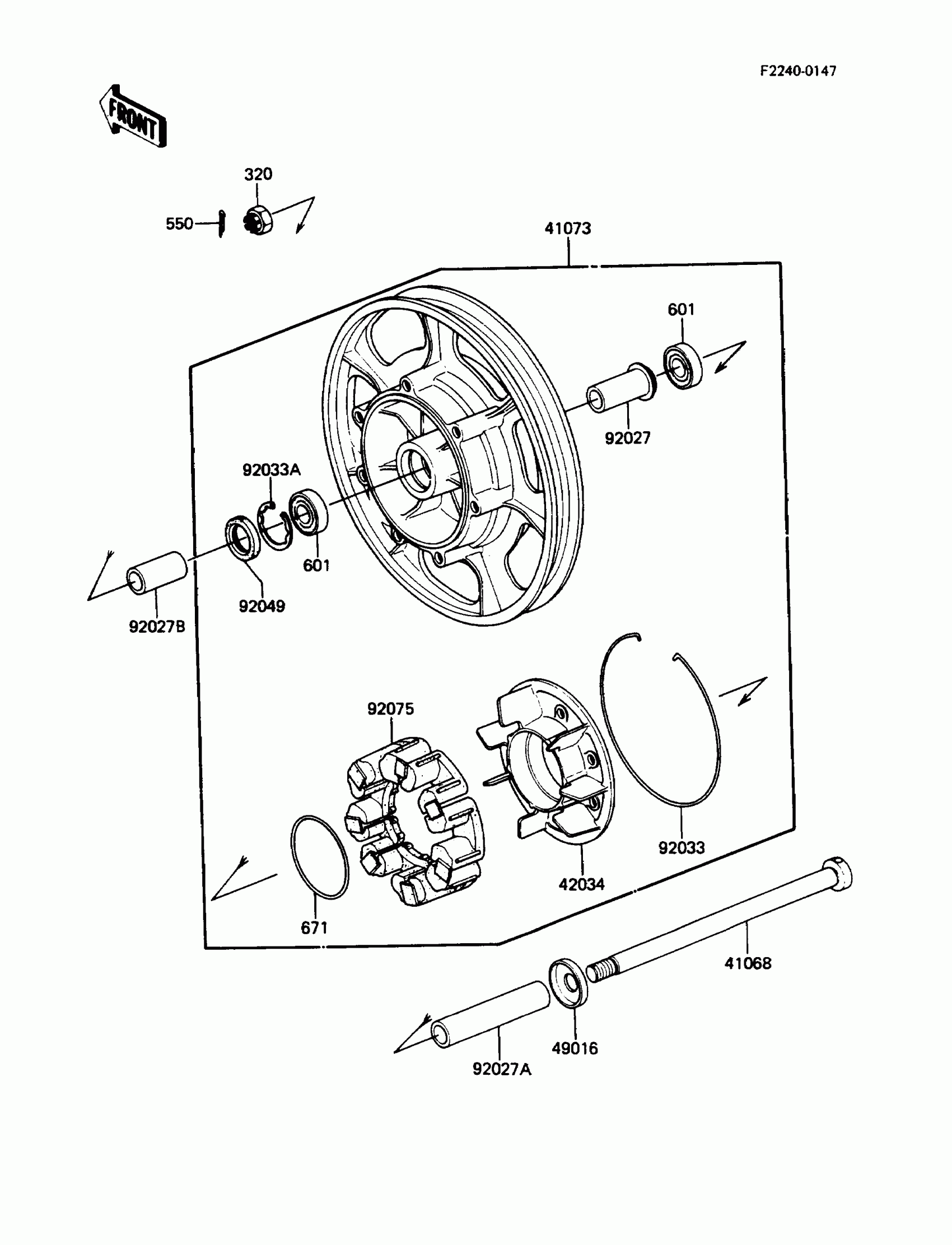

Find the part on the Rear Wheel/chain diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Voyager Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,RR,20X316

41068-1124

1

$70.47

In stock

41073

1

$823.68

In stock

42034

COUPLING,RR HUB

42034-1011

1

$283.07

In stock

49016

COVER-SEAL

49016-1019

1

$8.53

In stock

92027

1

$13.05

In stock

92027A

COLLAR,20.2X28X89

92027-1553

1

$30.75

In stock

92027B

COLLAR,20X28X42

92027-1554

1
Out of stock

92033

RING-SNAP

92033-1019

1

$15.64

In stock

92033A

RING-SNAP,52MM

92033-1043

1

$6.41

In stock

92049

SEAL-OIL,28X52X5

92049-1061

1
Out of stock

92075

DAMPER,SHOCK,RR HUB

92075-1121

1

$144.96

In stock

320

NUT-CASTLE,18MM

320B1800

1

$3.49

In stock

550

1

$1.81

In stock

601

BEARING-BALL,#6304ZZC3

601B6304ZZ

1
Out of stock

671

O RING,80MM

671B2580

1

$5.45

In stock
