1986 Kawasaki Voyager Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

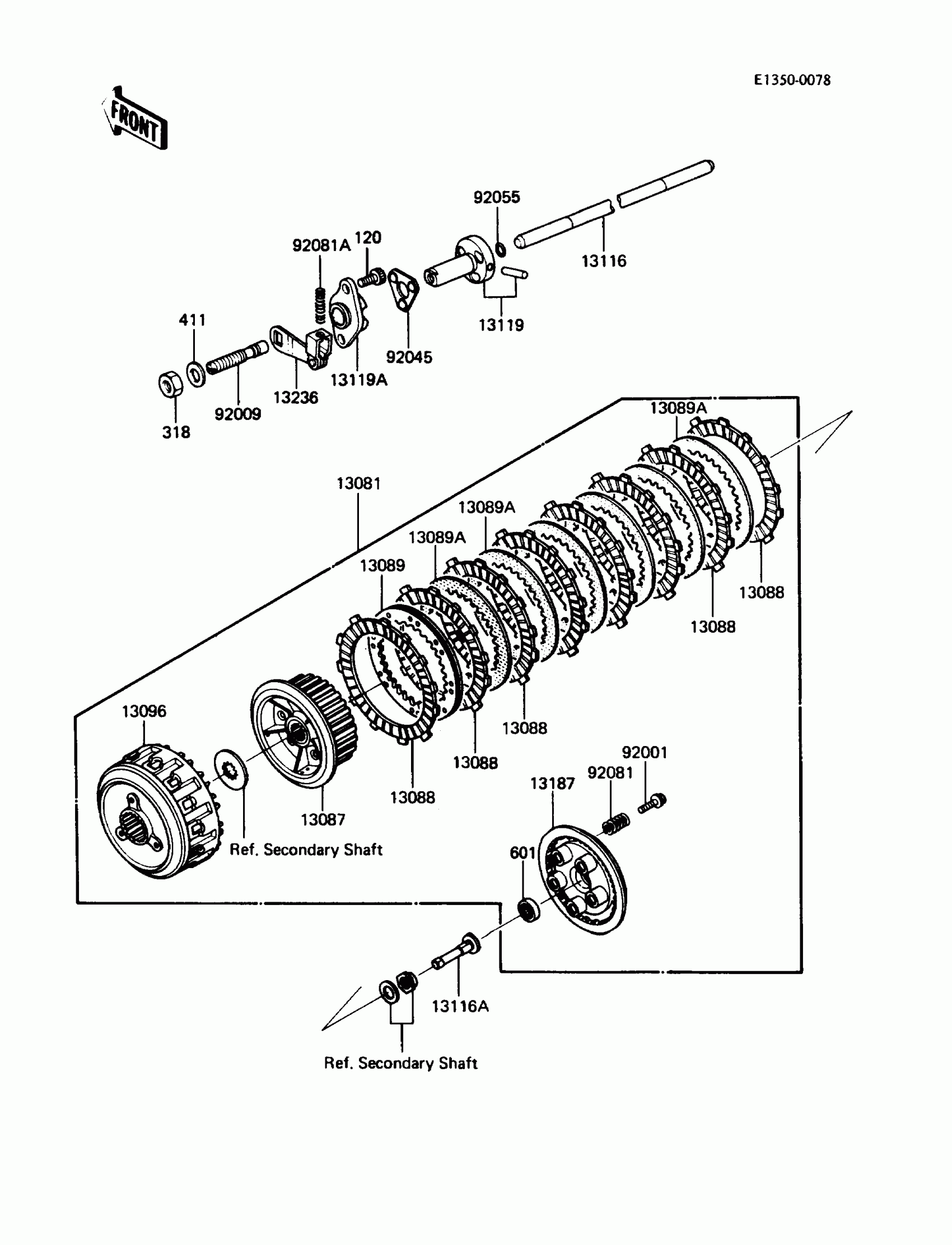

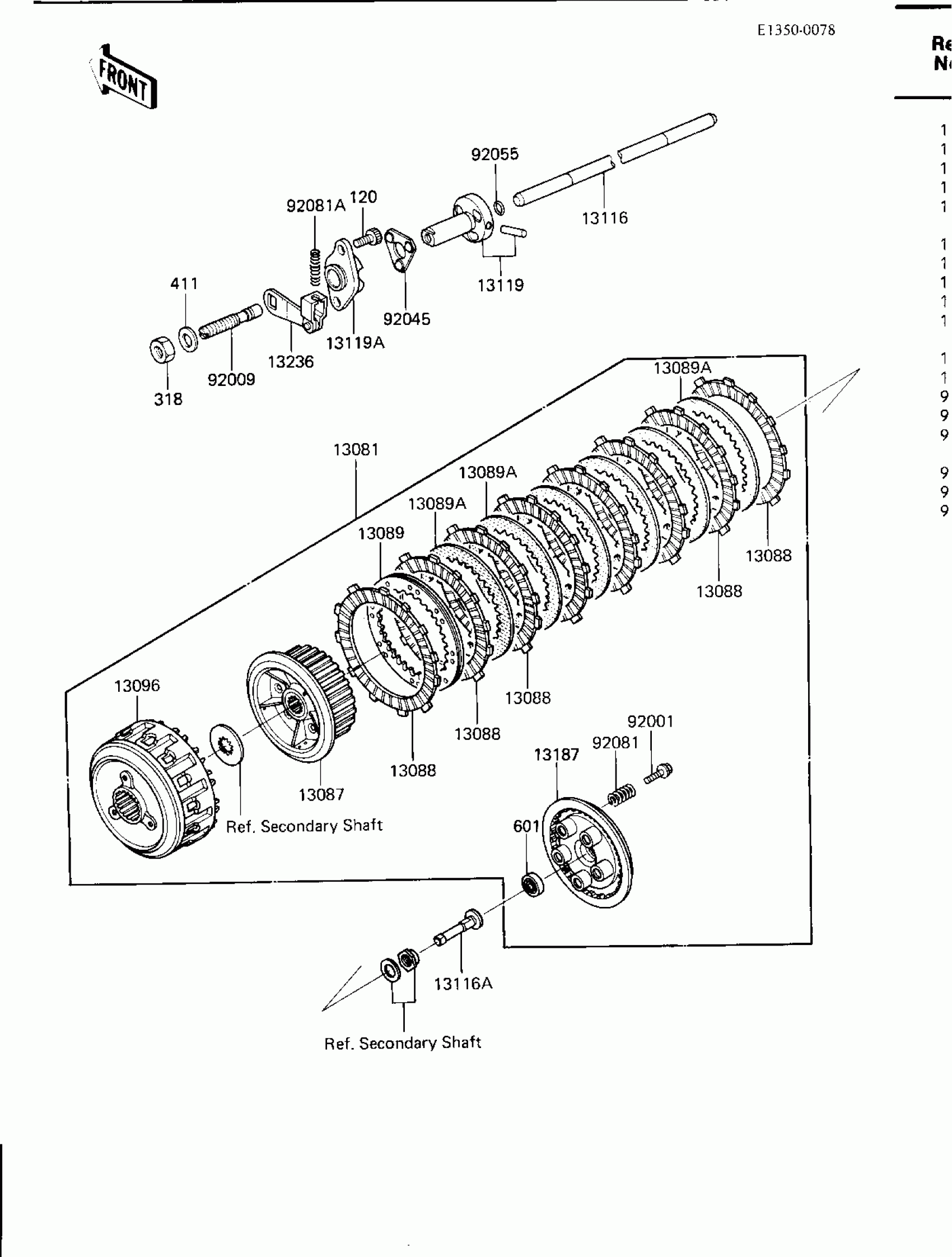

1986 Kawasaki Voyager Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13081

CLUTCH-ASSY

13081-1172

1
Out of stock

13087

HUB-CLUTCH

13087-1055

1
Out of stock

13088

PLATE-FRICTION

13088-1018

1

$18.60

In stock

13089

PLATE-CLUTCH

13089-1056

1
Out of stock

13089A

PLATE-CLUTCH

13089-1057

1
Out of stock

13096

HOUSING-CLUTCH

13096-1059

1
Out of stock

13116

ROD-PUSH,CLUTCH

13116-1050

1
Out of stock

13116A

ROD-PUSH

13116-1108

1
Out of stock

13119

CAM-RELEASE,CLUTCH,INNER

13119-1007

1
Out of stock

13119A

CAM-RELEASE,CLUTCH,OUTER

13119-1008

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1015

1
Out of stock

13236

LEVER-COMP,CLUTCH RELEASE

13236-1055

1
Out of stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92009

SCREW,8MM

92009-1052

1
Out of stock

92045

1

$9.75

In stock

92055

O RING,5MM

670B1505

1

$2.49

In stock

92081

SPRING,CLUTCH

92081-1033

1

$5.88

In stock

92081A

SPRING,COIL,9.7X95

92081-1532

1
Out of stock

120

BOLT-SOCKET,6X14

120P0614

1
Out of stock

318

1

$0.63

In stock

318

1

$0.63

In stock

411

WASHER PLAIN 8MM

411B0800

1
Out of stock

601

1

$12.85

In stock
