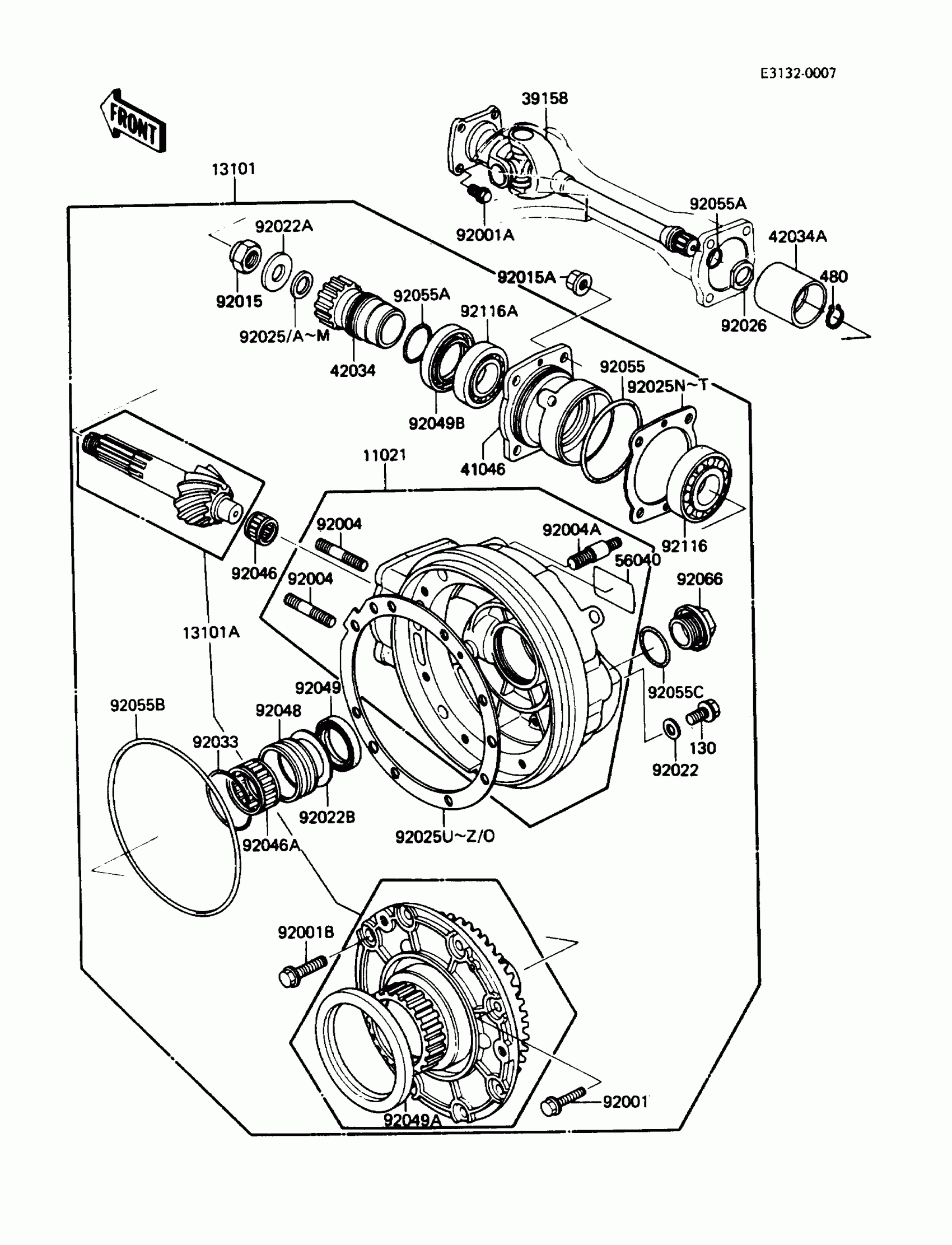

Find the part on the Drive Shaft/final Gear diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Voyager Drive Shaft/final Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11021

CASE-ASSY,FINAL GEAR,NO.2 GOLD

11021-1019-F6

1
Out of stock

13101

GEAR-ASSY,FINAL NO.2 GOLD

13101-1033-F6

1
Out of stock

13101A

GEAR-ASSY,BEVEL,RR

13101-5041

1
Out of stock

39158

SHAFT-ASSY-DRIVE

39158-1008

1
Out of stock

41046

HOUSING-BEARING,FINAL

41046-1020

1
Out of stock

42034

COUPLING,PROPELLER SHAFT,INNER

42034-1023

1
Out of stock

42034A

COUPLING,PROPELLER SHAFT,OUTER

42034-1037

1
Out of stock

56040

LABEL-WARNING,OIL

56040-1047

1
Out of stock

92001

BOLT,FLANGED,8X28

92001-1095

1
Out of stock

92001A

BOLT,FLANGED,12X15

92001-1139

1
Out of stock

92001B

BOLT,10X23

92001-1778

1
Out of stock

92004

STUD,10X31.5

92004-1021

1
Out of stock

92004A

STUD,RR SHOCKABSORBER

92004-1047

1
Out of stock

92015

NUT,16MM

92015-1059

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1415

1
Out of stock

92022

WASHER,8.2X16X1

92022-1086

1
Out of stock

92022A

WASHER,16X32X3.2

92022-1105

1
Out of stock

92022B

WASHER,39X49.5X1

92022-1294

1
Out of stock

92025

SHIM,T=1.30

92025-1214

—
Out of stock

92025A

SHIM,T=1.32

92025-1215

—
Out of stock

92025B

SHIM,T=1.34

92025-1216

—
Out of stock

92025C

SHIM,T=1.36

92025-1217

—
Out of stock

92025D

SHIM,T=1.38

92025-1218

—
Out of stock

92025E

SHIM,T=0.10

92025-1219

—
Out of stock

92025F

SHIM,T=0.20

92025-1220

—
Out of stock

92025G

SHIM,T=0.30

92025-1221

—
Out of stock

92025H

SHIM,T=0.50

92025-1222

—
Out of stock

92025I

SHIM,T=0.60

92025-1223

—
Out of stock

92025J

SHIM,T=0.70

92025-1224

—
Out of stock

92025K

SHIM,T=0.80

92025-1225

—
Out of stock

92025L

SHIM,T=0.90

92025-1226

—
Out of stock

92025M

SHIM,T=1.00

92025-1227

—
Out of stock

92025N

SHIM,T=0.10

92025-1388

—
Out of stock

92025O

SHIM,T=0.15

92025-1389

—
Out of stock

92025P

SHIM,T=0.20

92025-1390

—
Out of stock

92025Q

SHIM,T=0.30

92025-1391

—
Out of stock

92025R

SHIM,T=0.60

92025-1392

—
Out of stock

92025S

SHIM,T=0.90

92025-1393

—
Out of stock

92025T

SHIM,T=1.20

92025-1394

—
Out of stock

92025U

SHIM,T=0.10

92025-1625

—
Out of stock

92025V

SHIM,T=0.15

92025-1626

—
Out of stock

92025W

SHIM,T=0.20

92025-1627

—
Out of stock

92025X

SHIM,T=0.30

92025-1628

—
Out of stock

92025Y

SHIM,T=0.60

92025-1629

—
Out of stock

92025Z

SHIM,T=0.90

92025-1630

—
Out of stock

920250

SHIM,T=1.20

92025-1631

—
Out of stock

92026

SPACER,26.2X36X2

92026-1085

1
Out of stock

92033

RING-SNAP,52MM

92033-1074

1
Out of stock

92046

BEARING-NEEDLE,K18X25X17

92046-1056

1
Out of stock

92046A

BEARING-NEEDLE,KTV384620E01 C3

92046-1057

1
Out of stock

92048

RACE,ORT465021E01

92048-1019

1
Out of stock

92049

SEAL-OIL,S-35477HS

92049-1025

1
Out of stock

92049A

SEAL-OIL,S-901159HS

92049-1026

1
Out of stock

92049B

SEAL-OIL,SC32558

92049-1082

1
Out of stock

92055

RING-O,67MM

92055-1032

1
Out of stock

92055A

RING-O,ID=32.7

92055-1037

1
Out of stock

92055B

RING-O,154X3

92055-1165

1
Out of stock

92055C

RING-O,35.8MM

92055-1281

1
Out of stock

92066

PLUG,36MM,NO.2 GOLD

92066-1006-F6

1
Out of stock

92116

BEARING-ROLLER,4T30305C

92116-1002

1
Out of stock

92116A

BEARING-ROLLER,4T30205

92116-1003

1
Out of stock

130

BOLT-FLANGED,8X12

130B0812

1
Out of stock

480

CIRCLIP-TYPE-C,26MM

480J2600

1
Out of stock
